Square D™ 9080FB3621R TERMINAL BLOCK FUSE
Starters
367146
MFG #: 9080FB3621R
Square D™
117.00000
/ ea

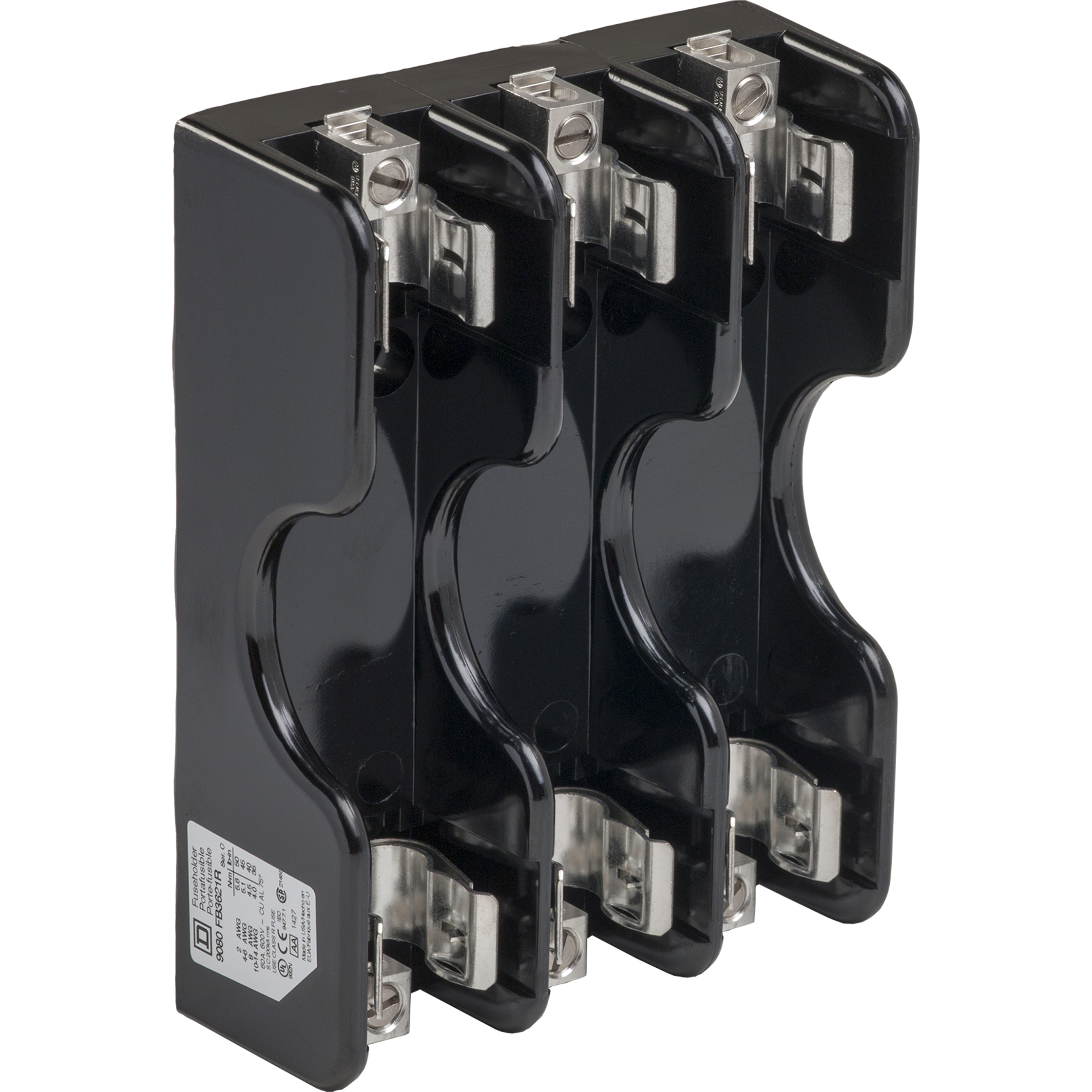

Square D 9080FB3621R TERMINAL BLOCK FUSEHOLDER 600V 60A,150 deg.C,600V,60A,Box Lug #14 to #2 AWG (Cu/Al),General Purpose Phenolic,R,R 1-1/16 x 5-1/2 Inches,UL Listed File E70747 CCN IZLT - CSA Certified File LR70360,fuse holder,surface mount
- Brochure URL - e9db7cd0f86383283a3e4ff115b3774da5eb7d05.pdf(Brochure URL)
- Catalog URL - Square_D_9080FB1611M_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0806601-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- ROHS Compliance URL - Square_D_9080FB3621R_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_MG34D0HW8NQSFPC6.pdf(Spec Sheet URL)
- Spec Sheet URL - 2875353805540a5c4e34a71982d857c10d3fe675.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Bulletin URL - cf57f551292bfed3bee2fd92787f7a3f0929f473.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_BKIDQVHGC4R7OJ9A.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_BX9C8K0VTM1PSJUO.zip(Tech Drawing URL)
- Tech Drawing URL - d7a15a0a189d6350bd514f1d55c35314b0b2b03c(Tech Drawing URL)
- Applications
- Features
| 1.0625 x 5.5 in;R |
| All class H, R and J fuseholders have reinforced fuse clips |
| Versatility, ease of use |
| Labor savings |
| Enhanced panel design |
| This family of fuseholders can be used to protect control circuits and equipment in control panels |
| General purpose phenolic |
| Terminal tightening torque - lugs 50 lbf.in for AWG 3 to 2 wire copper or aluminum, lugs 45 lbf.in for AWG 6 to 4 wire copper or aluminum, lugs 40 lbf.in for AWG 8 wire copper or aluminum, lugs 35 lbf.in for AWG 12 to 10 wire copper or aluminum and lugs 35 lbf.in for AWG 14 wire copper |
