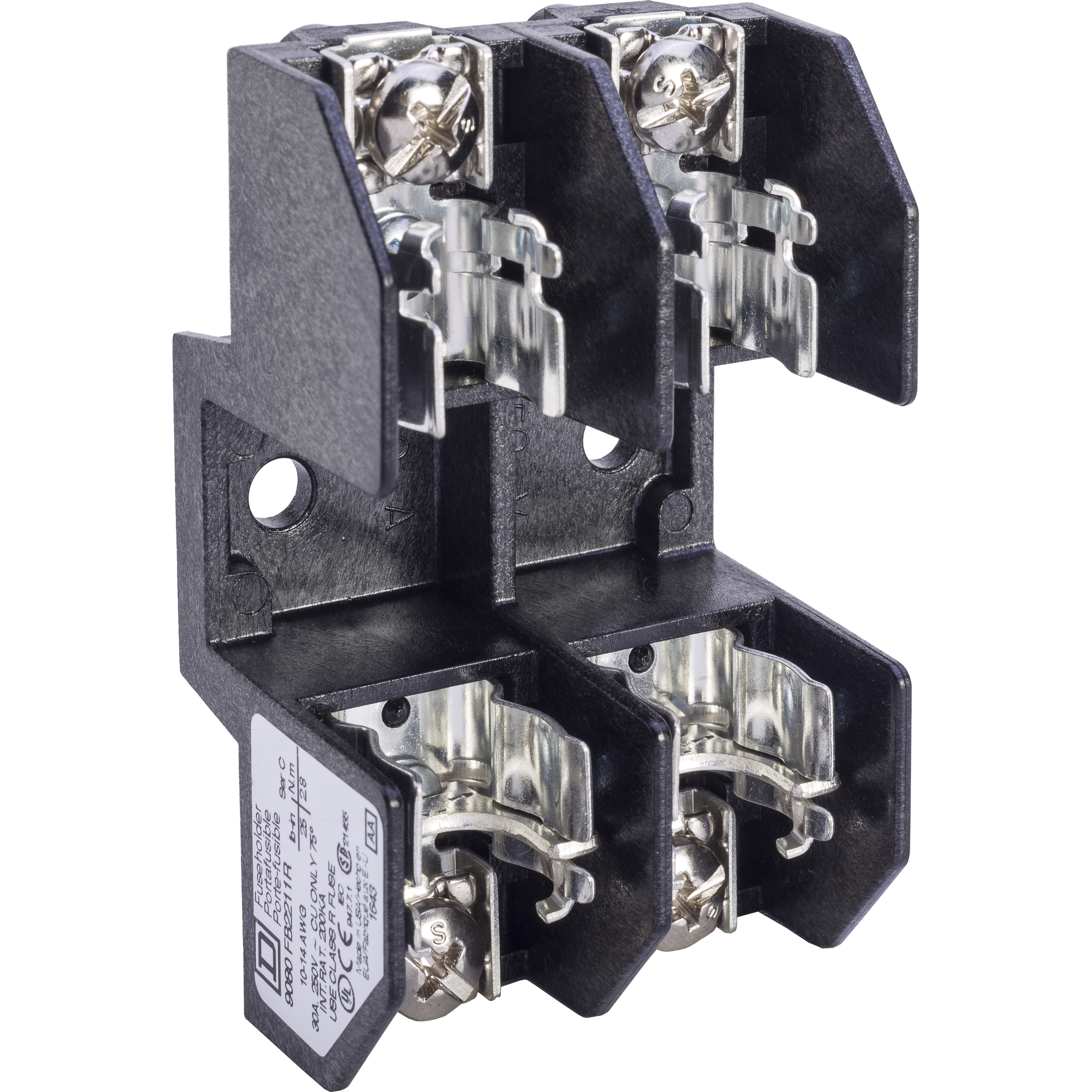

Square D™ 9080FB2211R TERMINAL BLOCK FUSE
SKU210668
MFGR #9080FB2211R
Your Cost: $33.84/ea
Square D 9080FB2211R TERMINAL BLOCK FUSEHOLDER 250V 30A,125 deg.C,250V,30A,High Impact Thermoplastic,Pressure Wire #14 to #10 AWG (Cu),R,R 9/16 x 2 Inches,UL Listed File E70747 CCN IZLT - CSA Certified File LR70360,fuse holder,surface mount
Square D 9080FB2211R TERMINAL BLOCK FUSEHOLDER 250V 30A,125 deg.C,250V,30A,High Impact Thermoplastic,Pressure Wire #14 to #10 AWG (Cu),R,R 9/16 x 2 Inches,UL Listed File E70747 CCN IZLT - CSA Certified File LR70360,fuse holder,surface mount
Alternate Catalog Number 9080FB2211R Amperage Rating 30 A Application 0.5625 x 2 in;R ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080FB2211R Class R Connection AWG 14...AWG 10 COPPER OR ALUMINIUM,PRESSURE WIRE CLAMP,SCREW TERMINALS 25 LBF.IN AWG 14...AWG 10 COPPER Connection Type Pressure Wire Clamp Country of Origin US Currency USD Depth 1.38 in Dimensions 1.91 in W x 1.38 in D x 3 in H EU RoHS Indicator Y Fuse Diameter 9/16 in Fuse Length 2 in Gross Volume Per Pack 7.98 Gross Volume per Pack Metric 130.77 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1750 lb Gross Weight per Pack Metric 77.11 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536904000 Height 3.5560 in Height [Metric] 3.5560 cm Item Group 21701 Length 7.6200 in Length [Metric] 7.6200 cm Manufacturer Schneider Electric Material Thermoplastic block Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371703&lang=en-us Mounting Surface Mount Mounting Type Surface Number Of Poles 2 Operating Temperature -40-257 A°F Returnable Y Size 1.38 IN,1.91 IN,3 IN Standard CE-UL LISTED FILE E40747 CCN IZLT-CSA FILE 70360 CLASS 6225 01 Stock Status NONSTOCK Suitable For Use With Thermoplastic Temperature Rating -40 to 257 °F Type Type FB UNSPSC 39121624 UPC 11 78590109777 UPC 12 785901097778 Voltage Rating 250 VAC Warranty Description Contractual Warranty:18 months Width 4.8260 in Width [Metric] 4.8260 cm Wire Size #14 to 10 AWG Copper 0.5625 x 2 in;R All class H, R and J fuseholders have reinforced fuse clips Versatility, ease of use Labor savings Enhanced panel design This family of fuseholders can be used to protect control circuits and equipment in control panels High impact thermoplastic Screw terminals 25 lbf.in for AWG 14 to 10 wire copper terminal tightening torque
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080FB2211R |
| Amperage Rating | 30 A |
| Application | 0.5625 x 2 in;R |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080FB2211R |
| Class | R |
| Connection | AWG 14...AWG 10 COPPER OR ALUMINIUM,PRESSURE WIRE CLAMP,SCREW TERMINALS 25 LBF.IN AWG 14...AWG 10 COPPER |
| Connection Type | Pressure Wire Clamp |
| Country of Origin | US |
| Currency | USD |
| Depth | 1.38 in |
| Dimensions | 1.91 in W x 1.38 in D x 3 in H |
| EU RoHS Indicator | Y |
| Fuse Diameter | 9/16 in |
| Fuse Length | 2 in |
| Gross Volume Per Pack | 7.98 |
| Gross Volume per Pack Metric | 130.77 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1750 lb |
| Gross Weight per Pack Metric | 77.11 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 3.5560 in |
| Height [Metric] | 3.5560 cm |
| Item Group | 21701 |
| Length | 7.6200 in |
| Length [Metric] | 7.6200 cm |
| Manufacturer | Schneider Electric |
| Material | Thermoplastic block |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371703&lang=en-us |
| Mounting | Surface Mount |
| Mounting Type | Surface |
| Number Of Poles | 2 |
| Operating Temperature | -40-257 A°F |
| Returnable | Y |
| Size | 1.38 IN,1.91 IN,3 IN |
| Standard | CE-UL LISTED FILE E40747 CCN IZLT-CSA FILE 70360 CLASS 6225 01 |
| Stock Status | NONSTOCK |
| Suitable For Use With | Thermoplastic |
| Temperature Rating | -40 to 257 °F |
| Type | Type FB |
| UNSPSC | 39121624 |
| UPC 11 | 78590109777 |
| UPC 12 | 785901097778 |
| Voltage Rating | 250 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.8260 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #14 to 10 AWG Copper |
| 0.5625 x 2 in;R |
| All class H, R and J fuseholders have reinforced fuse clips |
| Versatility, ease of use |
| Labor savings |
| Enhanced panel design |
| This family of fuseholders can be used to protect control circuits and equipment in control panels |
| High impact thermoplastic |
| Screw terminals 25 lbf.in for AWG 14 to 10 wire copper terminal tightening torque |
