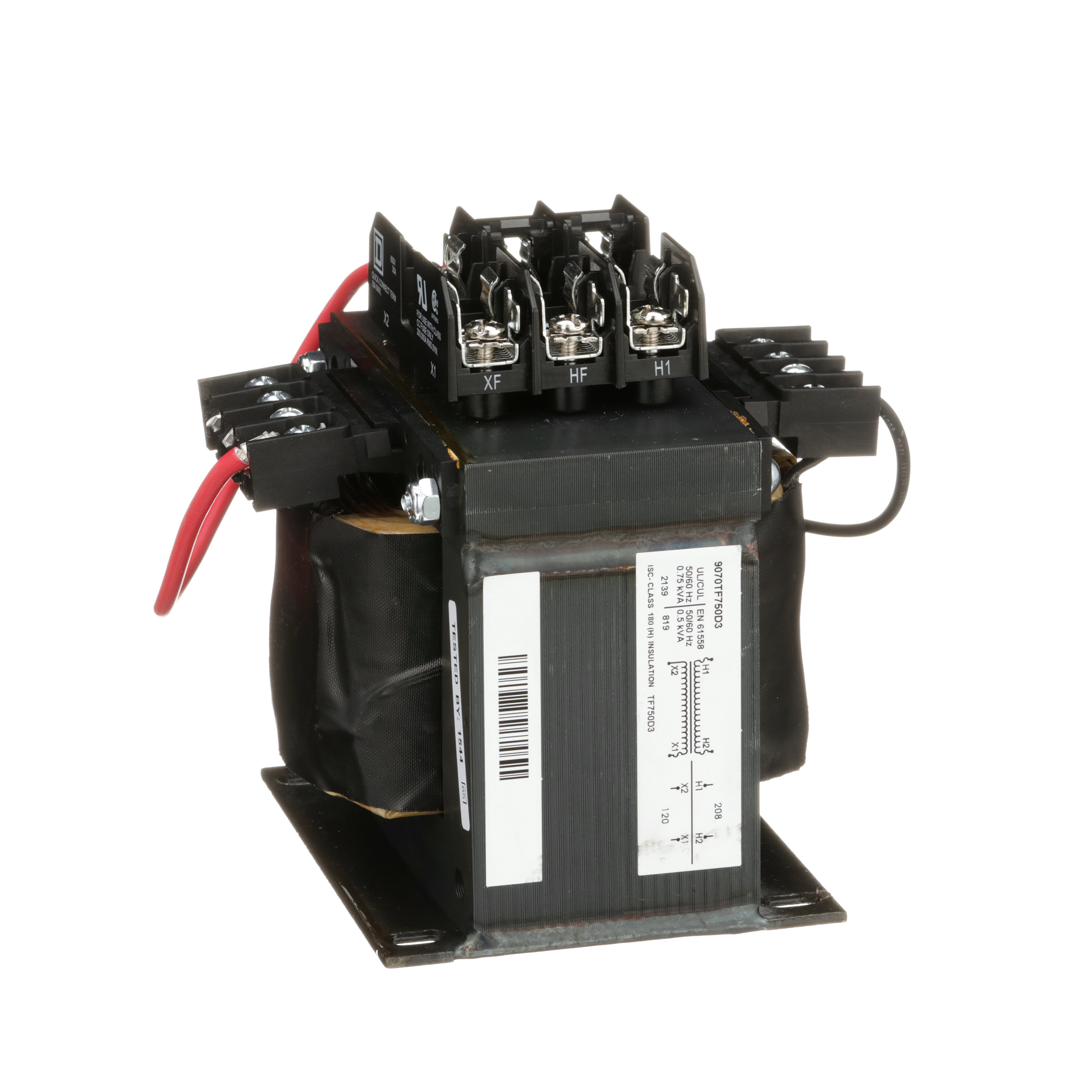

Square D™ 9070TF750D3 Type TF Open Style Control Transformer, 208 VAC Primary, 120 VAC Secondary, 750 VA, 50/60 Hz
Control Transformers
583078
MFG #: 9070TF750D3
Square D™
1171.00000
/ ea
Square D 9070TF750D3 TRANSFORMER CONTROL 750VA 208V-120V,0.41 x 1.50 Inch (Class CC) Primary Fuse Holders,1-Phase,115 Degrees C,120V,180 Degrees C,208V,750VA,Copper,Develop to help customers comply with UL Standard 508 and NEC 450,Industrial Control Transformer,Open,Panel,Screw Clamp,UL Listed, CSA, CE Marked
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8132611360Den&ext=webp(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_029c12af1a703576ffe19f403f1492d2c42bc2427b3f41968acaab12e1057c40.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5940.dwf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5940.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_28P5ZSQIKJEOXC41.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_7E1FTBY2Q5IZ4KGN.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_CGEN7Z18YOTPV29X.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_DQEU97BF3NXI0A2T.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Applications
- Features
| DEVELOP TO HELP CUSTOMERS COMPLY WITH UL STANDARD 508 AND NEC 450 |
| 0.41 X 1.50 INCH (CLASS CC) PRIMARY FUSE HOLDERS |
| Factory installed fuse blocks are pre-wired and mounted on top of the transformer |
| This design frees up space normally used for separate fuse blocks |
| Interchangeable with type T transformer except for their increased height |
| 0.41 x 1.5 in (class CC) primary fuse holders |
| Copper winding |
