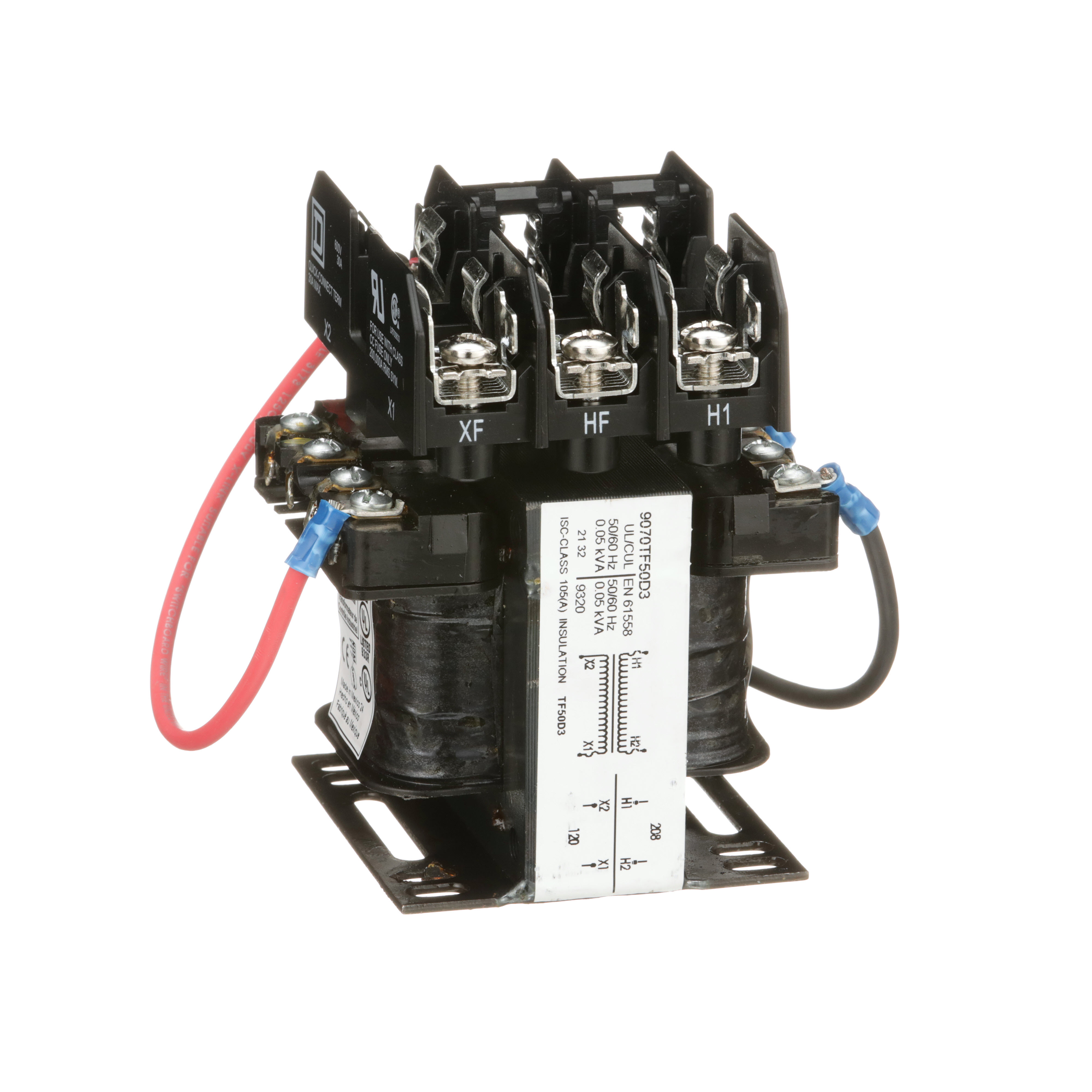

Square D™ 9070TF50D3 Type TF Open Style Control Transformer, 208 VAC Primary, 120 VAC Secondary, 0.05 kVA, 50/60 Hz
Control Transformers
191422
MFG #: 9070TF50D3
Square D™
222.00000
/ ea
Square D 9070TF50D3 TRANSFORMER CONTROL 50VA 208V-120V,0.41 x 1.50 Inch (Class CC) Primary Fuse Holders,1-Phase,105 deg.C,120V,208V,50VA,55 Degrees C,Copper,Develop to help customers comply with UL Standard 508 and NEC 450,Industrial Control Transformer,Open,Panel,Screw Clamp,UL Listed, CSA, CE Marked
- 18 Months(WEB WARRANTY URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5913.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=39000-285-01.pdf(Install Instructions 1 URL)
- Spec Sheet URL - bdb48e456d57fe843328bdce0c765b1b86e9c072.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH BULLETIN URL - 08a5ccf679123fbf242e451d62f0818679b3980e.pdf(WEB TECH BULLETIN URL)
- WEB TECH DRAWING URL - a4f62a72d29504f9b073c5fdecb9575ce68d973b(WEB TECH DRAWING URL)
- Applications
- Features
| FSC1 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Copper winding |
