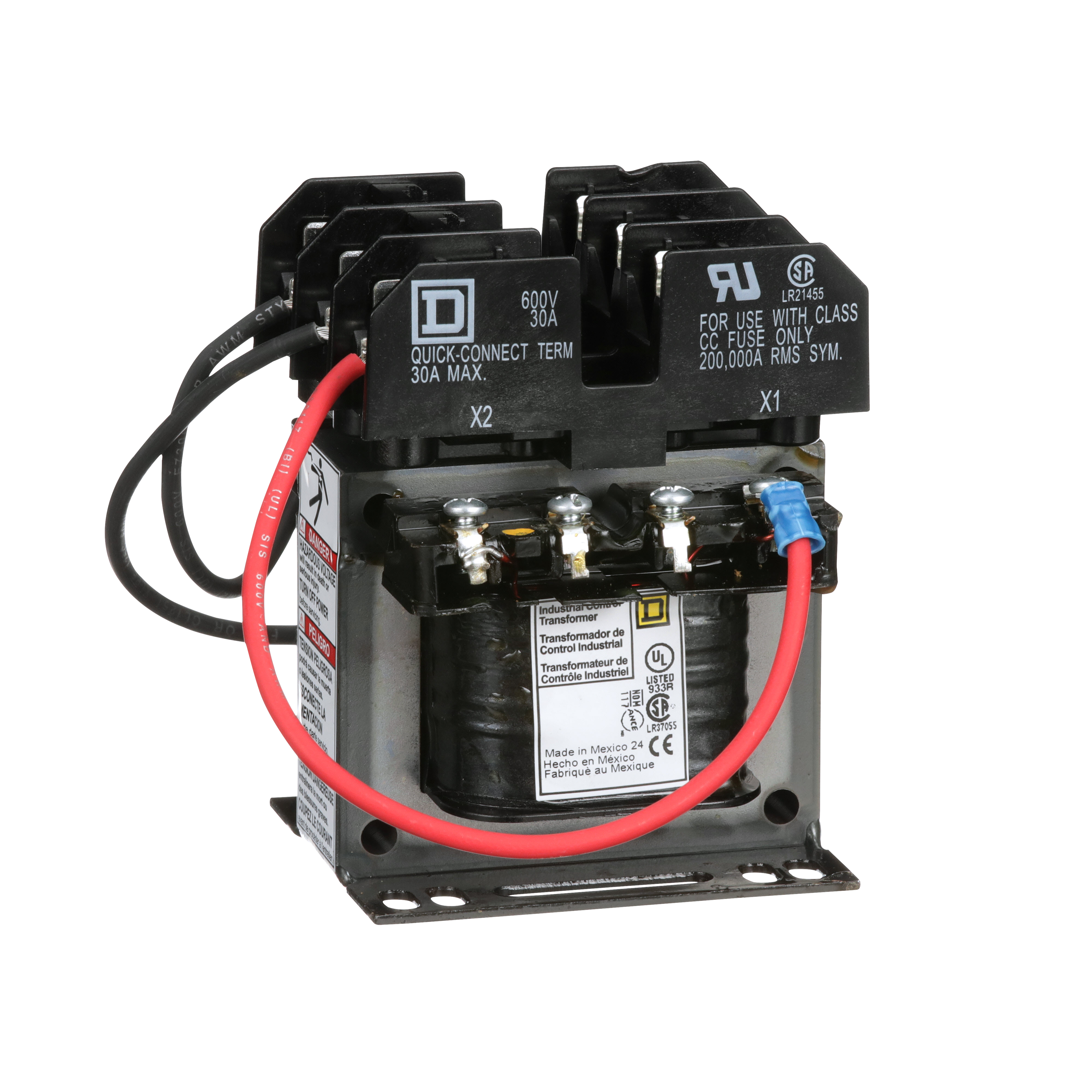

Square D™ 9070TF50D23 Type TF Open Style Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 50 VA
Control Transformers
100213
MFG #: 9070TF50D23
Square D™
222.00000
/ ea
Square D 9070TF50D23 TRANSFORMER CONTROL 50VA 120/240V-24V,0.41 x 1.50 Inch (Class CC) Primary Fuse Holders,1-Phase,105 deg.C,120x240V,24V,50VA,55 Degrees C,Copper,Develop to help customers comply with UL Standard 508 and NEC 450,Industrial Control Transformer,Open,Panel,Screw Clamp,UL Listed, CSA, CE Marked
- 18 months(WEB WARRANTY URL)
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5912.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=39000-285-01.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 98b13e2a33b7d7dd2c713033d7386672b9954bb3.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- WEB CATALOG 1 URL - Schneider_Electric_9070T1000D1_Catalog_1.pdf(WEB CATALOG 1 URL)
- WEB CATALOG URL - IDW_DOCUMENT_029c12af1a703576ffe19f403f1492d2c42bc2427b3f41968acaab12e1057c40.pdf(WEB CATALOG URL)
- WEB COMPLIANCE CERT URL - Schneider_Electric_9070TF50D23_Compliance_Certificate.pdf(WEB COMPLIANCE CERT URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH BULLETIN URL - 08a5ccf679123fbf242e451d62f0818679b3980e.pdf(WEB TECH BULLETIN URL)
- WEB TECH DRAWING URL - 61cabbbc06c944eeae543dc806871372906d96ff(WEB TECH DRAWING URL)
- Applications
- Features
| DEVELOP TO HELP CUSTOMERS COMPLY WITH UL STANDARD 508 AND NEC 450 |
| INDUSTRIAL CONTROL TRANSFORMER,SCREW CLAMP TERMINALS |
| Copper winding |
| 0.41 x 1.5 in (class CC) primary fuse holders |
| Stocked in a wide variety of sizes |
| Derives 120 or near 120 VAC control power from a wide variety of supply voltages |
| Compatible with Square D™ Finger-Safe™ covers |
| Compatible with Square D™ control power fuse kits |
| Competitively priced with other universal control power transformers on the market |
| 120x240 VAC primary voltage rating |
| 24 VAC secondary voltage rating |
