Square D™ 9070TF300D5 Type TF Industrial Open Style Control Transformer, 550/575/600 VAC Primary, 110/115/120 VAC Secondary, 300 VA Power Rating, 50/60 Hz, 1 Phase
Control Transformers
423534
MFG #: 9070TF300D5
Square D™
613.55000
/ ea

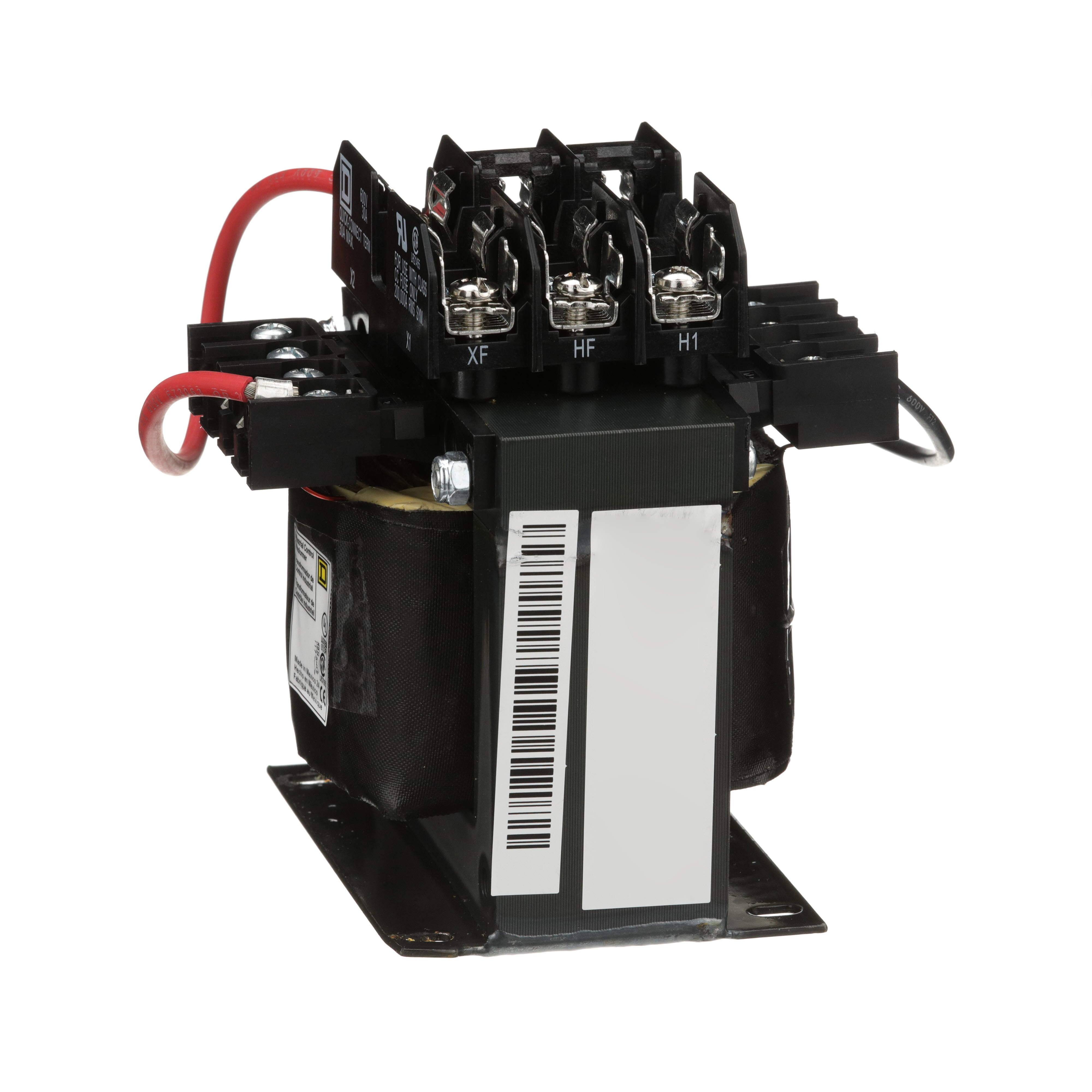

Square D™ Control Transformer, Type TF Industrial Open Style, 550/575/600 VAC Primary, 110/115/120 VAC Secondary, 300 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 130 deg C Insulation, Open Enclosure, 80 deg C, 5.1 in H x 4-1/2 in W x 4.7 in D Dimensions
- 360 Degree View URL - index.html?pid=11003&id=8132587360Den&ext=webp(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5931.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_C7Z9RQKS3DV8W2H0.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_I0FZGBXPYCWS9J53.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Applications
- Features
| Industrial Control Circuit Applications |
| 0.41 X 1.50 INCH (CLASS CC) PRIMARY FUSE HOLDERS |
| 120 x 240 VAC primary voltage |
| Copper winding |
| 0.41 x 1.5 in (class CC) primary fuse holders |
