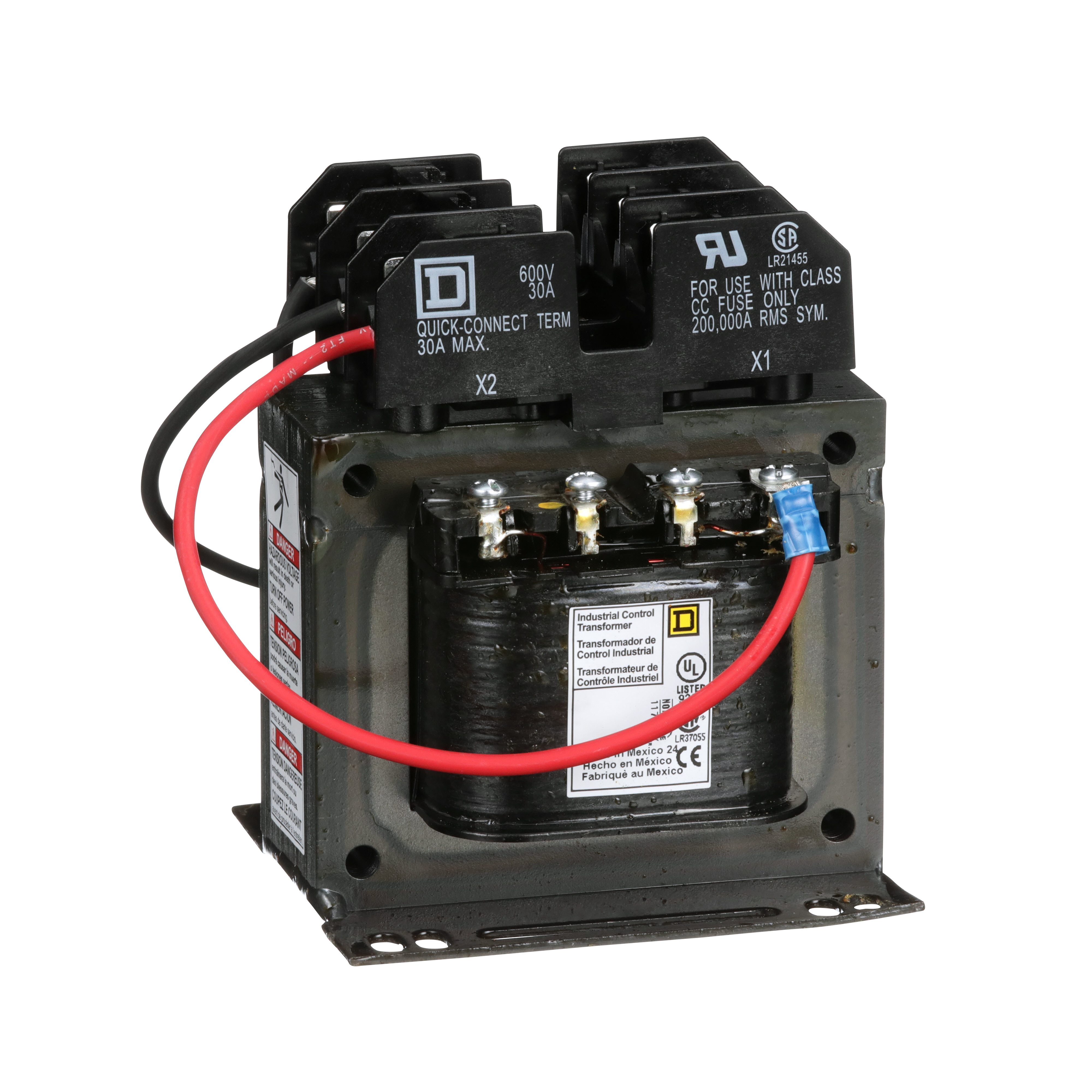

Square D™ 9070TF150D20 Type TF Open Style Control Transformer, 460 VAC Primary, 115 VAC Secondary, 150 VA, 50/60 Hz
Custom_Product_Images_Illustration
Square D™
Square D™ 9070TF150D20 Type TF Open Style Control Transformer, 460 VAC Primary, 115 VAC Secondary, 150 VA, 50/60 Hz
SKU288645
MFGR #9070TF150D20
Your Cost: $489.40/ea
Square D 9070TF150D20 TRFMR CONTROL 150VA 208/230/460V-115V,0.41 x 1.50 Inch (Class CC) Primary Fuse Holders,1-Phase,105 deg.C,115V,150VA,208/230/460V,55 Degrees C,Copper,Develop to help customers comply with UL Standard 508 and NEC 450,Industrial Control Transformer,Open,Panel,Screw Clamp,UL Listed, CSA, CE Marked
Square D 9070TF150D20 TRFMR CONTROL 150VA 208/230/460V-115V,0.41 x 1.50 Inch (Class CC) Primary Fuse Holders,1-Phase,105 deg.C,115V,150VA,208/230/460V,55 Degrees C,Copper,Develop to help customers comply with UL Standard 508 and NEC 450,Industrial Control Transformer,Open,Panel,Screw Clamp,UL Listed, CSA, CE Marked
Alternate Catalog Number 9070TF150D20 Application FSC1 ARRA Compliant N Buy American Compliant N Catalog Number 9070TF150D20 Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 4.5 in H x 3.75 in W x 3.59 in D Enclosure NOT RATED (OPEN DEVICE) Enclosure Type Open EU RoHS Indicator Y Gross Volume Per Pack 344.76 Gross Volume per Pack Metric 5649.58 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 6.2400 lb Gross Weight per Pack Metric 2.83 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 16.5100 in Height [Metric] 16.5100 cm Insulation Class 55 Item Group 16202 KVA Rating 150 VA,150 VA Length 19.8120 in Length [Metric] 19.8120 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454341&lang=en-us Mounting Panel Mounting Type Panel Returnable Y Standard CE-CSA FILE LR37055 GUIDE 184-N-90-UL LISTED FILE E61239 Substitute Product Catalog Number 9070FB2A Temperature Rating 55 °C Type Type TF UNSPSC 39121002 UPC 11 78590190527 UPC 12 785901905271 Warranty Description Contractual Warranty:18 months Width 17.2720 in Width [Metric] 17.2720 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 50/60 Hz Phase 1 pH Power Rating 150 VA Primary Voltage 208/230/460 VAC Secondary Voltage 115 VAC FSC1 INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS Copper windings Stocked in a wide variety of size Derives 120 or near 120 VAC control power from a wide variety of supply voltages Compatible with square D™ finger safe covers Compatible with square D™ control power fuse kits Competitively priced with other universal control power transformers on the market Consist of two primary fuse blocks and one secondary fuse block Factory installed fuse blocks are pre-wired and mounted on top of the transformer This design frees up space normally used for separate fuse blocks Interchangeable with type T transformer except for their increased height 0.41 x 1.5 in (class CC) primary fuse, copper winding, 105 deg C insulation temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9070TF150D20 |
| Application | FSC1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9070TF150D20 |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.5 in H x 3.75 in W x 3.59 in D |
| Enclosure | NOT RATED (OPEN DEVICE) |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 344.76 |
| Gross Volume per Pack Metric | 5649.58 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 6.2400 lb |
| Gross Weight per Pack Metric | 2.83 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Insulation Class | 55 |
| Item Group | 16202 |
| KVA Rating | 150 VA,150 VA |
| Length | 19.8120 in |
| Length [Metric] | 19.8120 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454341&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | Y |
| Standard | CE-CSA FILE LR37055 GUIDE 184-N-90-UL LISTED FILE E61239 |
| Substitute Product Catalog Number | 9070FB2A |
| Temperature Rating | 55 °C |
| Type | Type TF |
| UNSPSC | 39121002 |
| UPC 11 | 78590190527 |
| UPC 12 | 785901905271 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 17.2720 in |
| Width [Metric] | 17.2720 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 150 VA |
| Primary Voltage | 208/230/460 VAC |
| Secondary Voltage | 115 VAC |
| FSC1 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Copper windings |
| Stocked in a wide variety of size |
| Derives 120 or near 120 VAC control power from a wide variety of supply voltages |
| Compatible with square D™ finger safe covers |
| Compatible with square D™ control power fuse kits |
| Competitively priced with other universal control power transformers on the market |
| Consist of two primary fuse blocks and one secondary fuse block |
| Factory installed fuse blocks are pre-wired and mounted on top of the transformer |
| This design frees up space normally used for separate fuse blocks |
| Interchangeable with type T transformer except for their increased height |
| 0.41 x 1.5 in (class CC) primary fuse, copper winding, 105 deg C insulation temperature |
