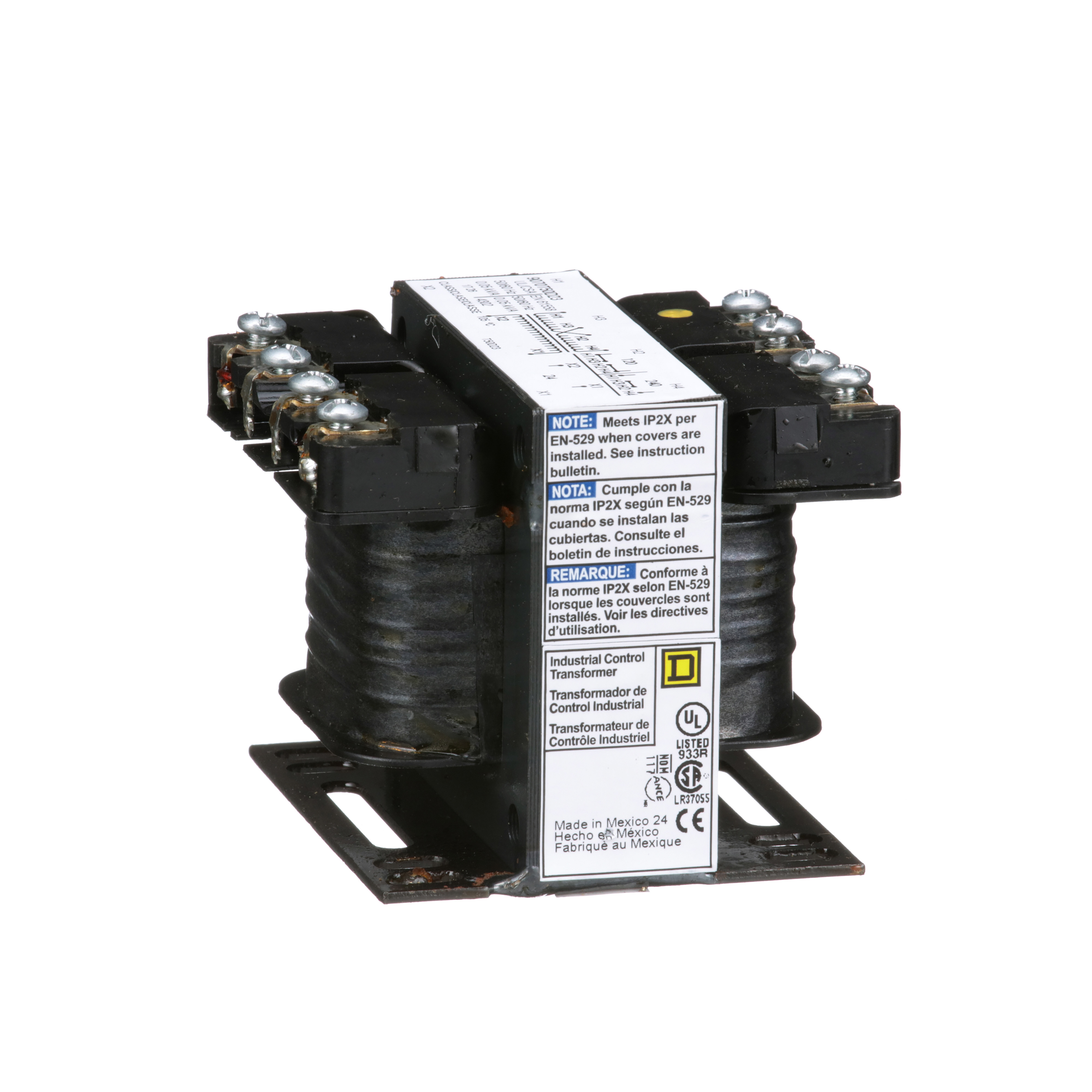

Square D™ 9070T50D23 Type T Industrial Open Style Control Transformer, 120/240 VAC Primary, 24 VAC Secondary
Custom_Product_Images_Illustration
Square D™ 9070T50D23 Type T Industrial Open Style Control Transformer, 120/240 VAC Primary, 24 VAC Secondary
SKU45292
MFGR #9070T50D23
Your Cost: $183.53/ea
Square D 9070T50D23 TRANSFORMER CONTROL 50VA 120/240V-24V,1-Phase,105 deg.C,120x240V,24V,50VA,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Square D 9070T50D23 TRANSFORMER CONTROL 50VA 120/240V-24V,1-Phase,105 deg.C,120x240V,24V,50VA,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Alternate Catalog Number 9070T50D23 Application FSC1 ARRA Compliant N Buy American Compliant N Catalog Number 9070T50D23 Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 2.58 in H x 3 in W x 3.09 in D Enclosure NOT RATED (OPEN DEVICE) Enclosure Type Open EU RoHS Indicator Y Gross Volume Per Pack 65.44 Gross Volume per Pack Metric 1072.30 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.5100 lb Gross Weight per Pack Metric 1.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 6.6800 in Height [Metric] 6.6800 cm Item Group 16200 KVA Rating 50 VA,50 VA Length 7.6200 in Length [Metric] 7.6200 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=453729&lang=en-us Mounting Panel Mounting Type Panel Number Of Phases 1 Returnable Y Standard UL LISTED FILE E61239-CE-CSA FILE LR37055 GUIDE 184-N-90 Substitute Product Catalog Number 9070FB2A Temperature Rating 55 °C Type Type T Industrial Open Style UNSPSC 39121002 UPC 11 78590190496 UPC 12 785901904960 Warranty Description Contractual Warranty:10 Years Width 7.8740 in Width [Metric] 7.8740 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 50/60 Hz Phase 1 pH Power Rating 50 VA Primary Voltage 120/240 VAC Secondary Voltage 24 VAC FSC1 INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS Stocked in a wide variety of sizes Derives 120 or near 120 VAC control power from a wide variety of supply voltages Compatible with Square D™ finger-safe® covers Compatible with Square D™ control power fuse kits Competitively priced with other universal control power transformers on the market Copper winding 120/240 VAC primary voltage rating 24 VAC secondary voltage rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9070T50D23 |
| Application | FSC1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9070T50D23 |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.58 in H x 3 in W x 3.09 in D |
| Enclosure | NOT RATED (OPEN DEVICE) |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 65.44 |
| Gross Volume per Pack Metric | 1072.30 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.5100 lb |
| Gross Weight per Pack Metric | 1.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 6.6800 in |
| Height [Metric] | 6.6800 cm |
| Item Group | 16200 |
| KVA Rating | 50 VA,50 VA |
| Length | 7.6200 in |
| Length [Metric] | 7.6200 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=453729&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Number Of Phases | 1 |
| Returnable | Y |
| Standard | UL LISTED FILE E61239-CE-CSA FILE LR37055 GUIDE 184-N-90 |
| Substitute Product Catalog Number | 9070FB2A |
| Temperature Rating | 55 °C |
| Type | Type T Industrial Open Style |
| UNSPSC | 39121002 |
| UPC 11 | 78590190496 |
| UPC 12 | 785901904960 |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 7.8740 in |
| Width [Metric] | 7.8740 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 50 VA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 24 VAC |
| FSC1 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Stocked in a wide variety of sizes |
| Derives 120 or near 120 VAC control power from a wide variety of supply voltages |
| Compatible with Square D™ finger-safe® covers |
| Compatible with Square D™ control power fuse kits |
| Competitively priced with other universal control power transformers on the market |
| Copper winding |
| 120/240 VAC primary voltage rating |
| 24 VAC secondary voltage rating |
