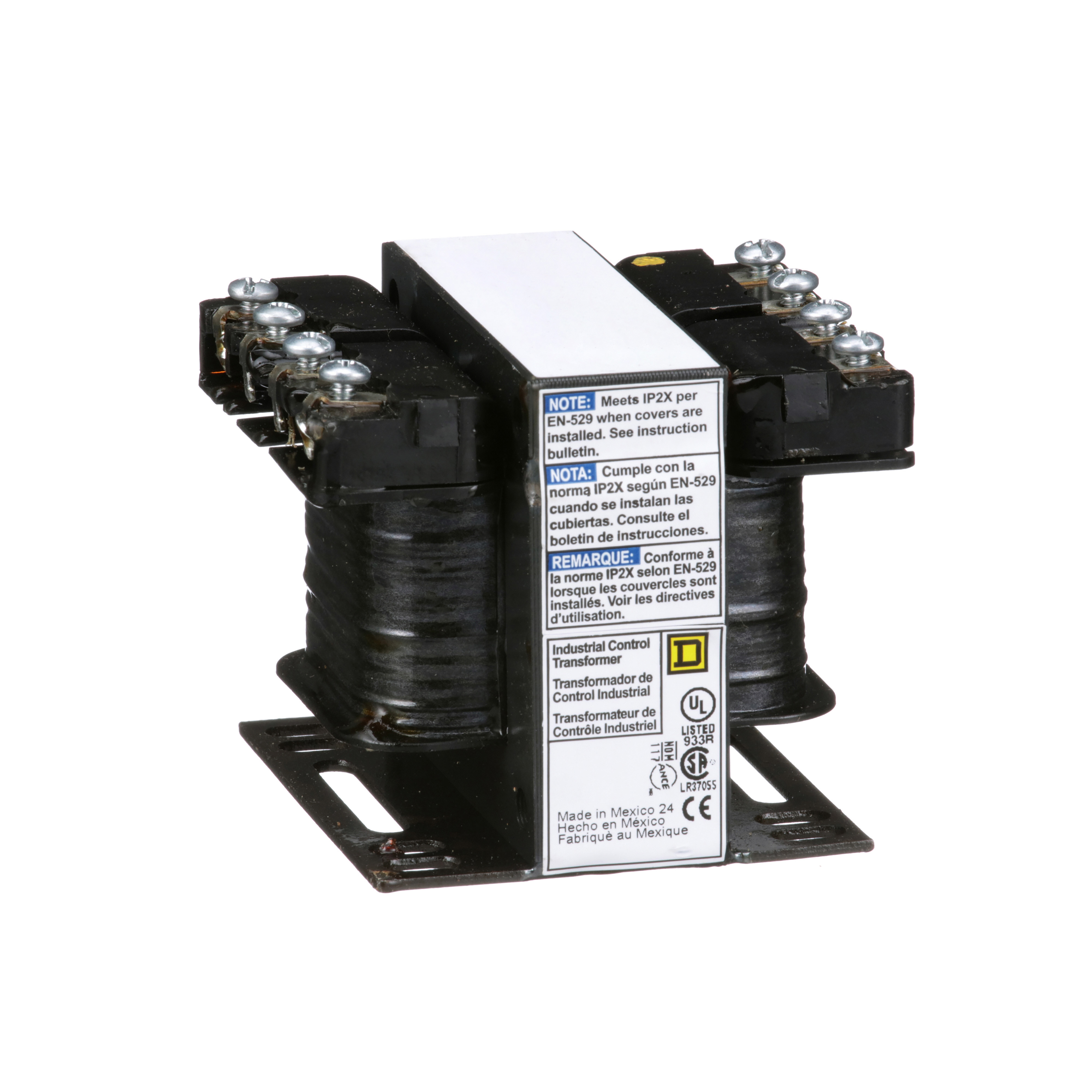

Square D™ 9070T25D1 Type T Open Style Control Transformer, 480 VAC Primary, 110/115/120 VAC Secondary, 25 VA, 50/60 Hz
Control Transformers
368693
MFG #: 9070T25D1
Square D™
134.00000
/ ea
Square D 9070T25D1 TRANSFORMER CONTROL 25VA 240/480V-120V,1-Phase,105 deg.C,120V or 115V or 110V,240x480V or 230x460V or 220x440V,25VA,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8132385360Den&ext=webp(360 Degree View URL)
- Brochure URL - 482202b17e9da3c7d6a61d89b7977d1d0715c6f6.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_029c12af1a703576ffe19f403f1492d2c42bc2427b3f41968acaab12e1057c40.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5839.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_VDWBG42Q1YALZUE7.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_7E1FTBY2Q5IZ4KGN.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_CAR6KTF7NP39E12X.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_DQ8JTHZ75XSGE9K3.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Applications
- Features
| FSC1 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Designed with low impedance windings for excellent voltage regulation |
| Can accommodate the high inrush current associated with contactor, starters, solenoid and relays |
| Comes with unmatched design innovations for top performance |
| Manufactured using the most advanced insulating material and is best choice if size and cost are of concern |
| Copper winding |
| 240/480, 230/460, 220/440 VAC primary voltage rating |
| 110/115/120 VAC secondary voltage rating |
