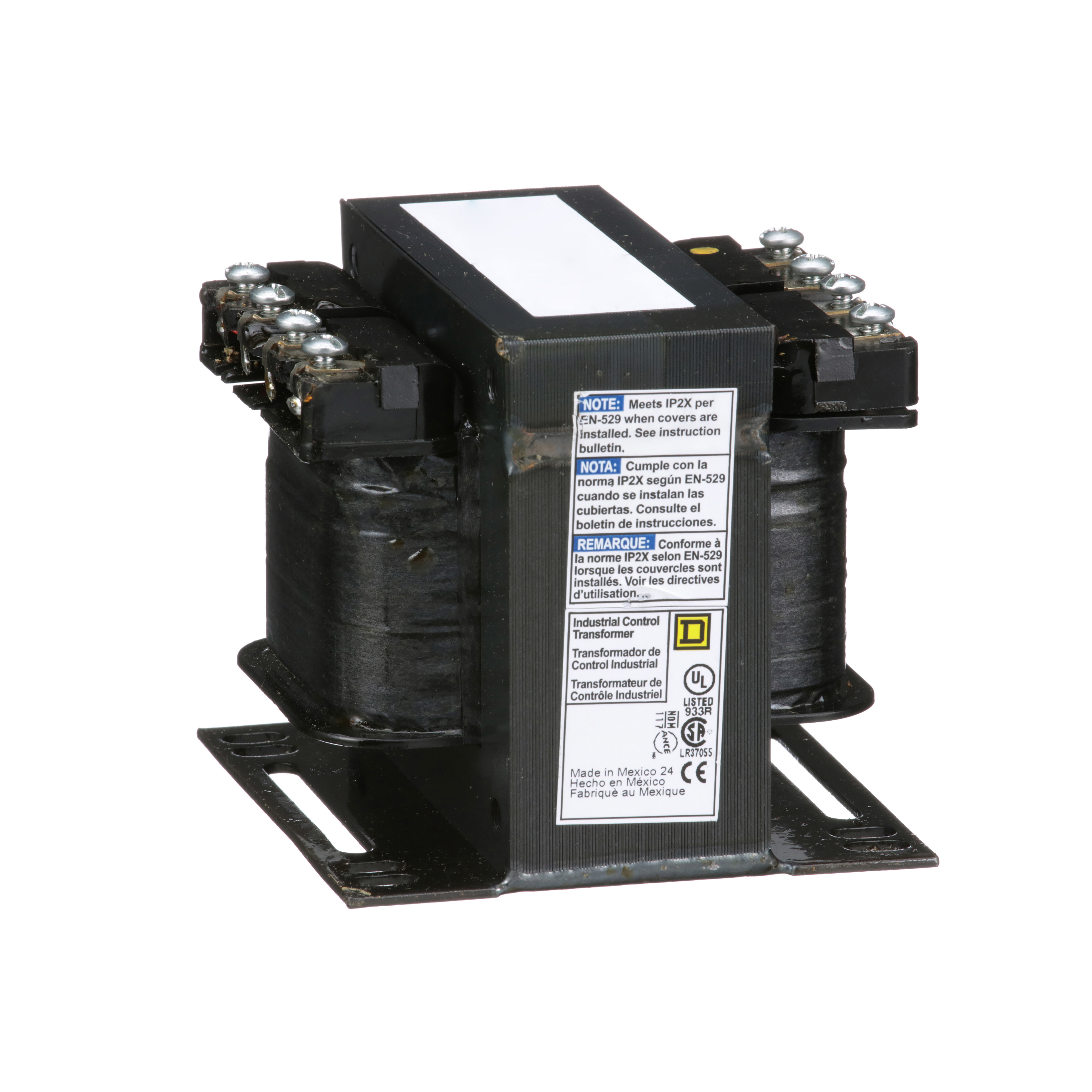

Square D™ 9070T200D2 Type T Industrial Open Style Control Transformer, 240/480 VAC Primary, 24 VAC Secondary
Control Transformers
151123
MFG #: 9070T200D2
Square D™
421.99000
/ ea
Square D 9070T200D2 TRANSFORMER CONTROL 200VA 240/480V-24V,1-Phase,130 Degrees C,200VA,240x480V,24V,80 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
- 10 Years(WEB WARRANTY URL)
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5853.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=39000-285-01.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 54db40d64c09414297f45c6360d9afdbe9bc5125.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- WEB CATALOG URL - IDW_DOCUMENT_029c12af1a703576ffe19f403f1492d2c42bc2427b3f41968acaab12e1057c40.pdf(WEB CATALOG URL)
- WEB COMPLIANCE CERT URL - Schneider_Electric_9070T200D2_Compliance_Certificate.pdf(WEB COMPLIANCE CERT URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH BULLETIN URL - 08a5ccf679123fbf242e451d62f0818679b3980e.pdf(WEB TECH BULLETIN URL)
- WEB TECH DRAWING URL - 22228f242c57723cb752ee529ddb3e0391723d7d.pdf(WEB TECH DRAWING URL)
- Applications
- Features
| SPECIFICALLY DESIGNED TO HANDLE HIGH INRUSH ASSOCIATED WITH CONTACTORS AND RELAYS FOR APPLICATIONS SUCH AS CONVEYOR SYSTEMS, PAINT LINES, PUNCH PRESSES OR OVERHEAD CRANES |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Stocked in a wide variety of sizes |
| Derives 120 or near 120 VAC control power from a wide variety of supply voltages |
| Compatible with Square D™ finger-safe® covers |
| Compatible with Square D™ control power fuse kits |
| Competitively priced with other universal control power transformers on the market |
| Copper winding |
| 240/480, 230/460, 220/440 VAC primary voltage rating |
| 24 VAC secondary voltage rating |
