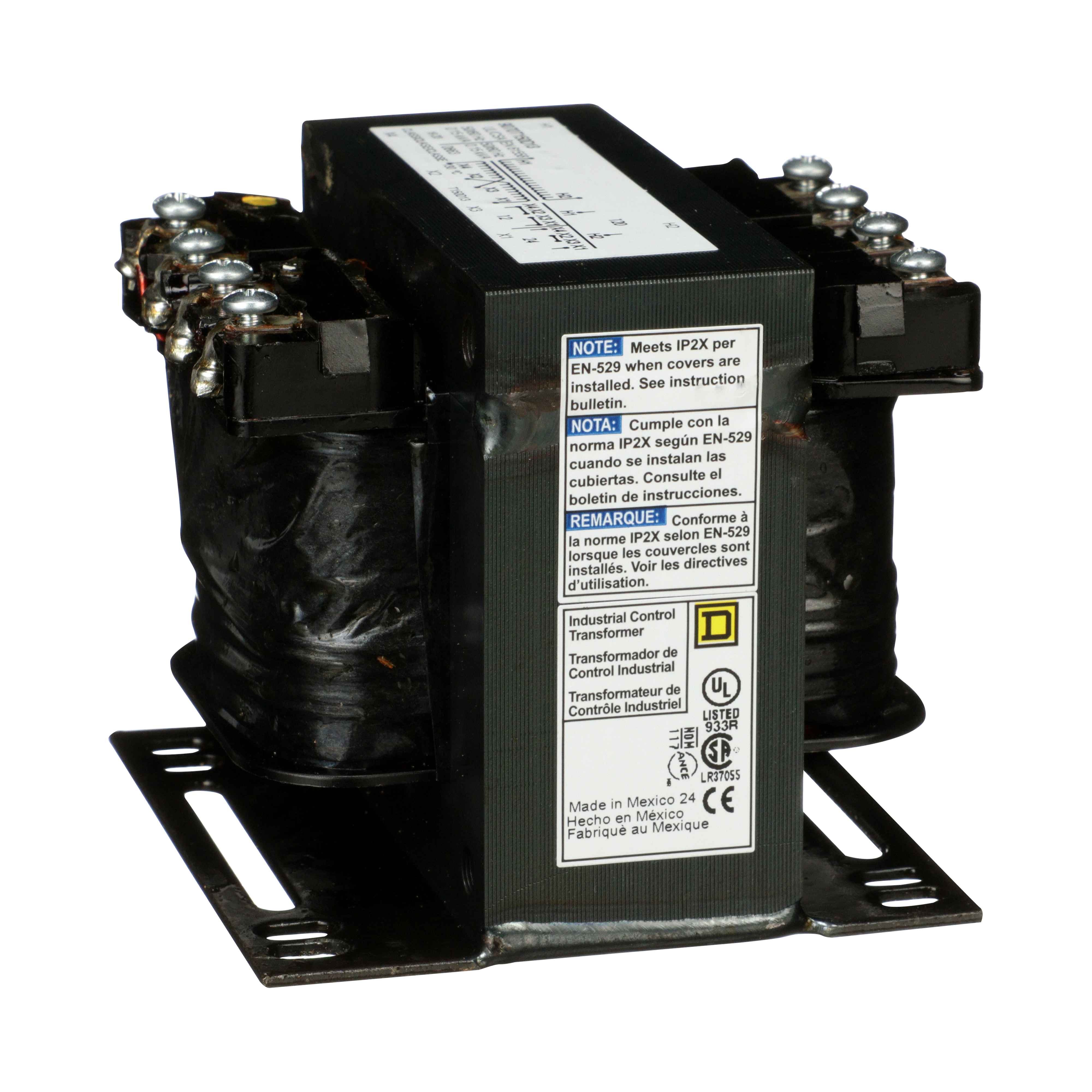

Square D™ 9070T150D13 TRANSFORMER CONTROL
Control Transformers
275100
MFG #: 9070T150D13
Square D™
395.50000
/ ea
Square D 9070T150D13 TRANSFORMER CONTROL 150VA 120V-12/24V,1-Phase,105 deg.C,12/24V,120V,150VA,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
- 360 Degree View URL - index.html?pid=11003&id=8082464360Den&ext=webp(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5849.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_9070T150D13_RoHS.pdf(ROHS Compliance URL)
- Catalog URL - IDW_DOCUMENT_029c12af1a703576ffe19f403f1492d2c42bc2427b3f41968acaab12e1057c40.pdf(Catalog URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Spec Sheet URL - 11003_0R9YKFPL41WXZ65D.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_4MNGRB6JQ893XSEW.zip(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Applications
- Features
| FSC1 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes |
| Copper winding |
