Square D™

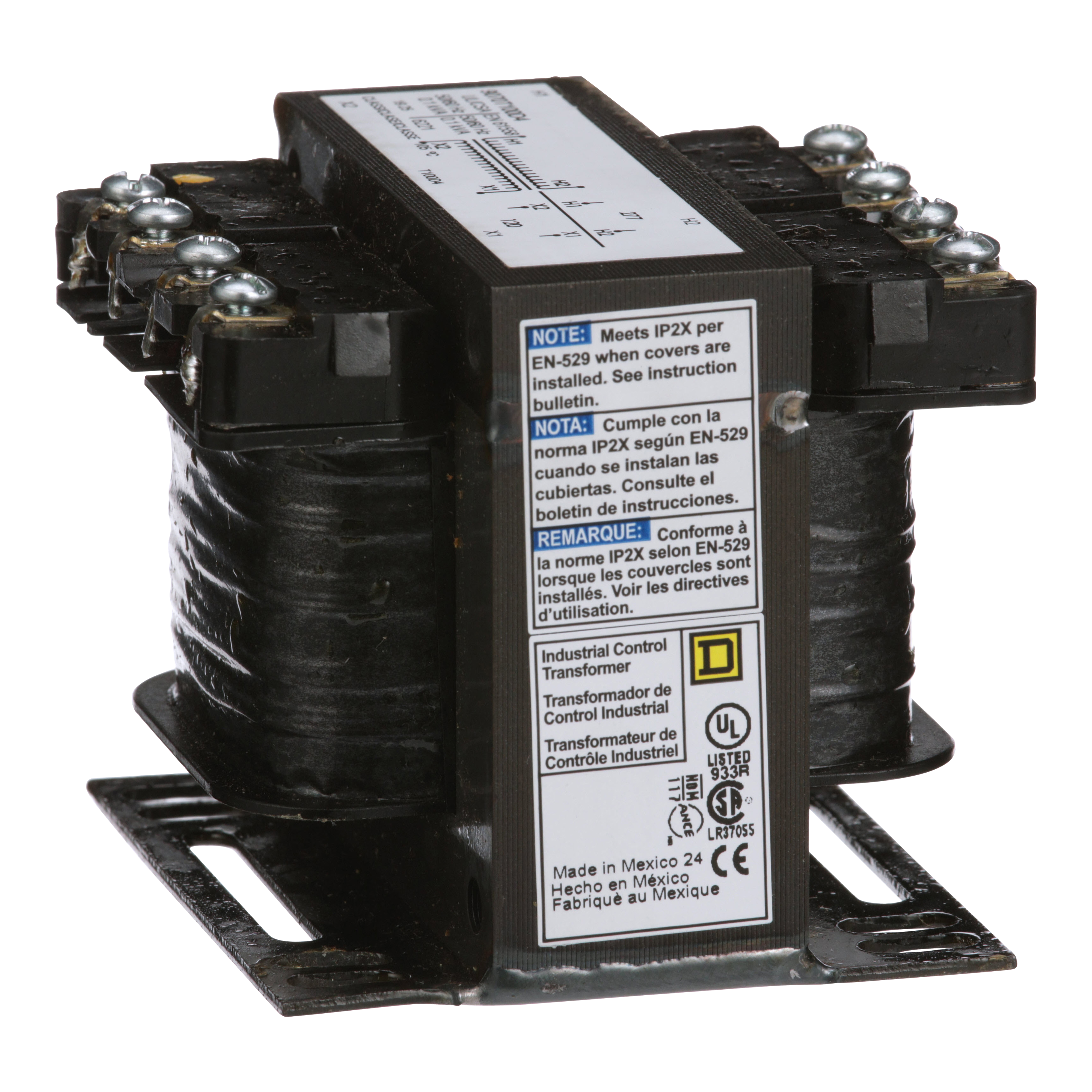

Square D™ 9070T100D4 Type T Industrial Open Style Control Transformer, 277 VAC Primary, 120 VAC Secondary, 100 VA
Custom_Product_Images_Illustration
Square D™
Square D™ 9070T100D4 Type T Industrial Open Style Control Transformer, 277 VAC Primary, 120 VAC Secondary, 100 VA
SKU302353
MFGR #9070T100D4
Your Cost: $248.10/ea
Square D 9070T100D4 TRANSFORMER CONTROL 100VA 277V-120V,1-Phase,100VA,105 deg.C,120V,277V,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Square D 9070T100D4 TRANSFORMER CONTROL 100VA 277V-120V,1-Phase,100VA,105 deg.C,120V,277V,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Alternate Catalog Number 9070T100D4 Application FSC1 ARRA Compliant N Buy American Compliant N Catalog Number 9070T100D4 Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 2.89 in H x 3.38 in W x 3.34 in D Enclosure NOT RATED (OPEN DEVICE) Enclosure Type Open EU RoHS Indicator Y Gross Volume Per Pack 59.16 Gross Volume per Pack Metric 969.50 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.8600 lb Gross Weight per Pack Metric 1.75 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 9.3980 in Height [Metric] 9.3980 cm Insulation 105 Insulation Class 55 Item Group 16200 KVA Rating 100 VA,100 VA Length 10.6680 in Length [Metric] 10.6680 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452319&lang=en-us Mounting Panel Mounting Type Panel Returnable Y Standard CSA FILE LR37055 GUIDE 184-N-90-CE-UL LISTED FILE E61239 Substitute Product Catalog Number 9070FB3A Temperature Rating 55 °C Type Type T Industrial Open Style UNSPSC 39121002 UPC 11 78590190577 UPC 12 785901905776 Warranty Description Contractual Warranty:10 Years Width 10.1600 in Width [Metric] 10.1600 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 50/60 Hz Phase 1 pH Power Rating 100 VA Primary Voltage 277 VAC Secondary Voltage 120 VAC FSC1 INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS Stocked in a wide variety of sizes Derives 120 or near 120 VAC control power from a wide variety of supply voltages Compatible with Square D™ finger-safe® covers Compatible with Square D™ control power fuse kits Competitively priced with other universal control power transformers on the market Copper winding 277 VAC primary voltage rating 120 VAC secondary voltage rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9070T100D4 |
| Application | FSC1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9070T100D4 |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.89 in H x 3.38 in W x 3.34 in D |
| Enclosure | NOT RATED (OPEN DEVICE) |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 59.16 |
| Gross Volume per Pack Metric | 969.50 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.8600 lb |
| Gross Weight per Pack Metric | 1.75 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 9.3980 in |
| Height [Metric] | 9.3980 cm |
| Insulation | 105 |
| Insulation Class | 55 |
| Item Group | 16200 |
| KVA Rating | 100 VA,100 VA |
| Length | 10.6680 in |
| Length [Metric] | 10.6680 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452319&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | Y |
| Standard | CSA FILE LR37055 GUIDE 184-N-90-CE-UL LISTED FILE E61239 |
| Substitute Product Catalog Number | 9070FB3A |
| Temperature Rating | 55 °C |
| Type | Type T Industrial Open Style |
| UNSPSC | 39121002 |
| UPC 11 | 78590190577 |
| UPC 12 | 785901905776 |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 10.1600 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 100 VA |
| Primary Voltage | 277 VAC |
| Secondary Voltage | 120 VAC |
| FSC1 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Stocked in a wide variety of sizes |
| Derives 120 or near 120 VAC control power from a wide variety of supply voltages |
| Compatible with Square D™ finger-safe® covers |
| Compatible with Square D™ control power fuse kits |
| Competitively priced with other universal control power transformers on the market |
| Copper winding |
| 277 VAC primary voltage rating |
| 120 VAC secondary voltage rating |
