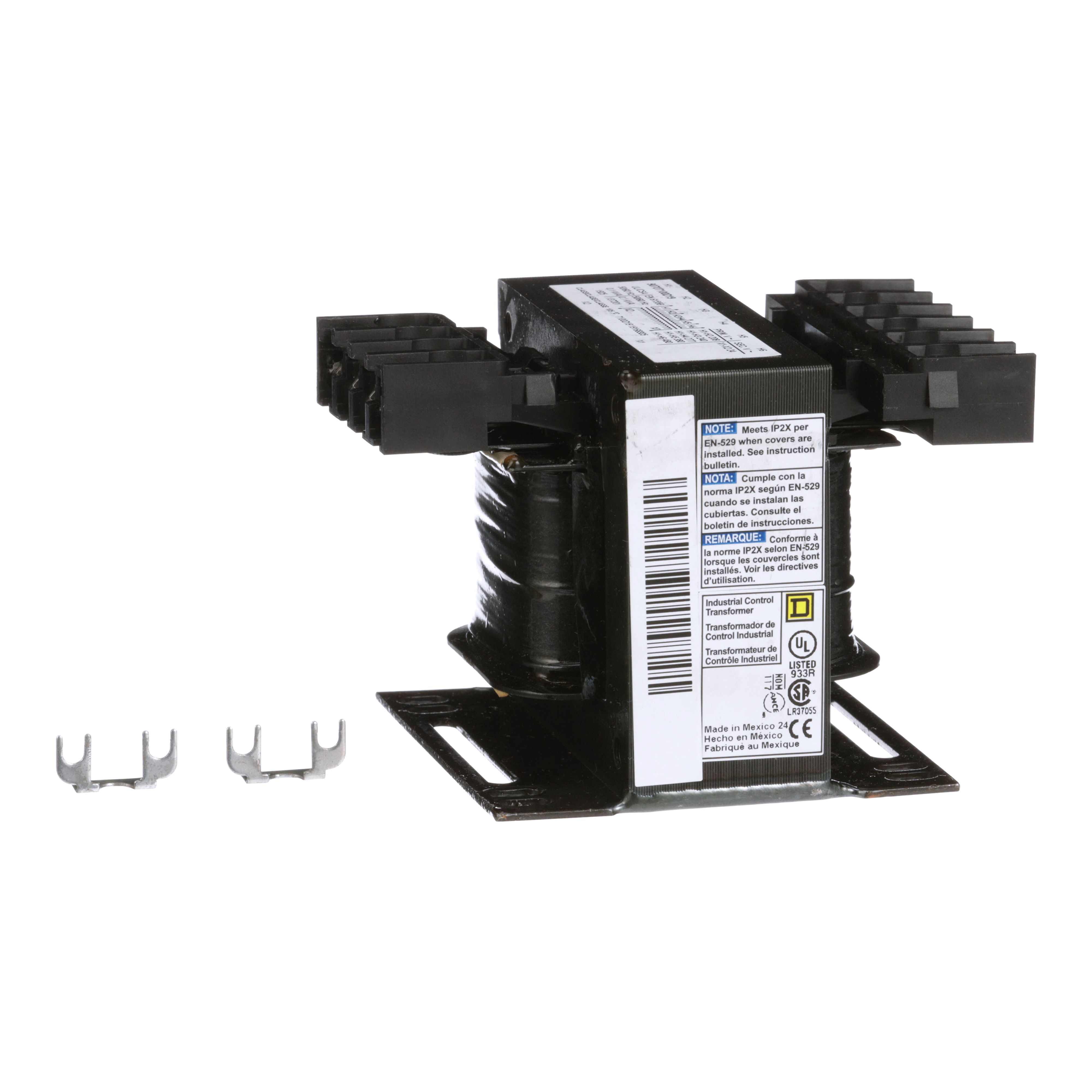

Square D™ 9070T100D19 TRFMR CONTROL 100VA
SKU275584
MFGR #9070T100D19
Square D 9070T100D19 TRFMR CONTROL 100VA MULTIPLE VOLTAGES,1-Phase,100VA,105 deg.C,208/240/277/380/480V,24V,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Square D 9070T100D19 TRFMR CONTROL 100VA MULTIPLE VOLTAGES,1-Phase,100VA,105 deg.C,208/240/277/380/480V,24V,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Alternate Catalog Number 9070T100D19 Application FSC23 ARRA Compliant N Buy American Compliant N Catalog Number 9070T100D19 Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 3.75 in W x 3.59 in D x 3.2 in H Enclosure NOT RATED (OPEN DEVICE) EU RoHS Indicator Y Gross Volume Per Pack 249.48 Gross Volume per Pack Metric 4088.23 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.7300 lb Gross Weight per Pack Metric 2.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 13.9700 in Height [Metric] 13.9700 cm Insulation Class 55 Item Group 16200 KVA Rating 100 VA,100 VA Length 18.2880 in Length [Metric] 18.2880 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452275&lang=en-us Mounting Panel Mounting Type Panel Returnable Y Series 9070 Standard CSA FILE LR37055 GUIDE 184-N-90-UL LISTED FILE E61239-CE Substitute Product Catalog Number 9070FB3A Temperature Rating 55 DEGREES C Type Type T UNSPSC 39121002 UPC 11 78590190504 UPC 12 785901905042 Warranty Description Contractual Warranty:10 Years Width 16.0020 in Width [Metric] 16.0020 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 50/60 Hz Phase 1 pH Power Rating 100 VA Primary Voltage 208/240/277/380/480 VAC Secondary Voltage 24 VAC FSC23 INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes Copper winding
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9070T100D19 |
| Application | FSC23 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9070T100D19 |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3.75 in W x 3.59 in D x 3.2 in H |
| Enclosure | NOT RATED (OPEN DEVICE) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 249.48 |
| Gross Volume per Pack Metric | 4088.23 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.7300 lb |
| Gross Weight per Pack Metric | 2.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 13.9700 in |
| Height [Metric] | 13.9700 cm |
| Insulation Class | 55 |
| Item Group | 16200 |
| KVA Rating | 100 VA,100 VA |
| Length | 18.2880 in |
| Length [Metric] | 18.2880 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452275&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | Y |
| Series | 9070 |
| Standard | CSA FILE LR37055 GUIDE 184-N-90-UL LISTED FILE E61239-CE |
| Substitute Product Catalog Number | 9070FB3A |
| Temperature Rating | 55 DEGREES C |
| Type | Type T |
| UNSPSC | 39121002 |
| UPC 11 | 78590190504 |
| UPC 12 | 785901905042 |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 16.0020 in |
| Width [Metric] | 16.0020 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 100 VA |
| Primary Voltage | 208/240/277/380/480 VAC |
| Secondary Voltage | 24 VAC |
| FSC23 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes |
| Copper winding |
