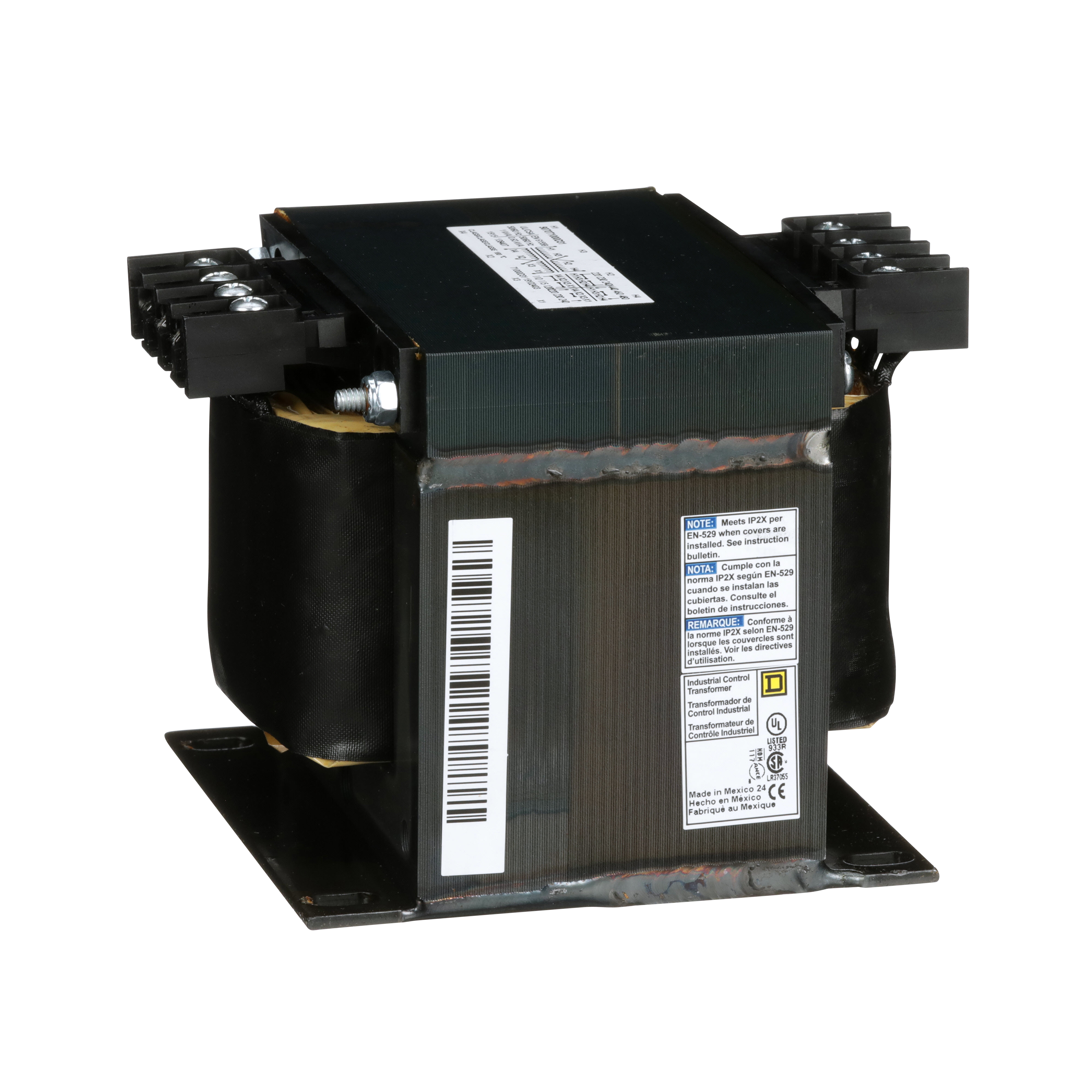

Square D™ 9070T1000D31 Type T Industrial Open Style Control Transformer, 240/480 VAC Primary, 1000 VA
Custom_Product_Images_Illustration
Square D™ 9070T1000D31 Type T Industrial Open Style Control Transformer, 240/480 VAC Primary, 1000 VA
SKU99866
MFGR #9070T1000D31
Your Cost: $1,375.29/ea
Square D 9070T1000D31 XFMR CONTROL 1000VA 240/480V-120/240V,1-Phase,1000VA,115 Degrees C,120/240V or 115/230V or 110/220V,180 deg.C,240x480V or 230x460V or 220x440V,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Square D 9070T1000D31 XFMR CONTROL 1000VA 240/480V-120/240V,1-Phase,1000VA,115 Degrees C,120/240V or 115/230V or 110/220V,180 deg.C,240x480V or 230x460V or 220x440V,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Alternate Catalog Number 9070T1000D31 Application FSC2 ARRA Compliant N Buy American Compliant N Catalog Number 9070T1000D31 Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 4.43 in H x 5.25 in W x 6.04 in D Enclosure NOT RATED (OPEN DEVICE) Enclosure Type Open EU RoHS Indicator Y Gross Volume Per Pack 505.47 Gross Volume per Pack Metric 8283.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 21.7400 lb Gross Weight per Pack Metric 9.86 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504316000 Height 17.7800 in Height [Metric] 17.7800 cm Insulation 180 Insulation Class 115 Item Group 16201 KVA Rating 1000 VA,1000 VA UL-1000 VA CSA-1000 VA NOM-630 VA CE Length 22.0980 in Length [Metric] 22.0980 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452121&lang=en-us Mounting Panel Mounting Type Panel Returnable Y Standard UL LISTED FILE E61239-CSA FILE LR37055 GUIDE 184-N-90-CE Substitute Product Catalog Number 9070FB3A Temperature Rating 115 °C Type Type T Industrial Open Style UNSPSC 39121002 UPC 11 78590184560 UPC 12 785901845607 Warranty Description Contractual Warranty:10 Years Width 21.0820 in Width [Metric] 21.0820 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 50/60 Hz Phase 1 pH Power Rating 1000 VA Primary Voltage 220/480 VAC Secondary Voltage 110/240 VAC FSC2 INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS Stocked in a wide variety of sizes Derives 120 or near 120 VAC control power from a wide variety of supply voltages Compatible with Square D™ finger-safe® covers Compatible with Square D™ control power fuse kits Competitively priced with other universal control power transformers on the market Copper winding 240/480, 230/460, 220/440 VAC primary voltage rating 110/115/120 VAC secondary voltage rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9070T1000D31 |
| Application | FSC2 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9070T1000D31 |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.43 in H x 5.25 in W x 6.04 in D |
| Enclosure | NOT RATED (OPEN DEVICE) |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 505.47 |
| Gross Volume per Pack Metric | 8283.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 21.7400 lb |
| Gross Weight per Pack Metric | 9.86 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504316000 |
| Height | 17.7800 in |
| Height [Metric] | 17.7800 cm |
| Insulation | 180 |
| Insulation Class | 115 |
| Item Group | 16201 |
| KVA Rating | 1000 VA,1000 VA UL-1000 VA CSA-1000 VA NOM-630 VA CE |
| Length | 22.0980 in |
| Length [Metric] | 22.0980 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452121&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | Y |
| Standard | UL LISTED FILE E61239-CSA FILE LR37055 GUIDE 184-N-90-CE |
| Substitute Product Catalog Number | 9070FB3A |
| Temperature Rating | 115 °C |
| Type | Type T Industrial Open Style |
| UNSPSC | 39121002 |
| UPC 11 | 78590184560 |
| UPC 12 | 785901845607 |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 21.0820 in |
| Width [Metric] | 21.0820 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 1000 VA |
| Primary Voltage | 220/480 VAC |
| Secondary Voltage | 110/240 VAC |
| FSC2 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Stocked in a wide variety of sizes |
| Derives 120 or near 120 VAC control power from a wide variety of supply voltages |
| Compatible with Square D™ finger-safe® covers |
| Compatible with Square D™ control power fuse kits |
| Competitively priced with other universal control power transformers on the market |
| Copper winding |
| 240/480, 230/460, 220/440 VAC primary voltage rating |
| 110/115/120 VAC secondary voltage rating |
