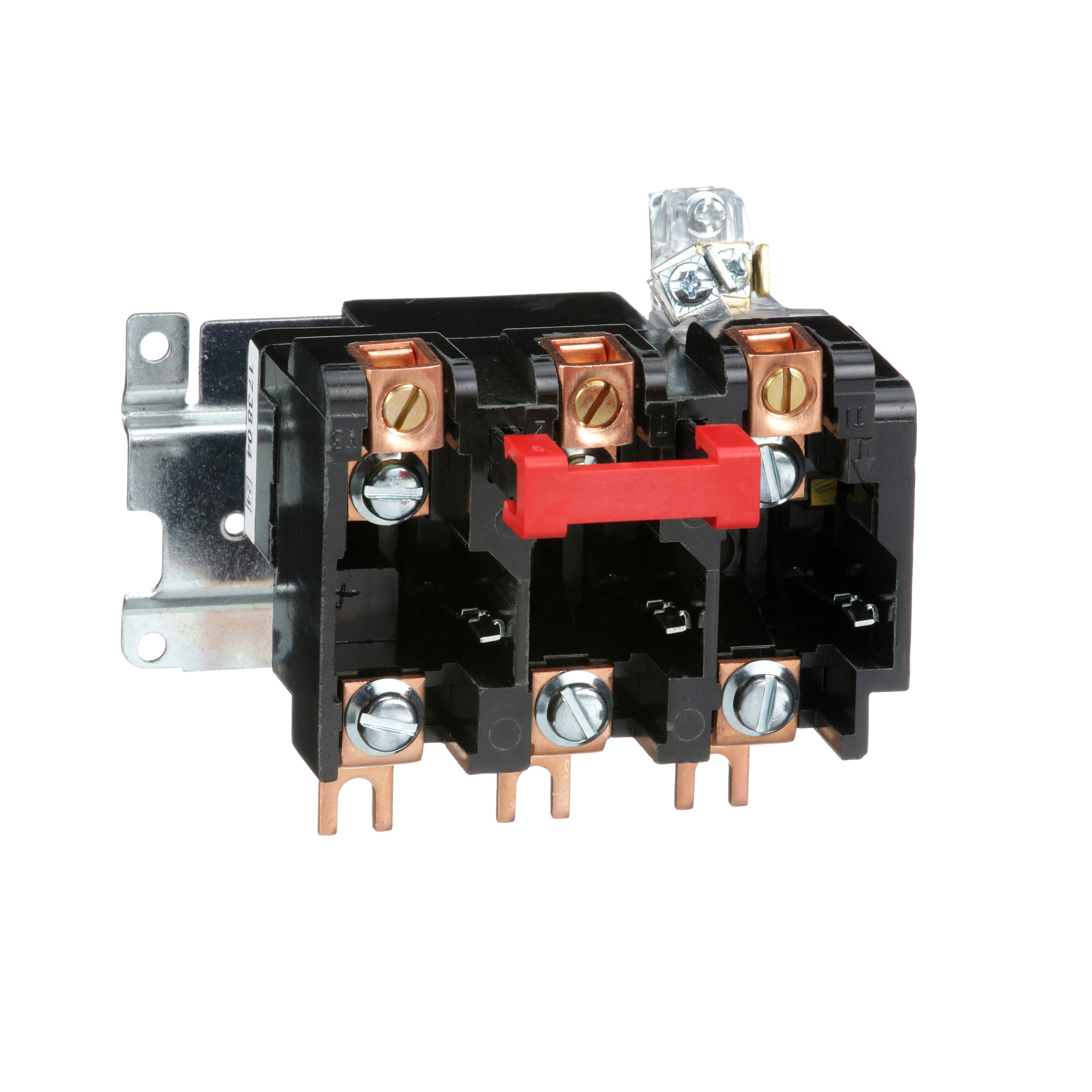

Square D™ 9065SDO8 Thermal Overload Relay
Custom_Product_Images_Illustration
Square D™
Square D™ 9065SDO8 Thermal Overload Relay
SKU35076
MFGR #9065SDO8
Your Cost: $197.83/ea
List: Square D 9065SDO8 MELTING ALLOY OVERLOAD RELAY 600VAC 45A,3,3-5pole Nema size 2 replacement,45A (max),600VAC,600VAC,Direct,Manual,Melting Alloy,N/C trip indicator,Overload Detection, replacement,Overload Relay,Schneider Electric UL Listed - CSA Certified - CE Marked
Square D 9065SDO8 MELTING ALLOY OVERLOAD RELAY 600VAC 45A,3,3-5pole Nema size 2 replacement,45A (max),600VAC,600VAC,Direct,Manual,Melting Alloy,N/C trip indicator,Overload Detection, replacement,Overload Relay,Schneider Electric UL Listed - CSA Certified - CE Marked
Alternate Catalog Number 9065SDO8 Amperage Rating 45 A Application Starter ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9065SDO8 Contact Configuration N/C TRIP INDICATOR Contact Form 1NC Contact Rating 45 A at 600 VAC Country of Origin US Currency USD Enclosure Type NEMA 2 EU RoHS Indicator Y Frequency Rating 50/60 Hz Full Load Current Range 0 to 45 A Gross Volume Per Pack 128.79 Gross Volume per Pack Metric 2110.48 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1059.9800 lb Gross Weight per Pack Metric 480.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490080 Height 11.4300 in Height [Metric] 11.7000 cm Item Group 21661 Length 13.7160 in Length [Metric] 13.7000 cm Manufacturer Schneider Electric Maximum Motor Voltage 600VAC Maximum Switching Voltage 600VAC Mounting Mounting plate Mounting Type Surface Number Of Poles 3 Reset Type Manual Returnable Y Size 101.6 MM,103.2 MM,108.7 MM,2 Standard UL LISTED - CSA CERTIFIED - CE MARKED Stock Status NONSTOCK Sub Brand SCHNEIDER ELECTRIC Substitute Product Catalog Number 9999SO4 Trip Type MELTING ALLOY Type Melting Alloy Replacement UNSPSC 39122330 UPC 11 78590188523 UPC 12 785901885238 Warranty Description Contractual Warranty:18 months Width 13.4620 in Width [Metric] 13.2000 cm Starter 3-5POLE NEMA SIZE 2 REPLACEMENT Melting Alloy Overload Relay Provides thermal overload protection based on selection and thermal trip curve Available in standard Class 20, as well as Class 10 and Class 30 trip classes (depending on size) Requires deliberate manual operation after they trip to reset the device Also establishes a cool down period so that the motor cannot be restarted until a proper cool down time has been achieved. Includes normally closed trip contact Added accessory provides additional contact (either N.O. or N.C.) for signaling Available in 2 or 3 pole designs for use with single phase or 3-phase applications Thermal unit selection tables available for all applications Exclusive one piece, tamper-proof thermal unit
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9065SDO8 |
| Amperage Rating | 45 A |
| Application | Starter |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9065SDO8 |
| Contact Configuration | N/C TRIP INDICATOR |
| Contact Form | 1NC |
| Contact Rating | 45 A at 600 VAC |
| Country of Origin | US |
| Currency | USD |
| Enclosure Type | NEMA 2 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Full Load Current Range | 0 to 45 A |
| Gross Volume Per Pack | 128.79 |
| Gross Volume per Pack Metric | 2110.48 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1059.9800 lb |
| Gross Weight per Pack Metric | 480.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 11.4300 in |
| Height [Metric] | 11.7000 cm |
| Item Group | 21661 |
| Length | 13.7160 in |
| Length [Metric] | 13.7000 cm |
| Manufacturer | Schneider Electric |
| Maximum Motor Voltage | 600VAC |
| Maximum Switching Voltage | 600VAC |
| Mounting | Mounting plate |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Reset Type | Manual |
| Returnable | Y |
| Size | 101.6 MM,103.2 MM,108.7 MM,2 |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Stock Status | NONSTOCK |
| Sub Brand | SCHNEIDER ELECTRIC |
| Substitute Product Catalog Number | 9999SO4 |
| Trip Type | MELTING ALLOY |
| Type | Melting Alloy Replacement |
| UNSPSC | 39122330 |
| UPC 11 | 78590188523 |
| UPC 12 | 785901885238 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.4620 in |
| Width [Metric] | 13.2000 cm |
| Starter |
| 3-5POLE NEMA SIZE 2 REPLACEMENT |
| Melting Alloy Overload Relay |
| Provides thermal overload protection based on selection and thermal trip curve |
| Available in standard Class 20, as well as Class 10 and Class 30 trip classes (depending on size) |
| Requires deliberate manual operation after they trip to reset the device |
| Also establishes a cool down period so that the motor cannot be restarted until a proper cool down time has been achieved. |
| Includes normally closed trip contact |
| Added accessory provides additional contact (either N.O. or N.C.) for signaling |
| Available in 2 or 3 pole designs for use with single phase or 3-phase applications |
| Thermal unit selection tables available for all applications |
| Exclusive one piece, tamper-proof thermal unit |
