Square D™

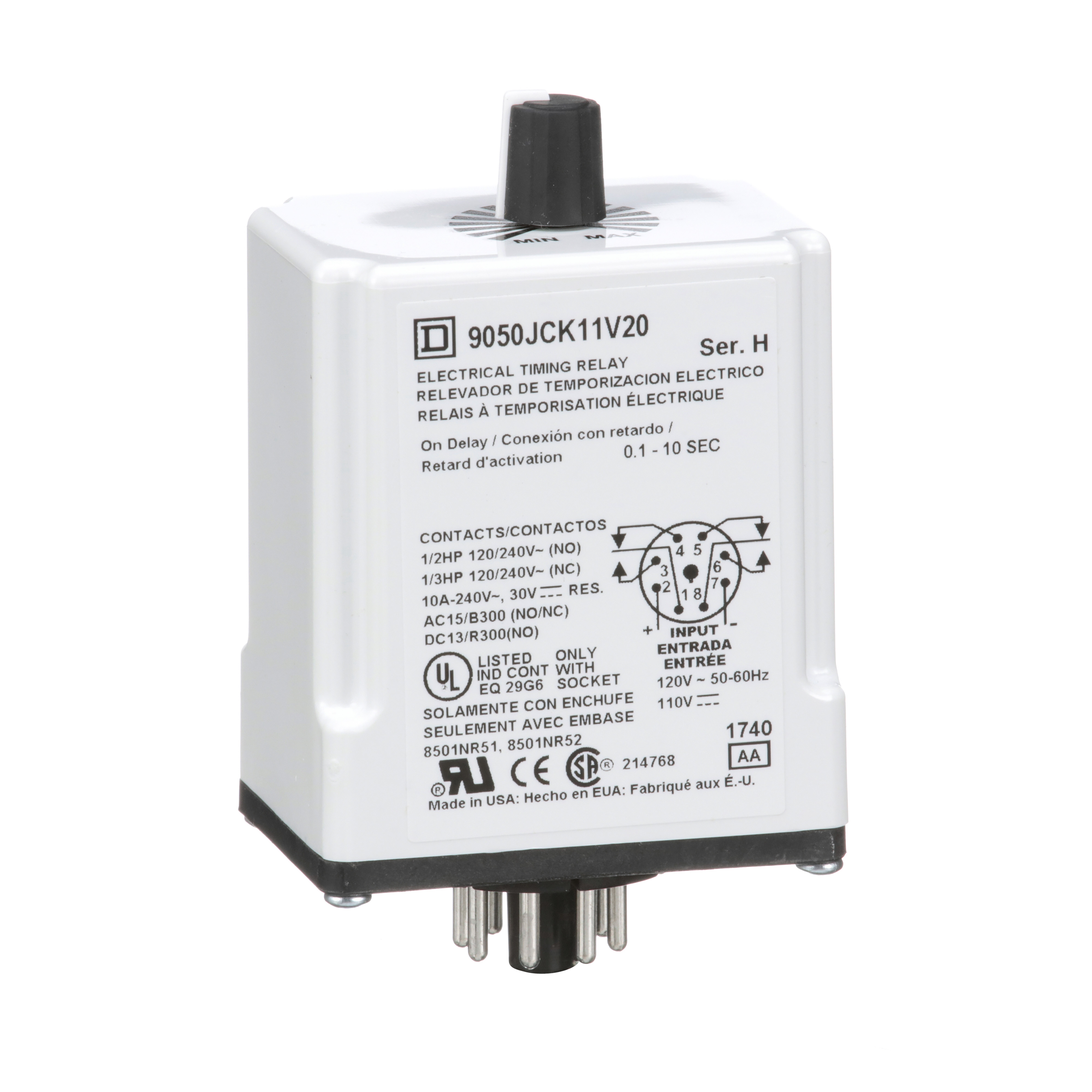

Square D™ 9050JCK11V20 Type JCK Timing Relay, 0.1 to 10 sec Time Setting, 240 VAC, 8 Pins
Custom_Product_Images_Illustration
Square D™
Square D™ 9050JCK11V20 Type JCK Timing Relay, 0.1 to 10 sec Time Setting, 240 VAC, 8 Pins
SKU31696
MFGR #9050JCK11V20
Your Cost: $82.01/ea
Square D 9050JCK11V20 TIMER RELAY 240VAC 10A TYPE JCK,120VAC - 110VDC,2 N.O./2 N.C. DPDT,On Delay 0.1 - 10 Seconds,Tubular,UL Listed File Number E78351 CCN NLDX - CSA Certified File Number 214768 Class 321107 - CE Marked,socket,timer
Square D 9050JCK11V20 TIMER RELAY 240VAC 10A TYPE JCK,120VAC - 110VDC,2 N.O./2 N.C. DPDT,On Delay 0.1 - 10 Seconds,Tubular,UL Listed File Number E78351 CCN NLDX - CSA Certified File Number 214768 Class 321107 - CE Marked,socket,timer
Alternate Catalog Number 9050JCK11V20 Amperage Rating 10 A ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9050JCK11V20 Coil 120 V AC;110 V DC Coil Voltage 120 VAC, 110 VDC Connection TUBULAR Contact Configuration 2 NO + 2 NC Contact Form 2NO-2NC DPDT Contact Rating 10 A,240 V AC Country of Origin MX Currency USD Dimensions 2.4 in H x 1.69 in W x 4.09 in D Electrical Connections Tubular EU RoHS Indicator Y Gross Volume Per Pack 22.88 Gross Volume per Pack Metric 374.94 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2850 lb Gross Weight per Pack Metric 122.47 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490080 Height 4.8260 in Height [Metric] 4.8260 cm Horsepower 1/2 hp Item Group 21651 Length 10.9220 in Length [Metric] 10.9220 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=369665&lang=en-us Mounting Socket Mounting Type Socket Number of Pins 8 Operating Temperature -18-150 A°F Operation Mode On Delay Returnable Y Series 9050JCK Size 104 MM,43 MM,61 MM Standard ROHS-UL LISTED-CE-UL RECOGNIZED Stock Status NORMALLY STOCKED Substitute Product Catalog Number 8501NR51 Temperature Rating -18 to 150 °F Time Setting 0.1 to 10 s Timing Range 0.1...10 s Type Type JCK UNSPSC 39122329 UPC 11 78590103254 UPC 12 785901032540 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 6.3500 in Width [Metric] 6.3500 cm ON DELAY 0.1 - 10 SECONDS General Purpose Plug In Timers Provides low cost timing is a plug in housing Timing range from 0.05 seconds to 999 hours Variable or fixed time delay versions Available in 7 timing modes DPDT output contacts UL Listed and CSA Certified
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 9050JCK11V20 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9050JCK11V20 |
| Coil | 120 V AC;110 V DC |
| Coil Voltage | 120 VAC, 110 VDC |
| Connection | TUBULAR |
| Contact Configuration | 2 NO + 2 NC |
| Contact Form | 2NO-2NC DPDT |
| Contact Rating | 10 A,240 V AC |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.4 in H x 1.69 in W x 4.09 in D |
| Electrical Connections | Tubular |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 22.88 |
| Gross Volume per Pack Metric | 374.94 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2850 lb |
| Gross Weight per Pack Metric | 122.47 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 4.8260 in |
| Height [Metric] | 4.8260 cm |
| Horsepower | 1/2 hp |
| Item Group | 21651 |
| Length | 10.9220 in |
| Length [Metric] | 10.9220 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=369665&lang=en-us |
| Mounting | Socket |
| Mounting Type | Socket |
| Number of Pins | 8 |
| Operating Temperature | -18-150 A°F |
| Operation Mode | On Delay |
| Returnable | Y |
| Series | 9050JCK |
| Size | 104 MM,43 MM,61 MM |
| Standard | ROHS-UL LISTED-CE-UL RECOGNIZED |
| Stock Status | NORMALLY STOCKED |
| Substitute Product Catalog Number | 8501NR51 |
| Temperature Rating | -18 to 150 °F |
| Time Setting | 0.1 to 10 s |
| Timing Range | 0.1...10 s |
| Type | Type JCK |
| UNSPSC | 39122329 |
| UPC 11 | 78590103254 |
| UPC 12 | 785901032540 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.3500 in |
| Width [Metric] | 6.3500 cm |
| ON DELAY 0.1 - 10 SECONDS |
| General Purpose Plug In Timers |
| Provides low cost timing is a plug in housing |
| Timing range from 0.05 seconds to 999 hours |
| Variable or fixed time delay versions |
| Available in 7 timing modes |
| DPDT output contacts |
| UL Listed and CSA Certified |
