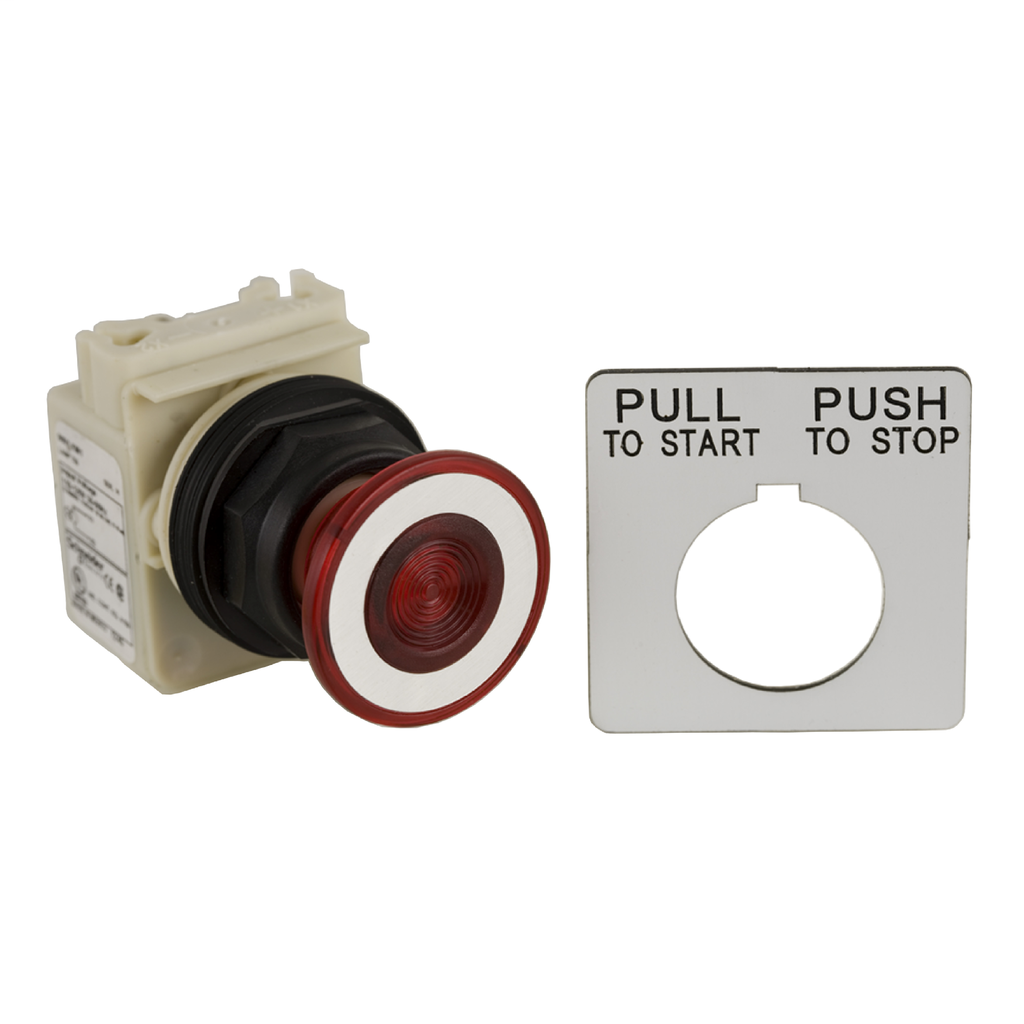

Square D™ 9001SKR9P7RH13 PUSHBUTTON 240VA

Custom_Product_Images_Illustration

Square D™ 9001SKR9P7RH13 PUSHBUTTON 240VA

SKUPDW~6441553

MFGR #9001SKR9P7RH13

Your Cost: $309.22/ea
List: $316.00 /ea
Schneider Electric,PUSHBUTTON 240VAC 30MM SK +OPTIONS,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight,Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,maintained
Schneider Electric,PUSHBUTTON 240VAC 30MM SK +OPTIONS,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight,Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,maintained

Action

PUSH-PULL

Actuator

PUSH-PULL,RED MUSHROOM Ø 41 MM

Amperage Rating

10 A

ARRA Compliant

N

Buy American Compliant

N

Catalog Number

9001SKR9P7RH13

Connection

SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1

Contact Rating

AC15 - DC13

Country of Origin

MX

Enclosure

NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X

Environmental Conditions

WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)

EU RoHS Indicator

Y

Gross Weight Per Pack

0.5000 lb

Harmonization Tariff Schedule Code

8536509065

Indicator

BA 9S

Insulation

250 V 3)IEC 60947-1

Item Group

21429

Mounting

Panel

Operating Temperature

-25-70 A°C

Returnable

Y

Standard

50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-IEC 60947-1-JIS C 852-JIS C 4520-IEC 60947-5-4-UL 508-EN/IEC 60947-5-1,IP66 IEC 60529-IP66 NF C 20-010

Sub Brand

HARMONY

Substitute Product Catalog Number

9001KA5

Type

ILLUMINATED MUSHROOM HEAD PUSH-BUTTON

UNSPSC

39122216

UPC 11

78590170356

UPC 12

785901703563

Voltage Rating

220...240 V AC 50...60 HZ V

Stock Status

NONSTOCK

Brand

Square D™

Manufacturer

Schneider Electric

Contact Configuration

1 C/O

Size

30 mm
