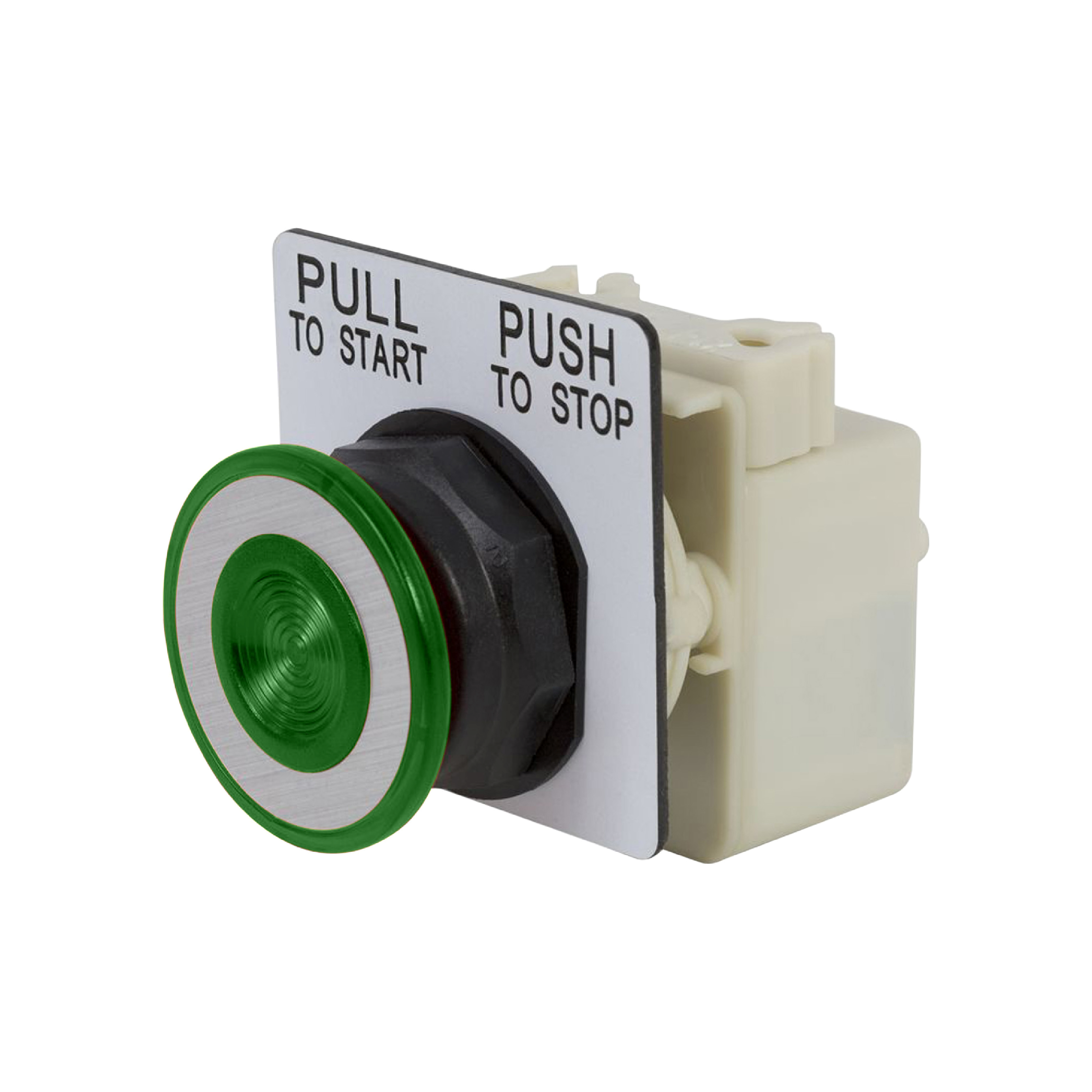

Square D™ 9001SKR8G PUSHBUTTON OPERATOR 3
Non-Illuminated Pushbutton Operators
1162417
MFG #: 9001SKR8G
Square D™
86.00000
/ ea
Schneider Electric,PUSHBUTTON OPERATOR 30MM SK +OPTIONS,30 mm,600V,Harmony 9001SK,NEMA 1/2/3/3R/4/4X/6/12/13,No Contact Blocks,Panel,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),non-illuminated mushroom head push-button,non-illuminated mushroom head push-button,plastic,push-pull
- Brochure URL - 11003_8QOJYL9EPK6C5SGW.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=9001BR1001_30mmPushButtons.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_12298800a20ab14d251012dfd03b272c64e6f12448248e11314caf8654fb215f.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001SKR8G_2D+Front+View.dxf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001SKR8G_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_HVBPFSI06KXJOCWD.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=30072-100-26.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- ROHS Compliance URL - Schneider_Electric_9001SKR8G_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_5LQD87GKYRXNOPB2.pdf(Spec Sheet URL)
- Spec Sheet URL - 41d0753e18c7a91d395bea038e49d35db53845c2.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_37JFDSW2O8XKMRPT.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_9GJBILAHN6QE4SPO.pdf(Tech Drawing URL)
- Tech Drawing URL - sales?sn=9001SKR8G(Tech Drawing URL)
- Features
| SCREW-IN WITH SET SCREW SECURITY |
| This Schneider electric Harmony™ 9001SK modular green pushbutton has 3-postions, operates with spring return mechanism |
| It has a round shape with 40 mm mushroom head |
| It fits in a 30 mm hole |
| Without contact block |
