Square D™

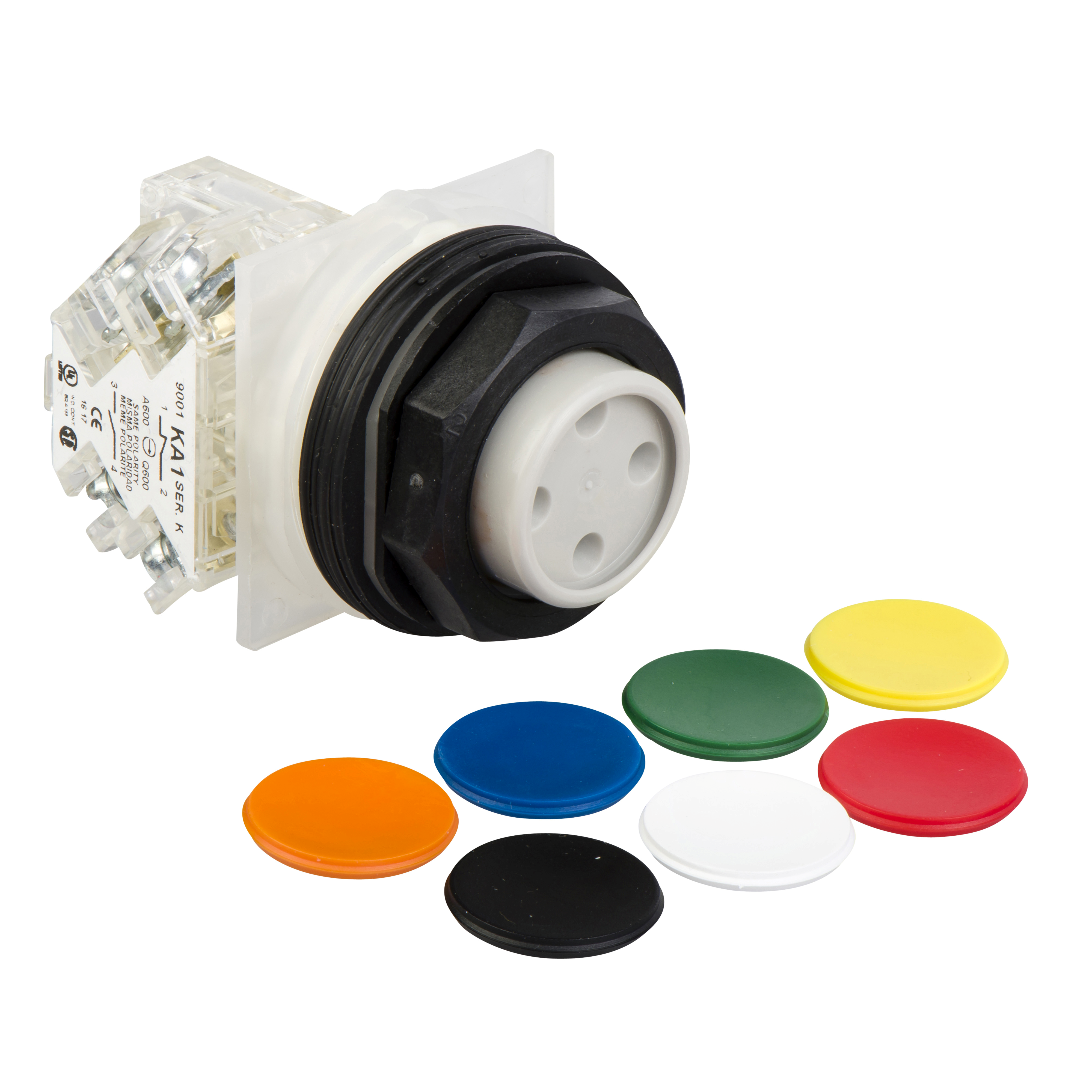

Square D™ 9001SKR3UH13 PUSHBUTTON 600VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 9001SKR3UH13 PUSHBUTTON 600VAC
SKUPDW~6441434
MFGR #9001SKR3UH13
Your Cost: $144.03/ea
List: Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC + 1 NO,10A,30 mm,600V,AC15 - DC13,Harmony 9001SK,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),complete push-button,complete push-button,plastic,slow-break,spring return
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC + 1 NO,10A,30 mm,600V,AC15 - DC13,Harmony 9001SK,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),complete push-button,complete push-button,plastic,slow-break,spring return
Action SLOW-BREAK Actuator 7 colours choice projecting, unmarked; spring return Alternate Catalog Number 9001SKR3UH13 Amperage Rating 3 A 240 V, AC-15, A600-Q600-0.55 A 125 V, DC-13, A600-Q600 ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number 9001SKR3UH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 15.98 Gross Volume per Pack Metric 261.93 Gross Weight Per Pack 0.7258 lb Gross Weight per Pack Metric 72.58 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 5.0800 in Height [Metric] 5.0800 cm Insulation 250 V 3)EN/IEC 60947-1 Item Group 21429 Length 6.3500 in Length [Metric] 6.3500 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=679972&lang=en-us Mounting Panel Mounting Type Panel Number of Positions 2 Operating Temperature -25-70 A°C Returnable Y Series 9001SK Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-1-JIS C 4520-EN/IEC 60947-5-4-EN/IEC 60947-1-UL 508-JIS C 852,IP66 IEC 60529,NEMA-UL 508 Sub Brand 9001SK Substitute Product Catalog Number 9001KA5 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked UNSPSC 39122216 UPC 11 78590104275 UPC 12 785901042754 Voltage Rating 600 V Warranty Description Contractual Warranty:18 months Width 7.1120 in Width [Metric] 7.1120 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1NO-1NC Contact Type Slow Break Operator Type Spring Return Size 30 mm WITHOUT GUARD Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations Without guard
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | 7 colours choice projecting, unmarked; spring return |
| Alternate Catalog Number | 9001SKR3UH13 |
| Amperage Rating | 3 A 240 V, AC-15, A600-Q600-0.55 A 125 V, DC-13, A600-Q600 |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKR3UH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 15.98 |
| Gross Volume per Pack Metric | 261.93 |
| Gross Weight Per Pack | 0.7258 lb |
| Gross Weight per Pack Metric | 72.58 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 5.0800 in |
| Height [Metric] | 5.0800 cm |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 21429 |
| Length | 6.3500 in |
| Length [Metric] | 6.3500 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=679972&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001SK |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-1-JIS C 4520-EN/IEC 60947-5-4-EN/IEC 60947-1-UL 508-JIS C 852,IP66 IEC 60529,NEMA-UL 508 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| UNSPSC | 39122216 |
| UPC 11 | 78590104275 |
| UPC 12 | 785901042754 |
| Voltage Rating | 600 V |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.1120 in |
| Width [Metric] | 7.1120 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NO-1NC |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 30 mm |
| WITHOUT GUARD |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
| Without guard |
