Square D™

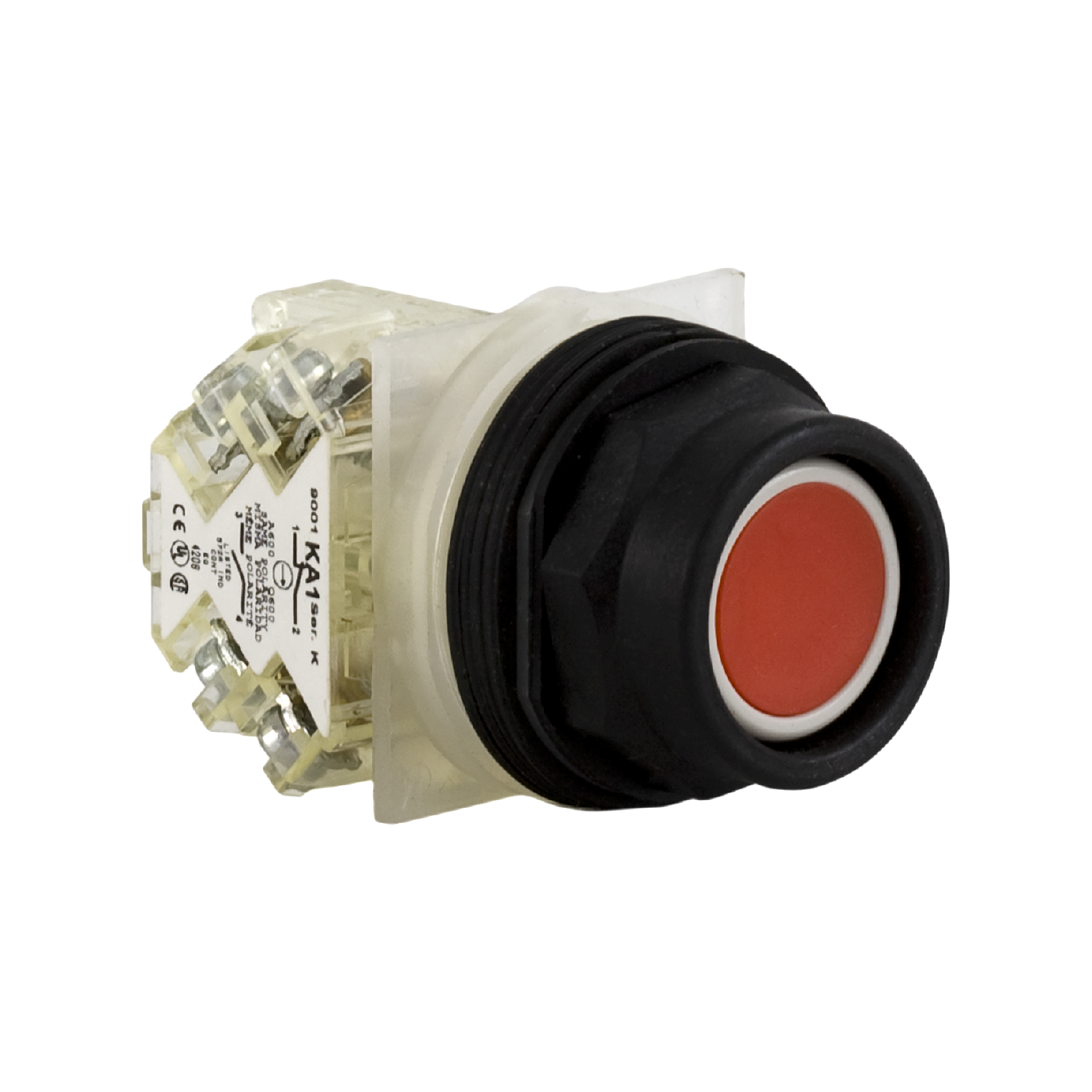

Square D™ 9001SKR2RH5 PUSHBUTTON 600VAC 1
Custom_Product_Images_Illustration
Square D™
Square D™ 9001SKR2RH5 PUSHBUTTON 600VAC 1
SKUPDW~6441388
MFGR #9001SKR2RH5
Your Cost: $96.87/ea
List: Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NO,10A,30 mm,600V,AC15 - DC13,Harmony,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NO,10A,30 mm,600V,AC15 - DC13,Harmony,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Action Standard Actuator Red recessed; spring return Alternate Catalog Number 9001SKR2RH5 Amperage Rating 10 A ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number 9001SKR2RH5 Connection Screw Clamp Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure NEMA 1/2/3/3R/4/4X/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 2.2680 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509035 Height 12.9030 in Height [Metric] 12.9030 cm Item Group 21429 Length 32.7740 in Length [Metric] 32.7740 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=496157&lang=en-us Mounting Panel Mounting Type Panel Returnable N Series 9001SK Standard EN/IEC 60947-5-4-EN/IEC 60947-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 4520-UL 508-JIS C 852,IP66 Sub Brand 9001SK Substitute Product Catalog Number 9001KA2 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked UNSPSC 39122216 UPC 11 78590116802 UPC 12 785901168027 Voltage Rating 600 V Warranty Description Contractual Warranty:18 months Width 5.0800 in Width [Metric] 5.0800 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Red Contact Configuration 1NO Contact Type Slow Break Operator Type Spring Return Size 30 mm EXTENDED PLASTIC GUARD Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | Red recessed; spring return |
| Alternate Catalog Number | 9001SKR2RH5 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKR2RH5 |
| Connection | Screw Clamp |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509035 |
| Height | 12.9030 in |
| Height [Metric] | 12.9030 cm |
| Item Group | 21429 |
| Length | 32.7740 in |
| Length [Metric] | 32.7740 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=496157&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | N |
| Series | 9001SK |
| Standard | EN/IEC 60947-5-4-EN/IEC 60947-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 4520-UL 508-JIS C 852,IP66 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA2 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| UNSPSC | 39122216 |
| UPC 11 | 78590116802 |
| UPC 12 | 785901168027 |
| Voltage Rating | 600 V |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.0800 in |
| Width [Metric] | 5.0800 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Red |
| Contact Configuration | 1NO |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 30 mm |
| EXTENDED PLASTIC GUARD |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
