Square D™

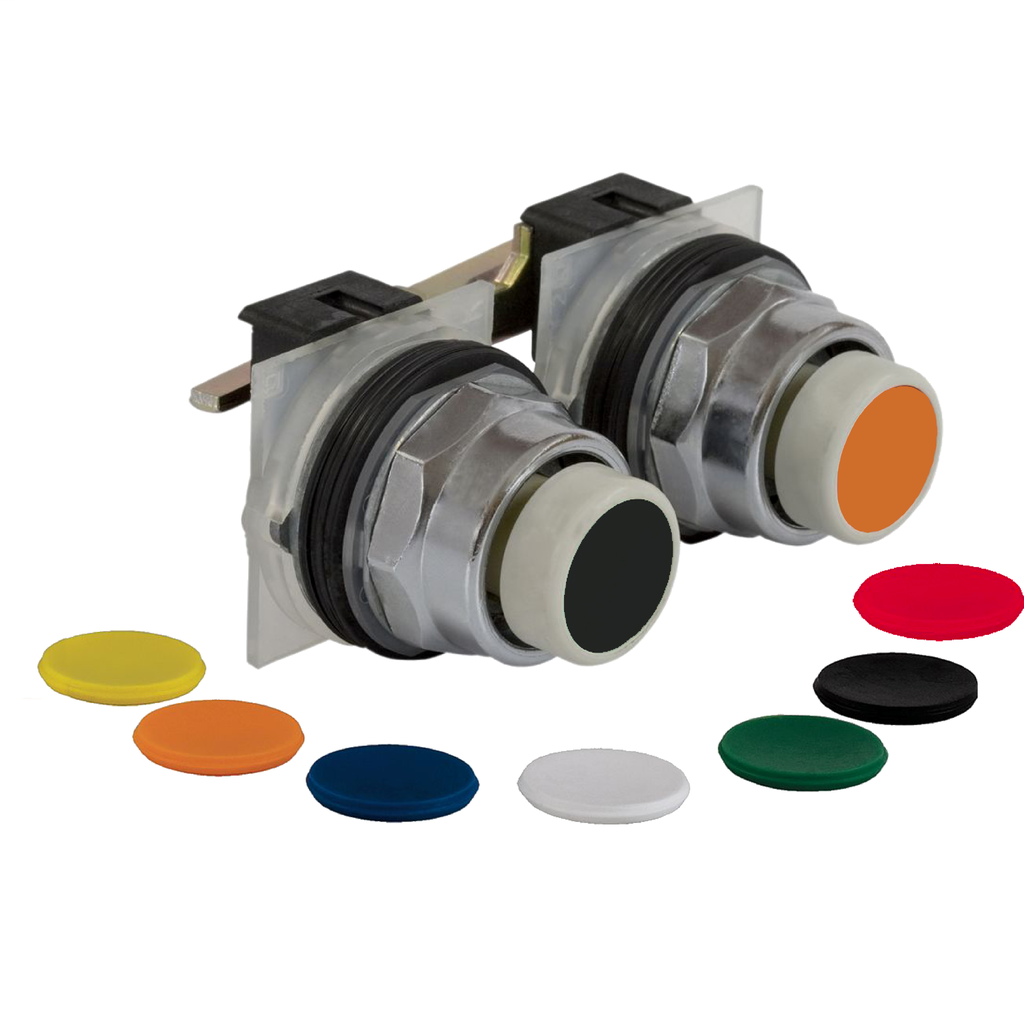

Square D™ 9001SKR11UH1H1 PUSHBUTTON 600VA
Custom_Product_Images_Illustration
Square D™
Square D™ 9001SKR11UH1H1 PUSHBUTTON 600VA
SKUPDW~6441365
MFGR #9001SKR11UH1H1
Your Cost: $222.13/ea
List: Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC + 1 NO,2 mechanically interlocked push-buttons,2 mechanically interlocked push-buttons,plastic,2 stay put,30 mm,Harmony 9001SK
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC + 1 NO,2 mechanically interlocked push-buttons,2 mechanically interlocked push-buttons,plastic,2 stay put,30 mm,Harmony 9001SK
Action 2 STAY PUT Actuator 2 STAY PUT,FLUSH 7 COLOURS CHOICE UNMARKED Amperage Rating 3 A 240 V, AC-15, A600-Q600 NEMA-0.55 A 125 V, DC-13, A600-Q600 NEMA ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number 9001SKR11UH1H1 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 Contact Mode Momentary/Maintained Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Harmonization Tariff Schedule Code 8536509035 Insulation 250 V 3)EN/IEC 60947-1 Item Group 21429 Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Series 9001SK Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,NEMA-UL 508,UL 508-EN/IEC 60947-5-4-JIS C8201-5-1-EN/IEC 60947-1-JIS C 852-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C8201-1 Sub Brand 9001SK Substitute Product Catalog Number 9001KA3 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked UNSPSC 39122216 UPC 11 78590175221 UPC 12 785901752219 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1NO-1NC Contact Type Slow Break Operator Type Spring Return Size 30 mm 2 MECHANICALLY INTERLOCKED PUSH-BUTTONS,PLASTIC Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | 2 STAY PUT |
| Actuator | 2 STAY PUT,FLUSH 7 COLOURS CHOICE UNMARKED |
| Amperage Rating | 3 A 240 V, AC-15, A600-Q600 NEMA-0.55 A 125 V, DC-13, A600-Q600 NEMA |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKR11UH1H1 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 |
| Contact Mode | Momentary/Maintained |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Harmonization Tariff Schedule Code | 8536509035 |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 21429 |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001SK |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,NEMA-UL 508,UL 508-EN/IEC 60947-5-4-JIS C8201-5-1-EN/IEC 60947-1-JIS C 852-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C8201-1 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA3 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| UNSPSC | 39122216 |
| UPC 11 | 78590175221 |
| UPC 12 | 785901752219 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NO-1NC |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 30 mm |
| 2 MECHANICALLY INTERLOCKED PUSH-BUTTONS,PLASTIC |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
