Square D™

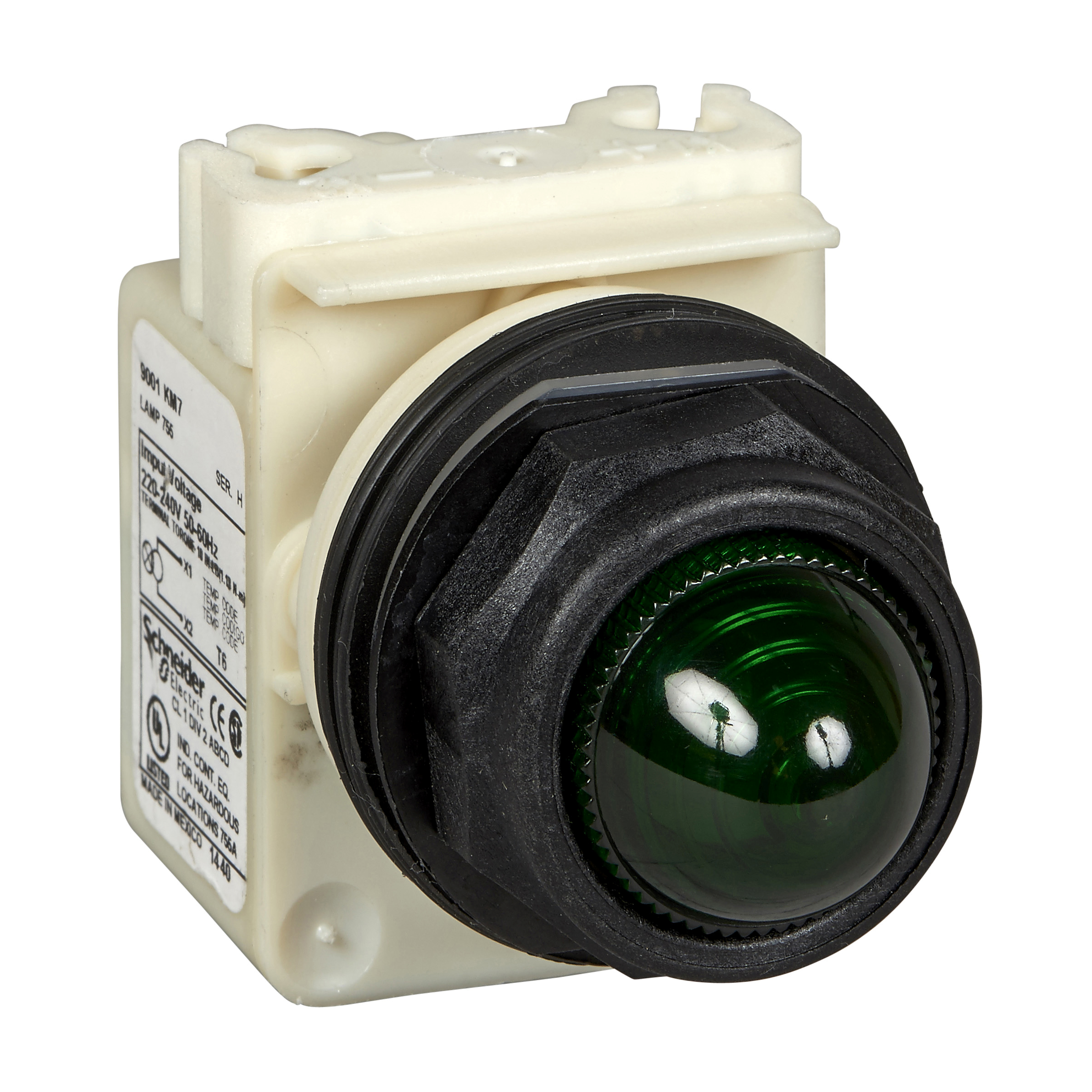

Square D™ 9001SKP7G9 PILOT LIGHT 240VAC 3
Custom_Product_Images_Illustration
Square D™
Square D™ 9001SKP7G9 PILOT LIGHT 240VAC 3
SKUPDW~6441296
MFGR #9001SKP7G9
Your Cost: $102.49/ea
List: Schneider Electric,PILOT LIGHT 240VAC 30MM SK +OPTIONS,30mm,9001SK,BA 9s,Green,Harmony 9001SK,NEMA 4-NEMA 4X-NEMA 3-NEMA 3R-NEMA 2-NEMA 13-NEMA 12-NEMA 1,Panel,UL,CSA,CE,complete pilot light,incandescent,plastic,round
Schneider Electric,PILOT LIGHT 240VAC 30MM SK +OPTIONS,30mm,9001SK,BA 9s,Green,Harmony 9001SK,NEMA 4-NEMA 4X-NEMA 3-NEMA 3R-NEMA 2-NEMA 13-NEMA 12-NEMA 1,Panel,UL,CSA,CE,complete pilot light,incandescent,plastic,round
Alternate Catalog Number 9001SKP7G9 Application 9001SK ARRA Compliant N Base BA 9s Base Type BA9s Bezel|Housing Black Plastic Buy American Compliant N Catalog Number 9001SKP7G9 Color Green Connection Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 Country of Origin MX Currency USD Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Finish Plastic Fixture Type Incandescent Gross Weight Per Pack 2.2680 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8531809026 Height 4.5720 in Height [Metric] 4.5720 cm Illumination Type incandescent Item Group 21429 Lamp Type Incandescent Length 9.1440 in Length [Metric] 9.1440 cm Lens Color Green Lens Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=495449&lang=en-us Mounting Panel Operating Temperature -25-70 A°C Returnable N Series 9001SK Shape Round Size 30 mm Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-4-JIS C 852-JIS C8201-5-1-EN/IEC 60947-1-JIS C8201-1,IP66 IEC 60529,NEMA-UL 508,CLASS II IEC 61140 Style Style 9 Sub Brand 9001SK Substitute Product Catalog Number 9001KA5 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Standard Transformer UNSPSC 39121534 UPC 11 78590195976 UPC 12 785901959762 Warranty Description Contractual Warranty:18 months Width 5.3340 in Width [Metric] 5.3340 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Lens Type Domed Mounting Type Panel Voltage Rating 220 to 240 VAC Wattage 2 VA 9001SK IP66 CONFORMING TO IEC 60529 This Schneider electric Harmony™ 9001SK green pilot light with transformer and plastic dome is supplied with 240 VAC It fits in a 30 mm hole Without legend plates Fingersafe™ contact blocks and light modules for improved safety Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory Low cost incandescent lamps Proven technology Full size and shallow depth light modules
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9001SKP7G9 |
| Application | 9001SK |
| ARRA Compliant | N |
| Base | BA 9s |
| Base Type | BA9s |
| Bezel|Housing | Black Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKP7G9 |
| Color | Green |
| Connection | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Finish | Plastic |
| Fixture Type | Incandescent |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8531809026 |
| Height | 4.5720 in |
| Height [Metric] | 4.5720 cm |
| Illumination Type | incandescent |
| Item Group | 21429 |
| Lamp Type | Incandescent |
| Length | 9.1440 in |
| Length [Metric] | 9.1440 cm |
| Lens Color | Green |
| Lens Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=495449&lang=en-us |
| Mounting | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | 9001SK |
| Shape | Round |
| Size | 30 mm |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-4-JIS C 852-JIS C8201-5-1-EN/IEC 60947-1-JIS C8201-1,IP66 IEC 60529,NEMA-UL 508,CLASS II IEC 61140 |
| Style | Style 9 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Standard Transformer |
| UNSPSC | 39121534 |
| UPC 11 | 78590195976 |
| UPC 12 | 785901959762 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.3340 in |
| Width [Metric] | 5.3340 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Lens Type | Domed |
| Mounting Type | Panel |
| Voltage Rating | 220 to 240 VAC |
| Wattage | 2 VA |
| 9001SK |
| IP66 CONFORMING TO IEC 60529 |
| This Schneider electric Harmony™ 9001SK green pilot light with transformer and plastic dome is supplied with 240 VAC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Low cost incandescent lamps |
| Proven technology |
| Full size and shallow depth light modules |
