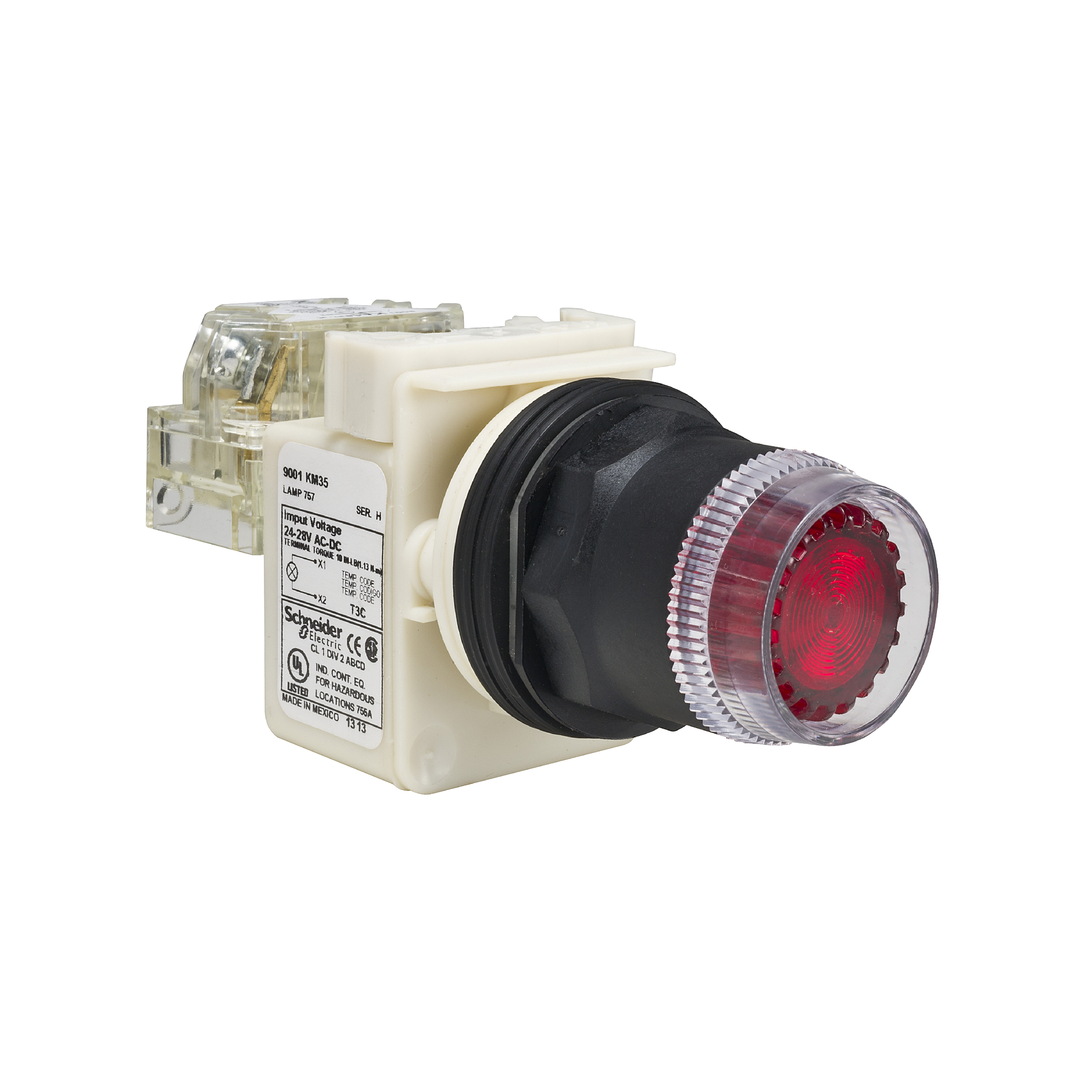

Square Dā„¢ 9001SK2L38LRRH13 PUSHBUTTON 600

Custom_Product_Images_Illustration

Square Dā„¢ 9001SK2L38LRRH13 PUSHBUTTON 600

SKUPDW~6442097

MFGR #9001SK2L38LRRH13

$/ea
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary

Action

Standard

Actuator

Red projecting; spring return

Alternate Catalog Number

9001SK2L38LRRH13

Amperage Rating

0.55 A 125 V, DC-13, A600-Q600 NEMA

ARRA Compliant

N

Bezel|Housing

Black Plastic

Buy American Compliant

N

Catalog Number

9001SK2L38LRRH13

Connection

SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1

Contact Mode

Momentary

Contact Rating

6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC

Country of Origin

MX

Currency

USD

Enclosure

NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X

Enclosure Type

NEMA 1/2/3/3R/4/4X/6/12/13/IP65

Environmental Conditions

-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

EU RoHS Indicator

Y

Gross Weight Per Pack

2.2680 lb

Gross Weight per Pack Metric

226.80

Gross Weight UOM Metric

g

Harmonization Tariff Schedule Code

8536509035

Height

16.1290 in

Height [Metric]

16.1290 cm

Illumination Type

LED

Indicator

BA 9S

Insulation

250 V 3)EN/IEC 60947-1

Item Group

21429

Lamp Type

BA9S LED

Length

40.9680 in

Length [Metric]

40.9680 cm

Material

Plastic

Material Composition Declaration

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=492925&lang=en-us

Model

illuminated push-button

Mounting

Panel

Mounting Type

Panel

Operating Temperature

-25-70 A°C

Returnable

N

Series

9001SK

Standard

50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-1-JIS C 852-UL 508-EN/IEC 60947-5-1-CSA C22.2 NO 14-EN/IEC 60947-5-4-JIS C 4520,IP66 IEC 60529,UL 508-NEMA

Sub Brand

9001SK

Substitute Product Catalog Number

9001KA5

Terminal Type

Screw/Clamp

Type

Type SK Corrosion-Resistant Direct Cross Slot Dusttight/Oiltight/Watertight Heavy Duty Unmarked

UNSPSC

39122216

UPC 11

78590169680

UPC 12

785901696803

Voltage Rating

120 VAC//VDC

Warranty Description

Contractual Warranty:18 months

Width

6.3500 in

Width [Metric]

6.3500 cm

Stock Status

NONSTOCK

Brand

Square Dā„¢

Manufacturer

Schneider Electric

Color

Red

Contact Configuration

1CO

Contact Type

Slow Break

Operator Type

Spring Return

Size

30 mm
