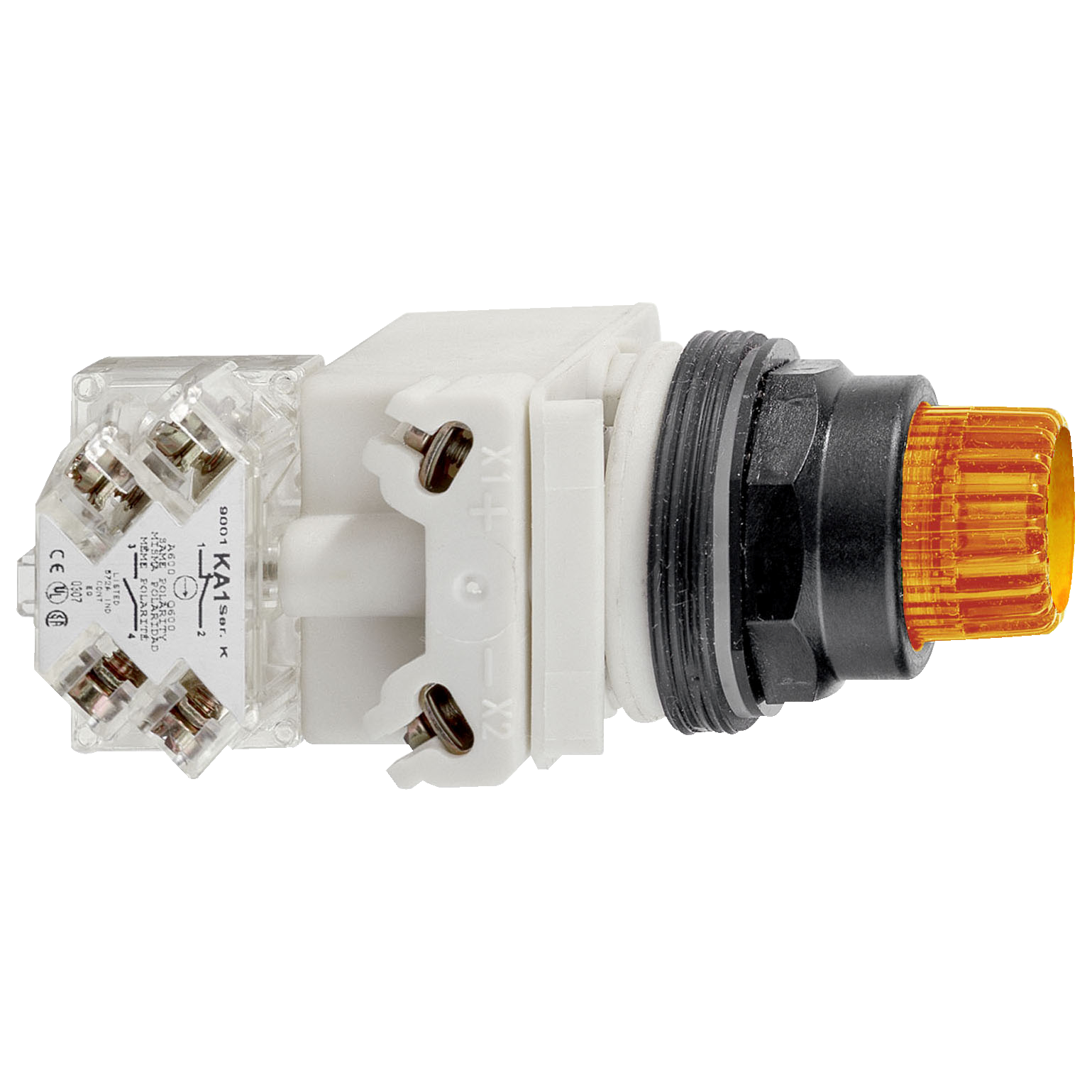

Square D™ 9001SK2L35AH13 PUSHBUTTON 600VA
SKUPDW~6442063
MFGR #9001SK2L35AH13
Your Cost: $180.05/ea
List: Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,30 mm,BA 9s,Harmony 9001SK,complete illuminated push-button,complete illuminated push-button,plastic,spring return,standard
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,30 mm,BA 9s,Harmony 9001SK,complete illuminated push-button,complete illuminated push-button,plastic,spring return,standard
Action Standard Actuator Amber projecting, unmarked; spring return Alternate Catalog Number 9001SK2L35AH13 ARRA Compliant N Bezel|Housing Black Plastic Buy American Compliant N Catalog Number 9001SK2L35AH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.4990 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Height 1.87 in Height [Metric] 4.8010 cm Illumination Type incandescent Indicator BA 9S Insulation 250 V 3)EN/IEC 60947-1 Item Group 21429 Lamp Type BA9S Incandescent Length 3.67 in Length [Metric] 9.4010 cm Material Plastic Material Composition Declaration https://download.schneider-electric.com/files?p_Doc_Ref=9001SK2L35AH13_ROHS_DECLARATION&p_FileName=9001SK2L35AH13_ROHS_DECLARATION_US_en-US.pdf Operating Temperature -25-70 A°C Returnable N Series 9001SK Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-CSA C22.2 NO 14-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C 4520-JIS C 852-UL 508,IP66 IEC 60529,UL 508-NEMA Sub Brand 9001SK Substitute Product Catalog Number 9001KA5 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Direct Heavy Duty Octagonal Unmarked UNSPSC 39122216 UPC 11 78590117842 UPC 12 785901178422 Voltage Rating 24...28 V AC/DC Warranty Description Contractual Warranty:18 months Width 2.26 in Width [Metric] 5.7990 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Amber Contact Configuration 1CO Contact Type Slow Break Operator Type Spring Return Size 30 mm WITHOUT GUARD This Schneider electric Harmony™ 9001SK modular illuminated flush amber pushbutton is supplied with contact block It has a plastic bezel and is supplied with a 24 VAC/VDC integral LED and has 1NO-1NC contacts It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations Without guard
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | Amber projecting, unmarked; spring return |
| Alternate Catalog Number | 9001SK2L35AH13 |
| ARRA Compliant | N |
| Bezel|Housing | Black Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SK2L35AH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4990 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Height | 1.87 in |
| Height [Metric] | 4.8010 cm |
| Illumination Type | incandescent |
| Indicator | BA 9S |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 21429 |
| Lamp Type | BA9S Incandescent |
| Length | 3.67 in |
| Length [Metric] | 9.4010 cm |
| Material | Plastic |
| Material Composition Declaration | https://download.schneider-electric.com/files?p_Doc_Ref=9001SK2L35AH13_ROHS_DECLARATION&p_FileName=9001SK2L35AH13_ROHS_DECLARATION_US_en-US.pdf |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | 9001SK |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-CSA C22.2 NO 14-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C 4520-JIS C 852-UL 508,IP66 IEC 60529,UL 508-NEMA |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Direct Heavy Duty Octagonal Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590117842 |
| UPC 12 | 785901178422 |
| Voltage Rating | 24...28 V AC/DC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.26 in |
| Width [Metric] | 5.7990 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Amber |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 30 mm |
| WITHOUT GUARD |
| This Schneider electric Harmony™ 9001SK modular illuminated flush amber pushbutton is supplied with contact block |
| It has a plastic bezel and is supplied with a 24 VAC/VDC integral LED and has 1NO-1NC contacts |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
| Without guard |
