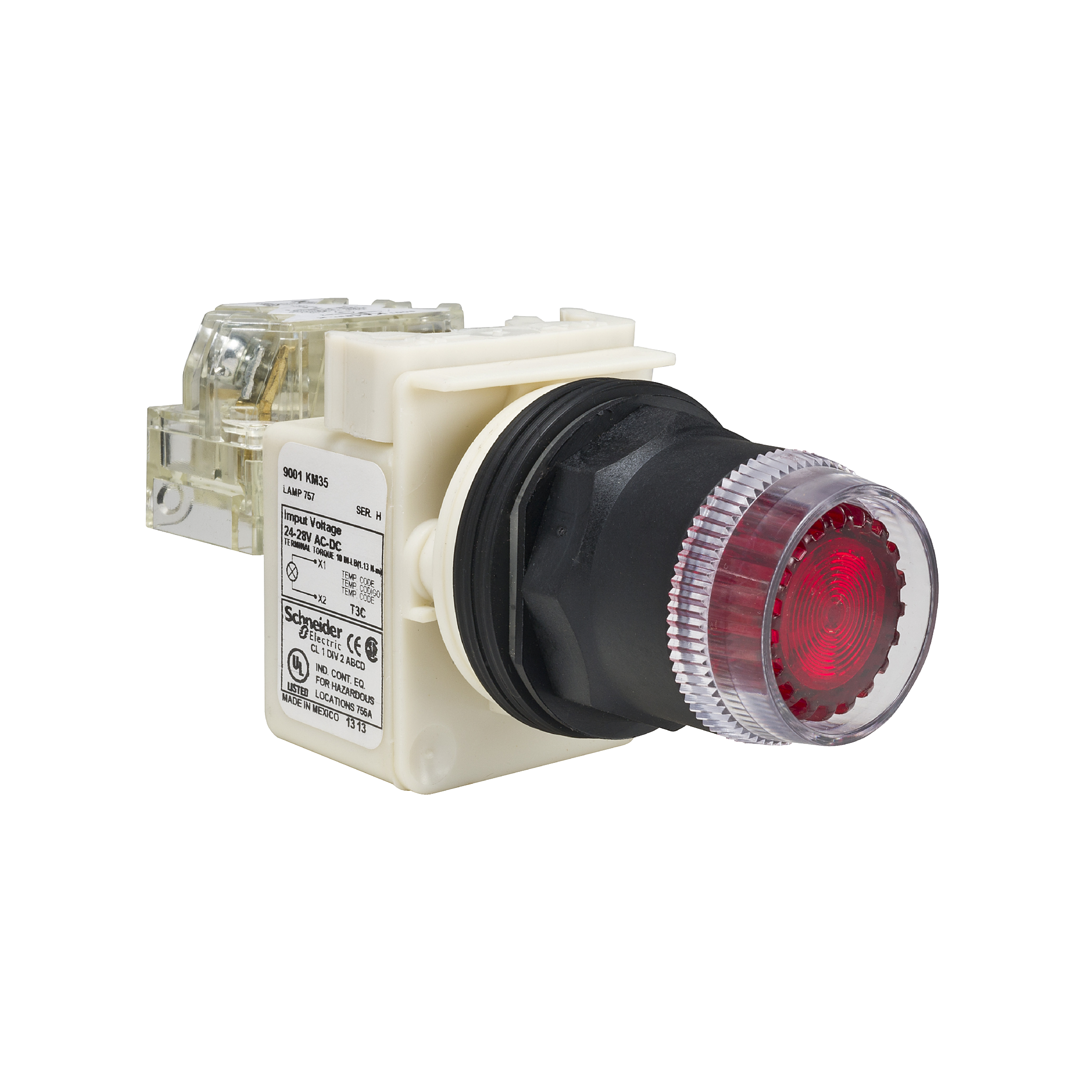

Square D™ 9001SK1L7RH13 PUSHBUTTON 600VAC
SKUPDW~6441983
MFGR #9001SK1L7RH13
Your Cost: $232.12/ea
List: Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,30 mm,black plastic,unmarked,momentary
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,30 mm,black plastic,unmarked,momentary
Action Standard Actuator Red flush; spring return Alternate Catalog Number 9001SK1L7RH13 Amperage Rating 0.55 A 125 V, DC-13, A600-Q600 NEMA ARRA Compliant N Buy American Compliant N Catalog Number 9001SK1L7RH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X EU RoHS Indicator Y Gross Weight Per Pack 1.8144 lb Gross Weight per Pack Metric 181.44 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 12.9030 in Height [Metric] 12.9030 cm Illumination Type Incandescent Indicator BA 9S Insulation 250 V 3)EN/IEC 60947-1 Item Group 21429 Length 32.7740 in Length [Metric] 32.7740 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=492181&lang=en-us Operating Temperature -25-70 A°C Returnable N Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-UL 508-JIS C 4520-JIS C 852-CSA C22.2 NO 14,IP66 IEC 60529,UL 508-NEMA Sub Brand HARMONY Substitute Product Catalog Number 9001KA3 Type ILLUMINATED PUSH-BUTTON UNSPSC 39122216 UPC 11 78590159575 UPC 12 785901595755 Voltage Rating 220...240 V AC/DC Warranty Description Contractual Warranty:18 months Width 5.0800 in Width [Metric] 5.0800 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1 C/O Size 30 MM in FULL GUARD IN PLASTIC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | Red flush; spring return |
| Alternate Catalog Number | 9001SK1L7RH13 |
| Amperage Rating | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9001SK1L7RH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.8144 lb |
| Gross Weight per Pack Metric | 181.44 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 12.9030 in |
| Height [Metric] | 12.9030 cm |
| Illumination Type | Incandescent |
| Indicator | BA 9S |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 21429 |
| Length | 32.7740 in |
| Length [Metric] | 32.7740 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=492181&lang=en-us |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-UL 508-JIS C 4520-JIS C 852-CSA C22.2 NO 14,IP66 IEC 60529,UL 508-NEMA |
| Sub Brand | HARMONY |
| Substitute Product Catalog Number | 9001KA3 |
| Type | ILLUMINATED PUSH-BUTTON |
| UNSPSC | 39122216 |
| UPC 11 | 78590159575 |
| UPC 12 | 785901595755 |
| Voltage Rating | 220...240 V AC/DC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.0800 in |
| Width [Metric] | 5.0800 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 C/O |
| Size | 30 MM in |
| FULL GUARD IN PLASTIC |
