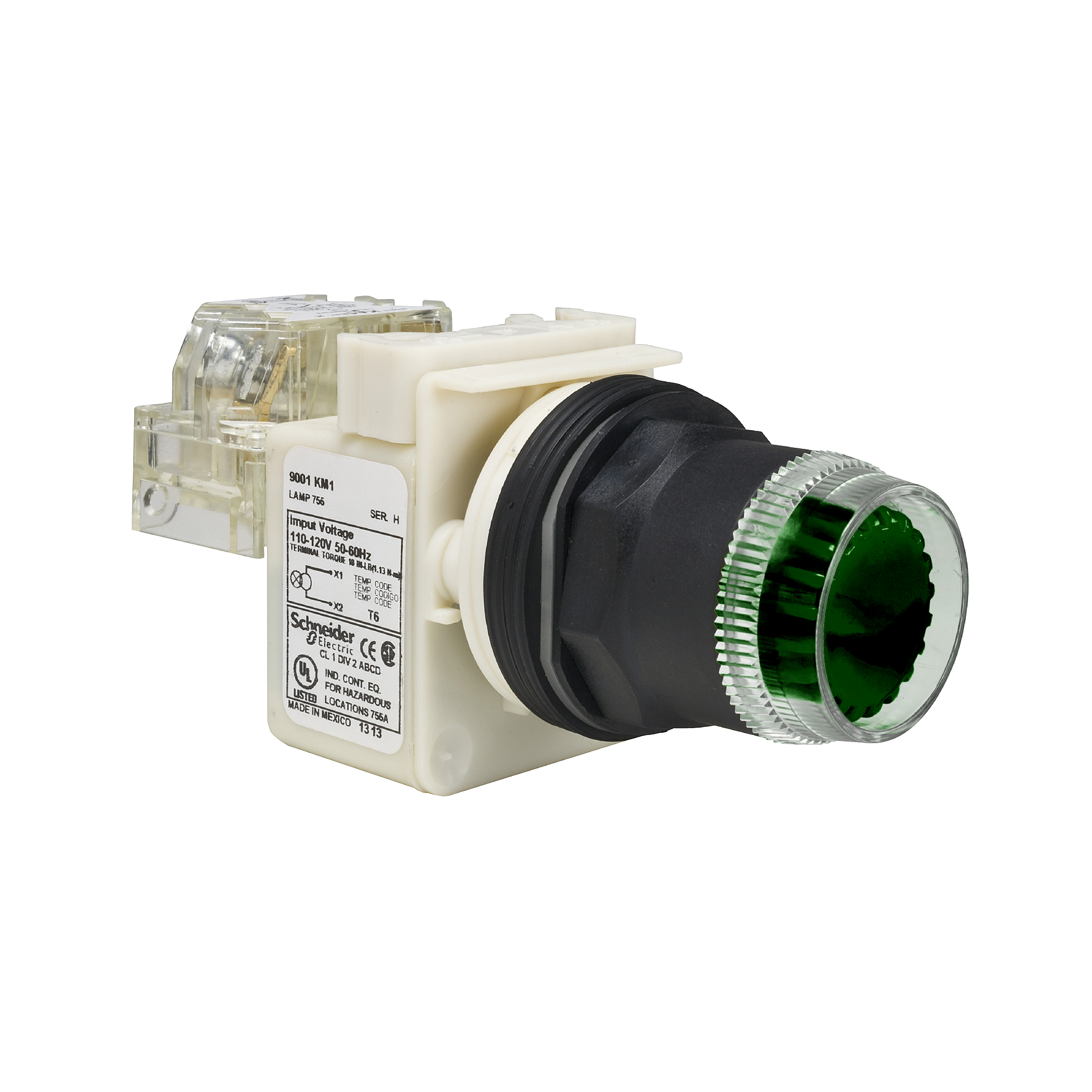

Square D™ 9001SK1L1G PUSHBUTTON OPERATOR
Pilot Devices
34650
MFG #: 9001SK1L1G
Square D™
167.00000
/ ea
Schneider Electric 9001SK1L1G PUSHBUTTON OPERATOR 30MM SK +OPTIONS,30mm Round,600V,Illuminated,K,NEMA 1/2/3/3R/4/4X/6/12/13,No Contact Blocks,Panel,Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,illuminated push-button,momentary
- Brochure URL - 11003_8QOJYL9EPK6C5SGW.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=9001BR1001_30mmPushButtons.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_12298800a20ab14d251012dfd03b272c64e6f12448248e11314caf8654fb215f.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001SK1L1G_2D.dwf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001SK1L1G_2D.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_3G0MKO4NCFDZWE9B.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=30072-100-14.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_4N5CVXF62ASYHPO8.pdf(Spec Sheet URL)
- Spec Sheet URL - 9001SK1L1G(Spec Sheet URL)
- Tech Drawing URL - 11003_FKJ4N9E3AOCQ6YU8.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_LF5T0ER2POXA6MDK.pdf(Tech Drawing URL)
- Tech Drawing URL - 8b0b6bc08a4ac7e3ca2b4b0dd7359e1a2c27b294.pdf(Tech Drawing URL)
- Applications
- Features
| ILLUMINATED PUSH-BUTTON |
| BLACK PLASTIC,PUSH-BUTTON |
| Octagonal shape of signaling unit head |
| Light block supply via transformer 120 VAC at 50/60 Hz |
| 1.18 in mounting Dia |
| Black plastic bezel |
| Without contact block |
