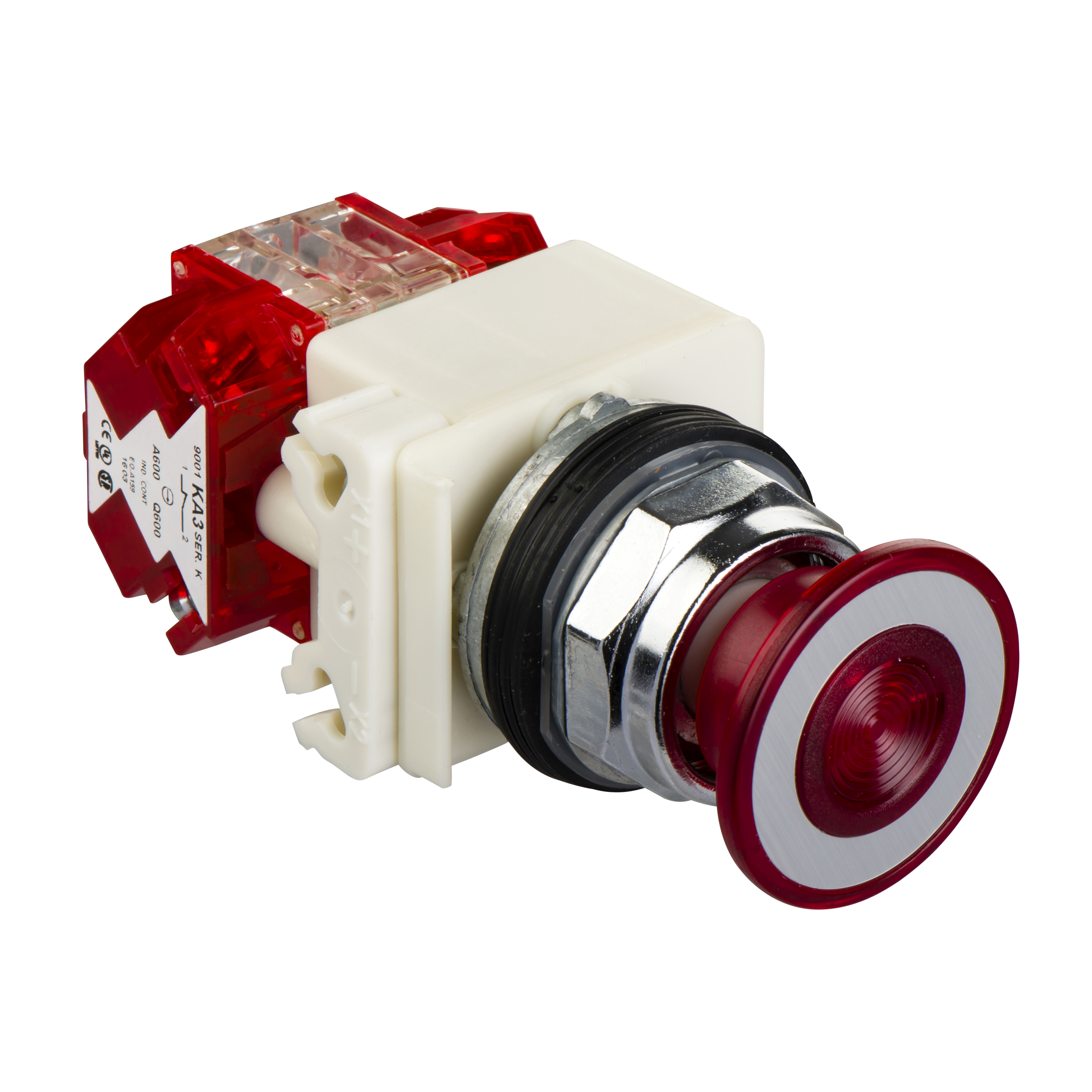

Square D™ 9001KR9P35RH25 PUSH BUTTON 600VAC 10A 30MM T-K
SKUPDW~11655971
MFGR #9001KR9P35RH25
Call For Price
List: SQD 9001KR9P35RH25 PUSH BUTTON 600VAC 10A 30MM T-K
SQD 9001KR9P35RH25 PUSH BUTTON 600VAC 10A 30MM T-K
Action PUSH-PULL Actuator 2 positions Alternate Catalog Number 9001KR9P35RH25 ARRA Compliant N Buy American Compliant N Catalog Number 9001KR9P35RH25 Connection SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Connection Type Cable Connector Contact Rating 10 A 600 VAC Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 Enclosure Type NEMA 1/2/3/3R/4/12/13/IP66 Environmental Conditions -13 to 158 deg F Operation/-40 to 158 deg F Storage EU RoHS Indicator Y Gross Weight Per Pack 2.2680 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 4.8260 in Height [Metric] 4.8260 cm Illumination Type incandescent Indicator BA 9S Insulation 250 V 3)IEC 60947-1 Item Group 21426 Lamp Type Incandescent Length 11.4300 in Length [Metric] 11.4300 cm Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680304&lang=en-us Number of Positions 2 Operating Temperature -25-70 A°C Returnable Y Series 9001K Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 4520-EN/IEC 60947-1-EN/IEC 60947-5-1-EN/IEC 60947-5-4-CSA C22.2 NO 14-UL 508-JIS C 852,UL 508-NEMA Standards PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Sub Brand 9001K Substitute Product Catalog Number 9001KA5 Terminal Type Screw Clamp Type ILLUMINATED MUSHROOM HEAD PUSH-BUTTON UNSPSC 39122216 UPC 11 78590191464 UPC 12 785901914648 Voltage Rating 24...28 V AC/DC Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 5.8420 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1NC-2NC Contact Type Silver Alloy Operator Type Late-Break/Slow Break/41 mm Red Mushroom Size 30 in SCREW-ON PLASTIC MUSHROOM
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | PUSH-PULL |
| Actuator | 2 positions |
| Alternate Catalog Number | 9001KR9P35RH25 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9001KR9P35RH25 |
| Connection | SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Connection Type | Cable Connector |
| Contact Rating | 10 A 600 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| Enclosure Type | NEMA 1/2/3/3R/4/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operation/-40 to 158 deg F Storage |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 4.8260 in |
| Height [Metric] | 4.8260 cm |
| Illumination Type | incandescent |
| Indicator | BA 9S |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Lamp Type | Incandescent |
| Length | 11.4300 in |
| Length [Metric] | 11.4300 cm |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680304&lang=en-us |
| Number of Positions | 2 |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001K |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 4520-EN/IEC 60947-1-EN/IEC 60947-5-1-EN/IEC 60947-5-4-CSA C22.2 NO 14-UL 508-JIS C 852,UL 508-NEMA |
| Standards | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw Clamp |
| Type | ILLUMINATED MUSHROOM HEAD PUSH-BUTTON |
| UNSPSC | 39122216 |
| UPC 11 | 78590191464 |
| UPC 12 | 785901914648 |
| Voltage Rating | 24...28 V AC/DC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.8420 in |
| Width [Metric] | 5.8420 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NC-2NC |
| Contact Type | Silver Alloy |
| Operator Type | Late-Break/Slow Break/41 mm Red Mushroom |
| Size | 30 in |
| SCREW-ON PLASTIC MUSHROOM |
