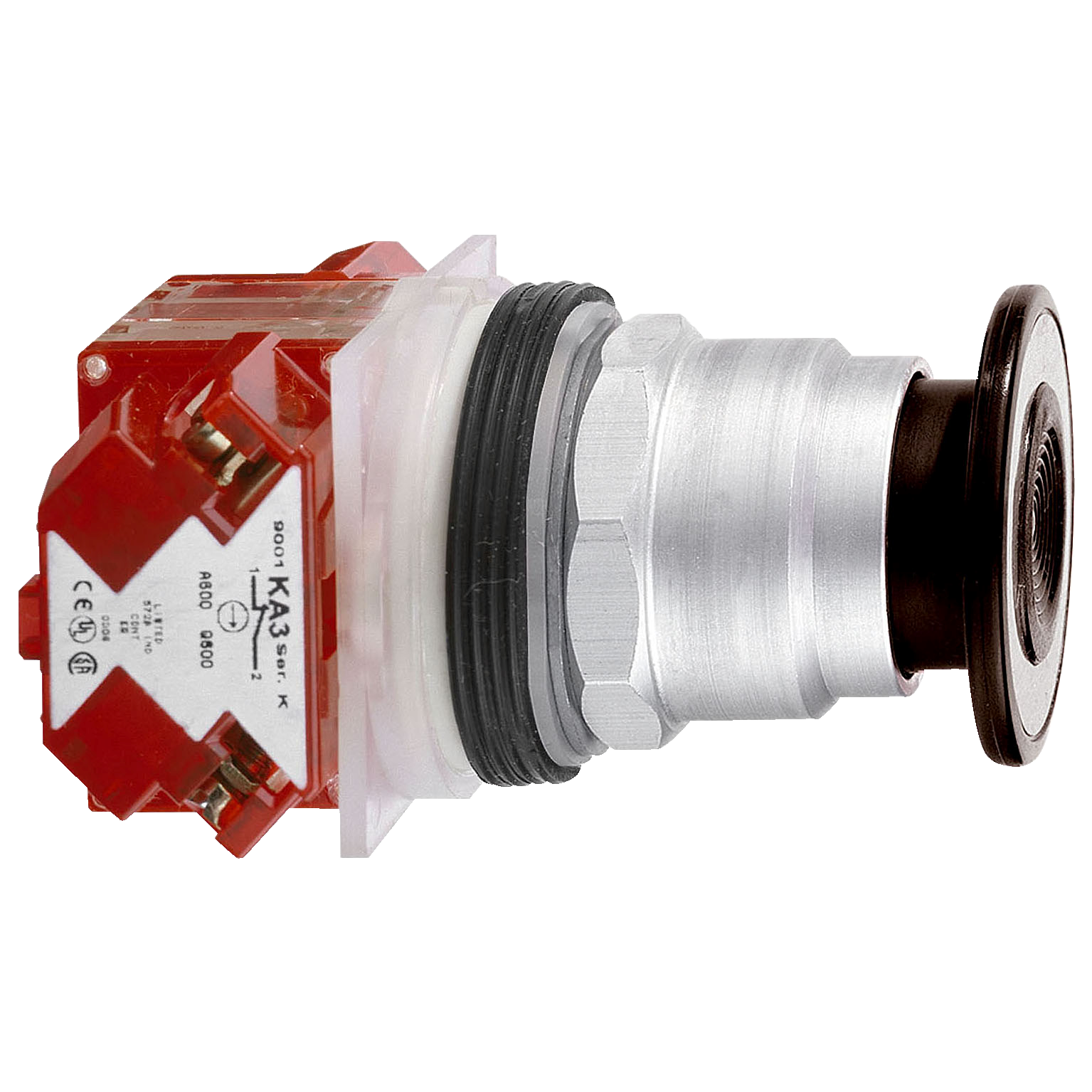

Square D™ 9001KR9BH13 PUSH BUTTON 600VAC
SKU1129660
MFGR #9001KR9BH13
Your Cost: $171.34/ea
List: Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,1 C/O,10A,30 mm,600V,AC15 - DC13,Black,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Screw-On Plastic Mushroom (41mm),UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete non-illuminated mushroom head push-button,complete non-illuminated mushroom head push-button,push-pull,slow-break
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,1 C/O,10A,30 mm,600V,AC15 - DC13,Black,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Screw-On Plastic Mushroom (41mm),UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete non-illuminated mushroom head push-button,complete non-illuminated mushroom head push-button,push-pull,slow-break
Action SLOW-BREAK Actuator Mushroom Head Alternate Catalog Number 9001KR9BH13 Amperage Rating 3 A 240 V, AC-15, A600-Q600 NEMA-0.55 A 125 V, DC-13, A600-Q600 NEMA ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Catalog Number 9001KR9BH13 Connection SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 Contact Mode Maintained/Push-Pull Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6 Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 15.05 Gross Volume per Pack Metric 246.62 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 145.15 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 5.5880 in Height [Metric] 5.5880 cm Indicator BLACK Insulation 250 V 3)EN/IEC 60947-1 Item Group 21426 Length 4.8260 in Length [Metric] 4.8260 cm Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680322&lang=en-us Mounting Panel Mounting Type Panel Number of Positions 2 Operating Temperature -25-70 A°C Returnable Y Series 9001KR Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C 4520-JIS C 852-UL 508-CSA C22.2 NO 14,IP66 IEC 60529,NEMA-UL 508 Sub Brand 9001K Substitute Product Catalog Number 9001KA4 Terminal Type Screw/Clamp Type Type K Heavy Duty Dusttight/Oiltight/Watertight Unmarked UNSPSC 39122216 UPC 11 78590139845 UPC 12 785901398455 Voltage Rating 600 V Warranty Description Contractual Warranty:18 months Width 9.1440 in Width [Metric] 9.1440 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Black Contact Configuration 1CO Contact Type Slow Break Size 30 mm SCREW-ON PLASTIC MUSHROOM This Schneider electric Harmony™ 9001K modular black pushbutton has 2 positions and operates with a stay put mechanism It has a round shape and is supplied with contact block, 40 mm mushroom head and 1NO-1NC contact It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | Mushroom Head |
| Alternate Catalog Number | 9001KR9BH13 |
| Amperage Rating | 3 A 240 V, AC-15, A600-Q600 NEMA-0.55 A 125 V, DC-13, A600-Q600 NEMA |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Catalog Number | 9001KR9BH13 |
| Connection | SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 |
| Contact Mode | Maintained/Push-Pull |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6 |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 15.05 |
| Gross Volume per Pack Metric | 246.62 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 145.15 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 5.5880 in |
| Height [Metric] | 5.5880 cm |
| Indicator | BLACK |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 21426 |
| Length | 4.8260 in |
| Length [Metric] | 4.8260 cm |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680322&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001KR |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C 4520-JIS C 852-UL 508-CSA C22.2 NO 14,IP66 IEC 60529,NEMA-UL 508 |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA4 |
| Terminal Type | Screw/Clamp |
| Type | Type K Heavy Duty Dusttight/Oiltight/Watertight Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590139845 |
| UPC 12 | 785901398455 |
| Voltage Rating | 600 V |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.1440 in |
| Width [Metric] | 9.1440 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Black |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Size | 30 mm |
| SCREW-ON PLASTIC MUSHROOM |
| This Schneider electric Harmony™ 9001K modular black pushbutton has 2 positions and operates with a stay put mechanism |
| It has a round shape and is supplied with contact block, 40 mm mushroom head and 1NO-1NC contact |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
