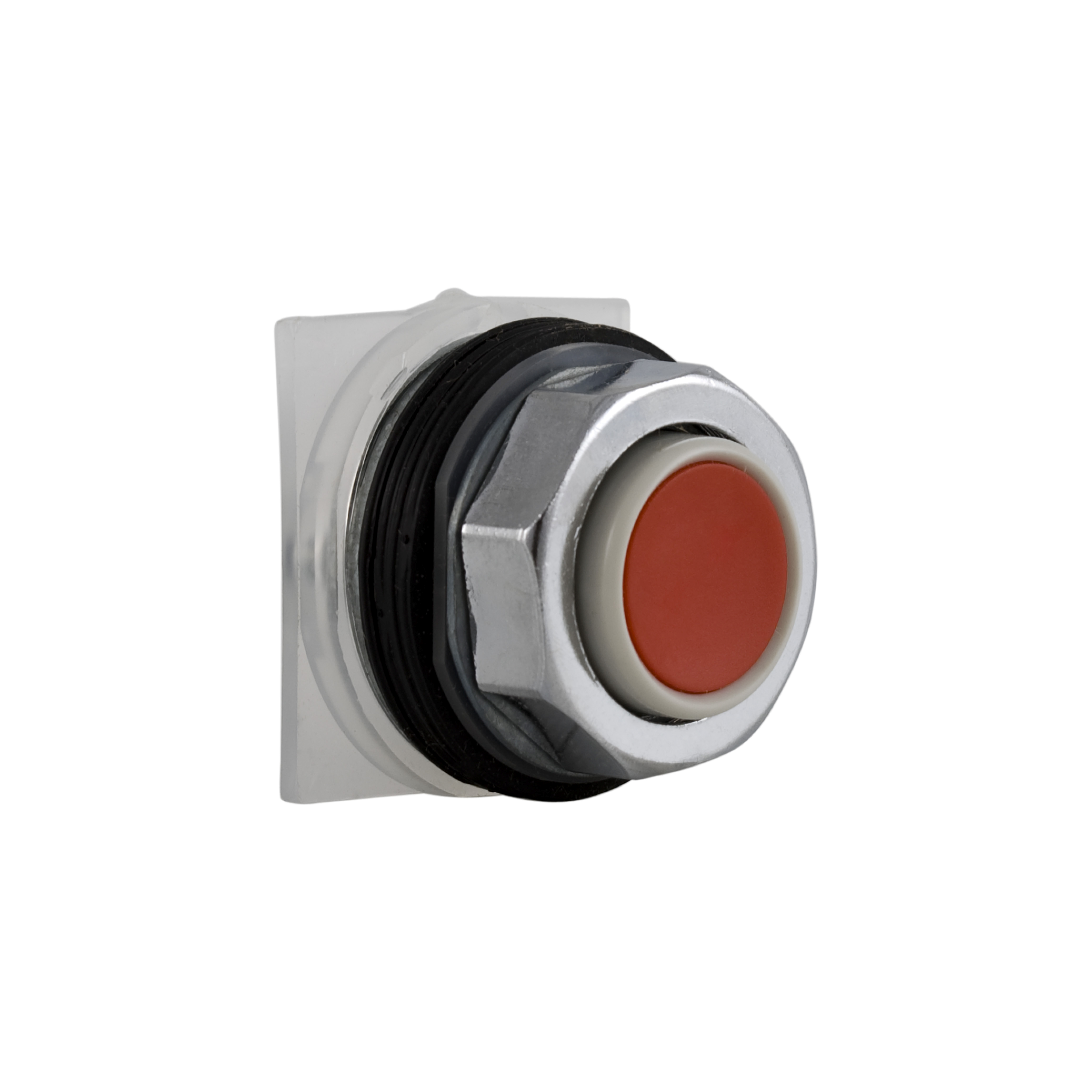

Square D™ 9001KR3R PUSHBUTTON OPERATOR 30
SKU34923
MFGR #9001KR3R
Your Cost: $35.19/ea
List: Schneider Electric 9001KR3R PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS,30mm Round,600V,K,NEMA 1/2/3/3R/4/6/12/13,No Contact Blocks,Panel,Pushbutton,Red,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,unmarked,momentary,non illuminated push-button
Schneider Electric 9001KR3R PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS,30mm Round,600V,K,NEMA 1/2/3/3R/4/6/12/13,No Contact Blocks,Panel,Pushbutton,Red,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,unmarked,momentary,non illuminated push-button
Action SPRING RETURN Actuator RED FLUSH,SPRING RETURN Alternate Catalog Number 9001KR3R Application NON ILLUMINATED PUSH-BUTTON ARRA Compliant N Bezel|Housing Polished Chrome Metal Brand Square D™ Buy American Compliant N Catalog Number 9001KR3R Color Red Contact Configuration NO CONTACT BLOCKS Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contacts Slow Break Country of Origin MX Currency USD Enclosure NEMA 1/2/3/3R/4/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Volume Per Pack 13.52 Gross Volume per Pack Metric 221.55 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 99.79 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908180 Height 7.1120 in Height [Metric] 7.1120 cm Indicator Red Item Group 21426 Length 5.3340 in Length [Metric] 5.3340 cm Manufacturer Schneider Electric Material Metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680370&lang=en-us Mounting Panel Mounting Type Panel Number of Positions 2 Operator Type Spring Return Returnable Y Series 9001KR Size 30 mm Standard UL FILE NUMBER E42259 CCN NKCR - CSA FILE NUMBER LR24590 CLASS 3211-03 - CE MARKED Stock Status NONSTOCK Sub Brand 9001K Substitute Product Catalog Number 9001KA5 Temperature Rating -13 to 158 °F Terminal Type Screw/Clamp Type Type K Dusttight/Oiltight/Watertight Heavy Duty Round Unmarked UNSPSC 39122216 UPC 11 78590187490 UPC 12 785901874904 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 5.8420 cm NON ILLUMINATED PUSH-BUTTON FULL GUARD IN METAL This Schneider electric Harmony™ 9001K modular projecting red pushbutton has 2 positions, operates with spring return mechanism It fits in a 30 mm hole Without contact block Without guard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SPRING RETURN |
| Actuator | RED FLUSH,SPRING RETURN |
| Alternate Catalog Number | 9001KR3R |
| Application | NON ILLUMINATED PUSH-BUTTON |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001KR3R |
| Color | Red |
| Contact Configuration | NO CONTACT BLOCKS |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Contacts | Slow Break |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1/2/3/3R/4/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 13.52 |
| Gross Volume per Pack Metric | 221.55 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 99.79 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908180 |
| Height | 7.1120 in |
| Height [Metric] | 7.1120 cm |
| Indicator | Red |
| Item Group | 21426 |
| Length | 5.3340 in |
| Length [Metric] | 5.3340 cm |
| Manufacturer | Schneider Electric |
| Material | Metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680370&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Number of Positions | 2 |
| Operator Type | Spring Return |
| Returnable | Y |
| Series | 9001KR |
| Size | 30 mm |
| Standard | UL FILE NUMBER E42259 CCN NKCR - CSA FILE NUMBER LR24590 CLASS 3211-03 - CE MARKED |
| Stock Status | NONSTOCK |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA5 |
| Temperature Rating | -13 to 158 °F |
| Terminal Type | Screw/Clamp |
| Type | Type K Dusttight/Oiltight/Watertight Heavy Duty Round Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590187490 |
| UPC 12 | 785901874904 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.8420 in |
| Width [Metric] | 5.8420 cm |
| NON ILLUMINATED PUSH-BUTTON |
| FULL GUARD IN METAL |
| This Schneider electric Harmony™ 9001K modular projecting red pushbutton has 2 positions, operates with spring return mechanism |
| It fits in a 30 mm hole |
| Without contact block |
| Without guard |
