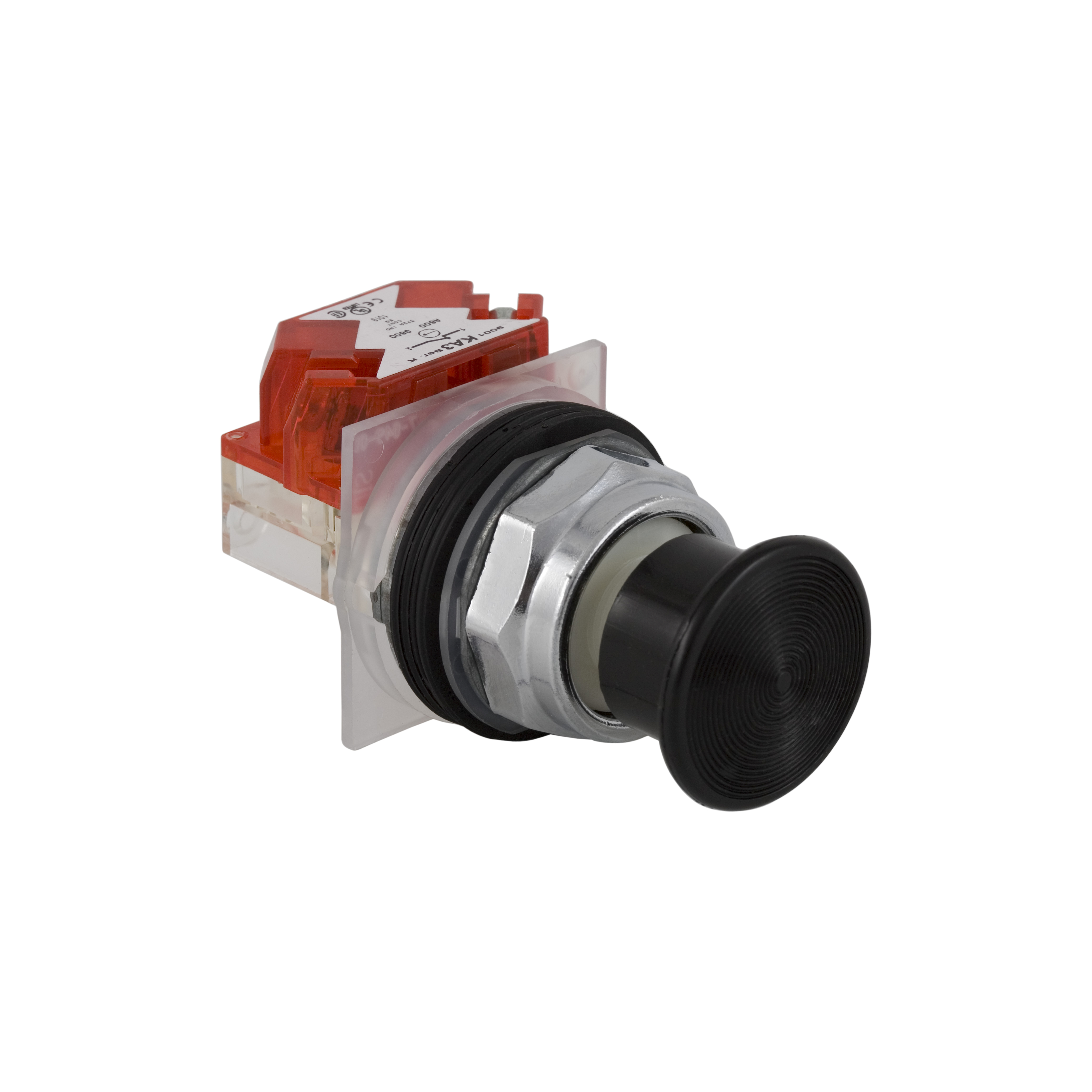

Square D™ 9001KR24BH6 PUSH BUTTON 600VAC
SKUPDW~6438774
MFGR #9001KR24BH6
Your Cost: $175.99/ea
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,1 NC,10A,30 mm,600V,AC15 - DC13,Black,Harmony,NEMA 1/2/3/3R/4/6/12/13,Panel,Pushbutton,Screw Clamp,Screw-On Plastic Mushroom with Set Screw (35mm),UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,unmarked,momentary
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,1 NC,10A,30 mm,600V,AC15 - DC13,Black,Harmony,NEMA 1/2/3/3R/4/6/12/13,Panel,Pushbutton,Screw Clamp,Screw-On Plastic Mushroom with Set Screw (35mm),UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,unmarked,momentary
Action Standard Actuator Black mushroom Ø 35 mm; spring return Alternate Catalog Number 9001KR24BH6 Amperage Rating 10 A, AC-15-10 A, DC-13 ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Catalog Number 9001KR24BH6 Connection Screw clamp terminals Connection Type Screw-On Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure NEMA 1/2/3/3R/4/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/12/13/IP65/IP66 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 2.2680 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 29.0320 in Height [Metric] 29.0320 cm Illumination Type without;Without Indicator Without Item Group 21426 Length 73.7420 in Length [Metric] 73.7420 cm Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=472917&lang=en-us Mounting Panel Mounting Type Panel Returnable N Series 9001KR Standard CSA LR 25490 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR-NEMA-CE Sub Brand K Substitute Product Catalog Number 9001KA3 Terminal Type Screw/Clamp Type Type K Heavy Duty Dusttight/Oiltight/Watertight Mechanically Interlocked UNSPSC 39122216 UPC 11 78590134595 UPC 12 785901345954 Voltage Rating 600 V Warranty Description Contractual Warranty:18 months Width 11.4300 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Black Contact Configuration 1NC Contact Type Slow Break Operator Type Spring Return Size 30 mm SCREW-IN WITH SET SCREW SECURITY Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | Black mushroom Ø 35 mm; spring return |
| Alternate Catalog Number | 9001KR24BH6 |
| Amperage Rating | 10 A, AC-15-10 A, DC-13 |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Catalog Number | 9001KR24BH6 |
| Connection | Screw clamp terminals |
| Connection Type | Screw-On |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1/2/3/3R/4/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/12/13/IP65/IP66 |
| Environmental Conditions | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 29.0320 in |
| Height [Metric] | 29.0320 cm |
| Illumination Type | without;Without |
| Indicator | Without |
| Item Group | 21426 |
| Length | 73.7420 in |
| Length [Metric] | 73.7420 cm |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=472917&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | N |
| Series | 9001KR |
| Standard | CSA LR 25490 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR-NEMA-CE |
| Sub Brand | K |
| Substitute Product Catalog Number | 9001KA3 |
| Terminal Type | Screw/Clamp |
| Type | Type K Heavy Duty Dusttight/Oiltight/Watertight Mechanically Interlocked |
| UNSPSC | 39122216 |
| UPC 11 | 78590134595 |
| UPC 12 | 785901345954 |
| Voltage Rating | 600 V |
| Warranty Description | Contractual Warranty:18 months |
| Width | 11.4300 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Black |
| Contact Configuration | 1NC |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 30 mm |
| SCREW-IN WITH SET SCREW SECURITY |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
