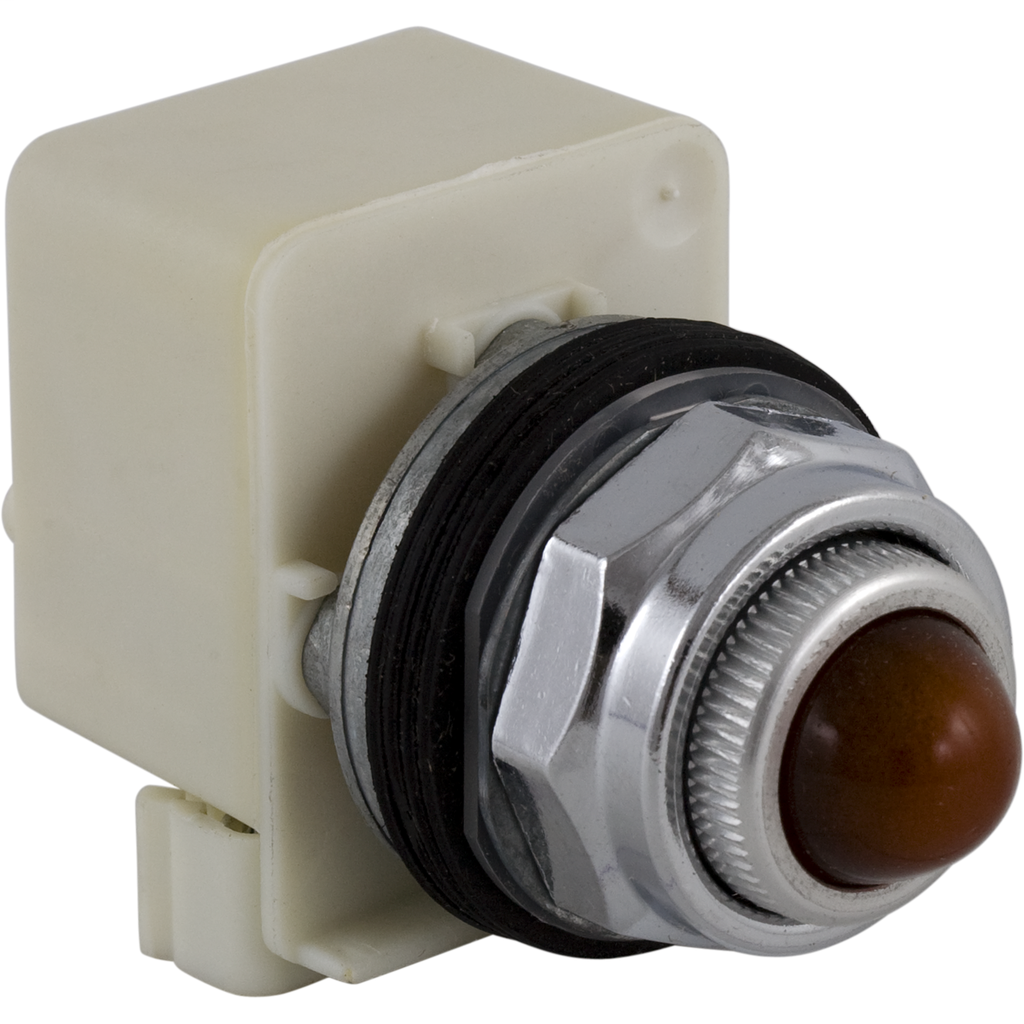

Square D™ 9001KP35R6 PILOT LIGHT 28V 30MM
SKUPDW~6438503
MFGR #9001KP35R6
Your Cost: $130.95/ea
Schneider Electric,PILOT LIGHT 28V 30MM TYPE K +OPTIONS,30mm,Full Voltage 24/28V,Harmony,NEMA 1/2/3/3R/4/6/12/13,Panel,Pilot Light,Round,Signalling,UL, CSA, CE,chromium plated metal,normal
Schneider Electric,PILOT LIGHT 28V 30MM TYPE K +OPTIONS,30mm,Full Voltage 24/28V,Harmony,NEMA 1/2/3/3R/4/6/12/13,Panel,Pilot Light,Round,Signalling,UL, CSA, CE,chromium plated metal,normal
Application SIGNALLING ARRA Compliant N Base BA 9s Base Type BA9s Bezel|Housing Polished Chrome Metal/Thermoplastic Polyester Buy American Compliant N Catalog Number 9001KP35R6 Color Red Country of Origin MX Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Finish Chromium Plated Metal Fixture Type Incandescent Gross Weight Per Pack 0.5000 lb Harmonization Tariff Schedule Code 8531809026 Item Group 21426 Lamp Type Incandescent Lens Color RED Lens Material Glass Mounting Panel Returnable Y Series 9001K Shape Round Size 30 mm Standard UL LISTED FILE E42259 CCN NKCR-CE-CSA LR25490 CLASS 3211 03 Style Style 9/Normal Sub Brand K Substitute Product Catalog Number 9001KA1 Terminal Type Screw/Clamp Type Type K Full Voltage Standard UNSPSC 39121534 UPC 11 785901032908 UPC 12 785901032908 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Lens Type Domed Mounting Type Panel Voltage Rating 24 to 28 VAC//VDC Wattage 1.2 VA SIGNALLING SCREW CLAMP TERMINAL This Schneider electric Harmony™ 9001K red pilot light with glass dome is supplied with 24 VAC/VDC It fits in a 30 mm hole Without legend plates Fingersafe™ contact blocks and light modules for improved safety Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory Low cost incandescent lamps Proven technology Full size and shallow depth light modules
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SIGNALLING |
| ARRA Compliant | N |
| Base | BA 9s |
| Base Type | BA9s |
| Bezel|Housing | Polished Chrome Metal/Thermoplastic Polyester |
| Buy American Compliant | N |
| Catalog Number | 9001KP35R6 |
| Color | Red |
| Country of Origin | MX |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Finish | Chromium Plated Metal |
| Fixture Type | Incandescent |
| Gross Weight Per Pack | 0.5000 lb |
| Harmonization Tariff Schedule Code | 8531809026 |
| Item Group | 21426 |
| Lamp Type | Incandescent |
| Lens Color | RED |
| Lens Material | Glass |
| Mounting | Panel |
| Returnable | Y |
| Series | 9001K |
| Shape | Round |
| Size | 30 mm |
| Standard | UL LISTED FILE E42259 CCN NKCR-CE-CSA LR25490 CLASS 3211 03 |
| Style | Style 9/Normal |
| Sub Brand | K |
| Substitute Product Catalog Number | 9001KA1 |
| Terminal Type | Screw/Clamp |
| Type | Type K Full Voltage Standard |
| UNSPSC | 39121534 |
| UPC 11 | 785901032908 |
| UPC 12 | 785901032908 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Lens Type | Domed |
| Mounting Type | Panel |
| Voltage Rating | 24 to 28 VAC//VDC |
| Wattage | 1.2 VA |
| SIGNALLING |
| SCREW CLAMP TERMINAL |
| This Schneider electric Harmony™ 9001K red pilot light with glass dome is supplied with 24 VAC/VDC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Low cost incandescent lamps |
| Proven technology |
| Full size and shallow depth light modules |
