Square D™

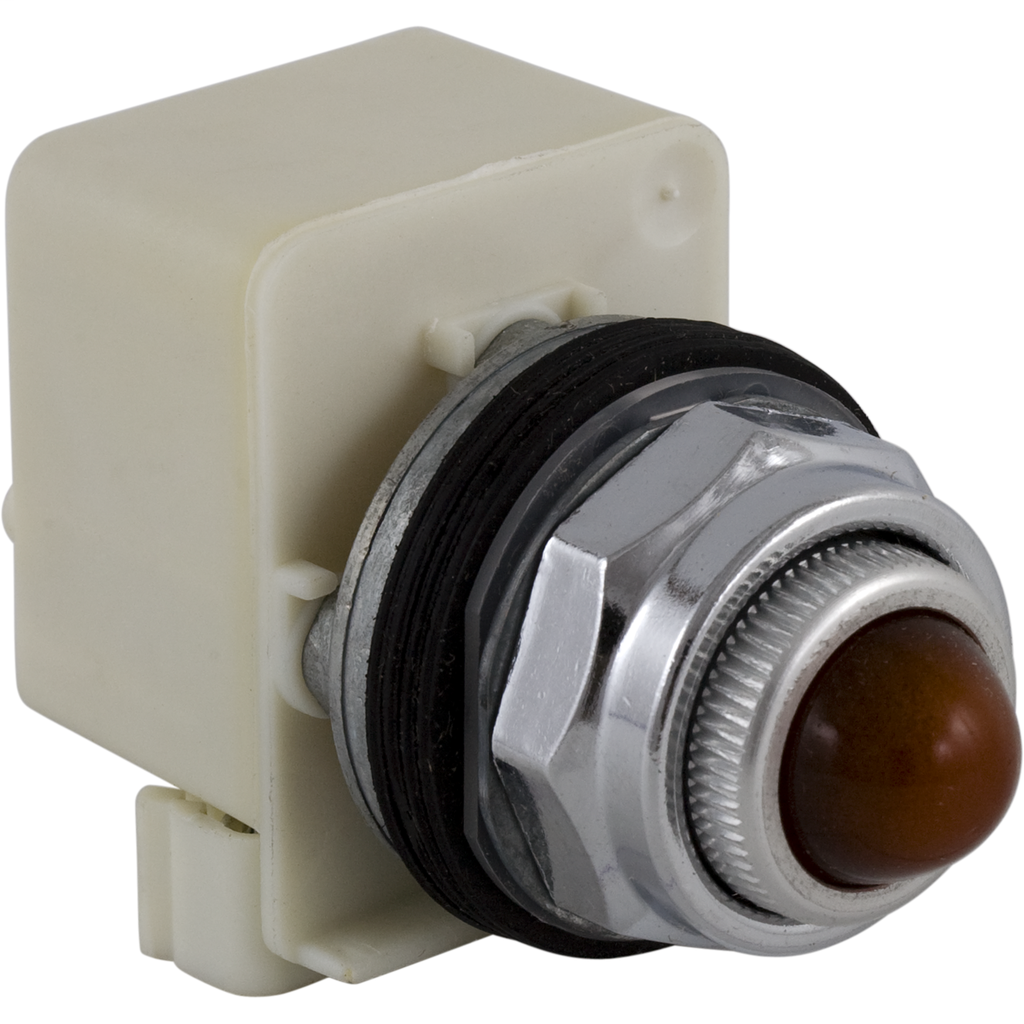

Square D™ 9001KP35LYY6 PILOT LIGHT 28V 30
Custom_Product_Images_Illustration
Square D™
Square D™ 9001KP35LYY6 PILOT LIGHT 28V 30
SKUPDW~6908865
MFGR #9001KP35LYY6
Your Cost: $160.28/ea
Schneider Electric,PILOT LIGHT 28V 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 3R-NEMA 4-NEMA 6-NEMA 13-NEMA 3-NEMA 2-NEMA 12-NEMA 1,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,round,yellow LED
Schneider Electric,PILOT LIGHT 28V 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 3R-NEMA 4-NEMA 6-NEMA 13-NEMA 3-NEMA 2-NEMA 12-NEMA 1,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,round,yellow LED
Application 9001K ARRA Compliant N Average Life 100000 hr Base BA 9s Base Type BA9s Bezel|Housing Polished Chrome Metal/Thermoplastic Polyester Buy American Compliant N Catalog Number 9001KP35LYY6 Color Yellow Country of Origin MX Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Finish Chromium Plated Metal Fixture Type YELLOW LED Gross Weight Per Pack 0.5000 lb Harmonization Tariff Schedule Code 8531809026 Item Group 21426 Lamp Type LED Lens Color Yellow Lens Material Glass Mounting Panel Operating Temperature -25-70 A°C Returnable Y Series 9001K Shape Round Size 30 mm Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-4-EN/IEC 60947-1-JIS C8201-5-1-UL 508-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 852-JIS C8201-1,IP66 IEC 60529,NEMA-UL 508 Style Style 9 Sub Brand 9001K Substitute Product Catalog Number 9001KA1 Terminal Type Screw/Clamp Type Type K Standard UNSPSC 39121534 UPC 11 78590185297 UPC 12 785901852971 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Lens Type Domed Mounting Type Panel Voltage Rating 24 to 28 VAC//VDC Wattage 0.28 VA 9001K IP66 CONFORMING TO IEC 60529 This Schneider electric Harmony™ 9001K yellow pilot light with integral LED and glass dome is supplied with 24 VAC/VDC It fits in a 30 mm hole Without legend plates Fingersafe™ contact blocks and light modules for improved safety Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory Energy efficient, long life LED lamps Full size and shallow depth light modules
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | 9001K |
| ARRA Compliant | N |
| Average Life | 100000 hr |
| Base | BA 9s |
| Base Type | BA9s |
| Bezel|Housing | Polished Chrome Metal/Thermoplastic Polyester |
| Buy American Compliant | N |
| Catalog Number | 9001KP35LYY6 |
| Color | Yellow |
| Country of Origin | MX |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Finish | Chromium Plated Metal |
| Fixture Type | YELLOW LED |
| Gross Weight Per Pack | 0.5000 lb |
| Harmonization Tariff Schedule Code | 8531809026 |
| Item Group | 21426 |
| Lamp Type | LED |
| Lens Color | Yellow |
| Lens Material | Glass |
| Mounting | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001K |
| Shape | Round |
| Size | 30 mm |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-4-EN/IEC 60947-1-JIS C8201-5-1-UL 508-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 852-JIS C8201-1,IP66 IEC 60529,NEMA-UL 508 |
| Style | Style 9 |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA1 |
| Terminal Type | Screw/Clamp |
| Type | Type K Standard |
| UNSPSC | 39121534 |
| UPC 11 | 78590185297 |
| UPC 12 | 785901852971 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Lens Type | Domed |
| Mounting Type | Panel |
| Voltage Rating | 24 to 28 VAC//VDC |
| Wattage | 0.28 VA |
| 9001K |
| IP66 CONFORMING TO IEC 60529 |
| This Schneider electric Harmony™ 9001K yellow pilot light with integral LED and glass dome is supplied with 24 VAC/VDC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Energy efficient, long life LED lamps |
| Full size and shallow depth light modules |
