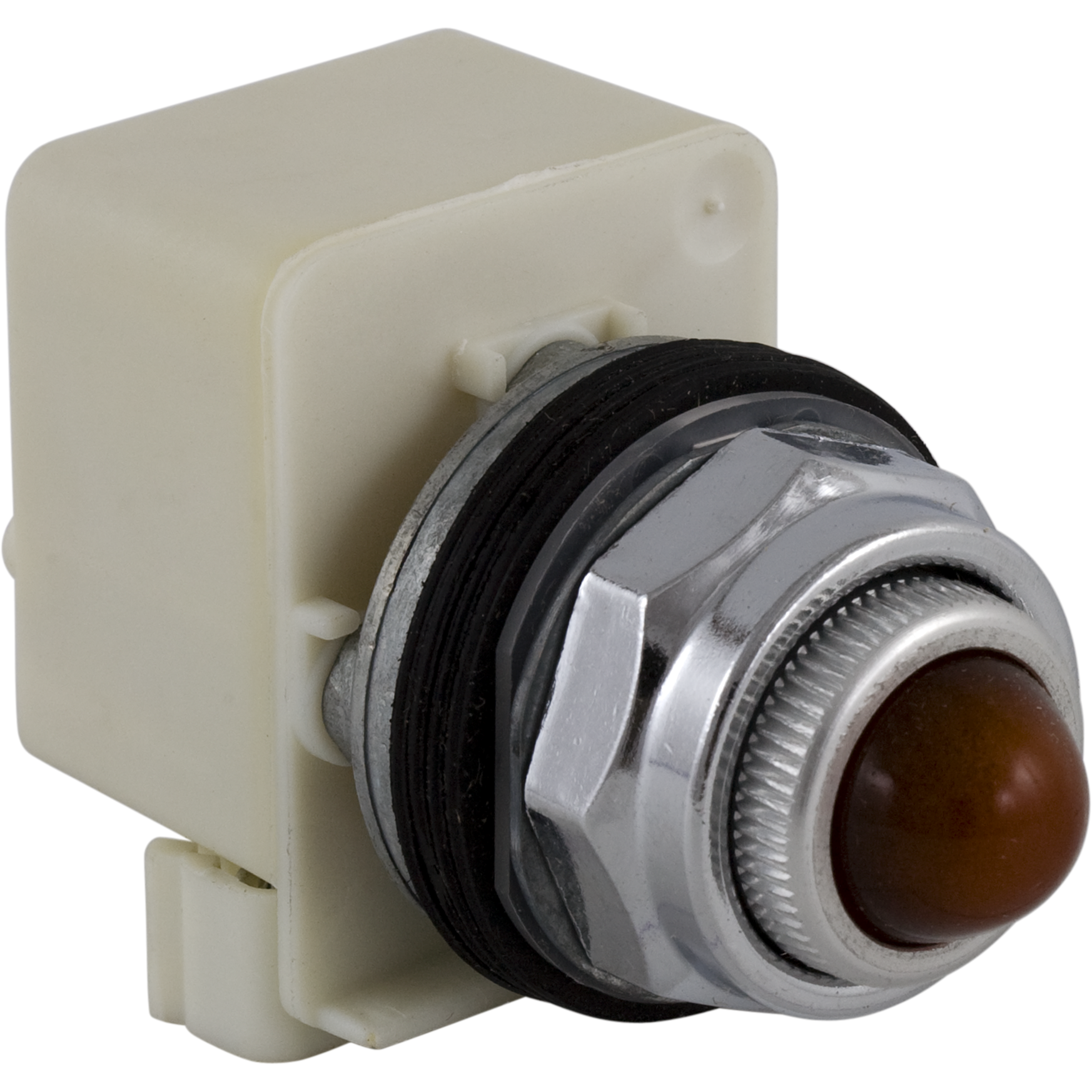

Square D™ 9001KP1C6 PILOT LIGHT 120VAC 30
Pilot Lights
PDW~6438387
MFG #: 9001KP1C6
Square D™
153.00000
/ ea
Schneider Electric,PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 1-NEMA 12-NEMA 2-NEMA 3-NEMA 13-NEMA 6-NEMA 4-NEMA 3R,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,incandescent,round
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001KP1C6_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=65013-002-51.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 82142d35403c62c425f6142bed5ae3b7dfec56fa.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/za0gVi-W-TM(Video)
- WEB LINE DRAWING URL(WEB LINE DRAWING URL)
- WEB ROHS COMPLIANCE URL - Schneider_Electric_9001KP1C6_RoHS.pdf(WEB ROHS COMPLIANCE URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH DRAWING URL - sales?sn=9001KP1C6(WEB TECH DRAWING URL)
- Applications
- Features
| 9001K |
| IP66 CONFORMING TO IEC 60529 |
| This Schneider electric Harmony™ 9001K clear pilot light with transformer and glass dome is supplied with 110 VAC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Low cost incandescent lamps |
| Proven technology |
| Full size and shallow depth light modules |
