Square D™

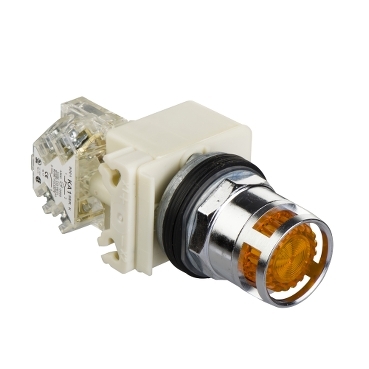

Square D™ 9001K3L35LYAH13 PUSHBUTTON 600V
Custom_Product_Images_Illustration
Square D™
Square D™ 9001K3L35LYAH13 PUSHBUTTON 600V
SKUPDW~6440857
MFGR #9001K3L35LYAH13
Your Cost: $242.00/ea
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM TYPE K OPTI,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,BA 9s,high luminosity LED,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM TYPE K OPTI,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,BA 9s,high luminosity LED,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Action Standard Actuator Flush Alternate Catalog Number 9001K3L35LYAH13 Amperage Rating 10 A ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Catalog Number 9001K3L35LYAH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 2.2680 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509035 Height 4.8260 in Height [Metric] 4.8260 cm Illumination Type LED;High luminosity LED Indicator BA 9S,HIGH LUMINOSITY LED Insulation 250 V 3)IEC 60947-1 Item Group 21426 Lamp Type BA9S LED Length 11.4300 in Length [Metric] 11.4300 cm Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680820&lang=en-us Mounting Panel Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Series 9001K Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 852-CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-1-JIS C 4520-EN/IEC 60947-1-EN/IEC 60947-5-4,NEMA-UL 508 Sub Brand 9001K Substitute Product Catalog Number 9001KA52 Terminal Type Screw/Clamp Type Type K Dusttight/Oiltight/Watertight Heavy Duty Octagonal Unmarked UNSPSC 39122216 UPC 11 78590155100 UPC 12 785901551003 Voltage Rating 24...28 V AC/DC Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 5.8420 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Amber Contact Configuration 1CO Contact Type Slow Break Operator Type Extended Guard Button/Spring Return Size 30 mm EXTENDED METALLIC GUARD This Schneider electric Harmony™ 9001K modular illuminated flush yellow pushbutton is supplied with extended guard and integral LED It is supplied with a 24 VAC/VDC and has 1CO contact It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | Flush |
| Alternate Catalog Number | 9001K3L35LYAH13 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Catalog Number | 9001K3L35LYAH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509035 |
| Height | 4.8260 in |
| Height [Metric] | 4.8260 cm |
| Illumination Type | LED;High luminosity LED |
| Indicator | BA 9S,HIGH LUMINOSITY LED |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Lamp Type | BA9S LED |
| Length | 11.4300 in |
| Length [Metric] | 11.4300 cm |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680820&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001K |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 852-CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-1-JIS C 4520-EN/IEC 60947-1-EN/IEC 60947-5-4,NEMA-UL 508 |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA52 |
| Terminal Type | Screw/Clamp |
| Type | Type K Dusttight/Oiltight/Watertight Heavy Duty Octagonal Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590155100 |
| UPC 12 | 785901551003 |
| Voltage Rating | 24...28 V AC/DC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.8420 in |
| Width [Metric] | 5.8420 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Amber |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Operator Type | Extended Guard Button/Spring Return |
| Size | 30 mm |
| EXTENDED METALLIC GUARD |
| This Schneider electric Harmony™ 9001K modular illuminated flush yellow pushbutton is supplied with extended guard and integral LED |
| It is supplied with a 24 VAC/VDC and has 1CO contact |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
