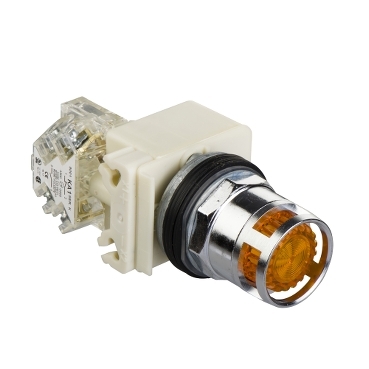

Square D™ 9001K3L35AH13 PUSH BUTTON 600VA
Custom_Product_Images_Illustration
Square D™
Square D™ 9001K3L35AH13 PUSH BUTTON 600VA
SKUPDW~6440836
MFGR #9001K3L35AH13
Price Not Available
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,24 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,24 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Action Standard Actuator AMBER FLUSH, UNMARKED,SPRING RETURN ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Catalog Number 9001K3L35AH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 Enclosure Type NEMA 1/2/3/3R/4/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator N Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Indicator BA 9S,INCANDESCENT Insulation 250 V 3)IEC 60947-1 Item Group 21426 Lamp Type BA9S Incandescent Operating Temperature -25-70 A°C Returnable N Series 9001K Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-1-EN/IEC 60947-5-4-JIS C 852-JIS C 4520-UL 508-EN/IEC 60947-1,IP66 IEC 60529,UL 508-NEMA Sub Brand 9001K Terminal Type Screw/Clamp Type Type K Direct Heavy Duty Octagonal Unmarked UNSPSC 39122216 UPC 11 78590171387 UPC 12 785901713876 Voltage Rating 24...28 V AC/DC Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Amber Contact Configuration 1CO Contact Type Slow Break Operator Type Extended Guard Button/Spring Return Size 30 mm EXTENDED METALLIC GUARD This Schneider electric Harmony™ 9001K modular illuminated flush amber pushbutton is supplied with a full guard It has a chromium plated metal bezel and is supplied with a 24 VAC/VDC integral LED and has 1NO-1NC contacts It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | AMBER FLUSH, UNMARKED,SPRING RETURN |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Catalog Number | 9001K3L35AH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| Enclosure Type | NEMA 1/2/3/3R/4/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Indicator | BA 9S,INCANDESCENT |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Lamp Type | BA9S Incandescent |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | 9001K |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-1-EN/IEC 60947-5-4-JIS C 852-JIS C 4520-UL 508-EN/IEC 60947-1,IP66 IEC 60529,UL 508-NEMA |
| Sub Brand | 9001K |
| Terminal Type | Screw/Clamp |
| Type | Type K Direct Heavy Duty Octagonal Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590171387 |
| UPC 12 | 785901713876 |
| Voltage Rating | 24...28 V AC/DC |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Amber |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Operator Type | Extended Guard Button/Spring Return |
| Size | 30 mm |
| EXTENDED METALLIC GUARD |
| This Schneider electric Harmony™ 9001K modular illuminated flush amber pushbutton is supplied with a full guard |
| It has a chromium plated metal bezel and is supplied with a 24 VAC/VDC integral LED and has 1NO-1NC contacts |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
