Square D™

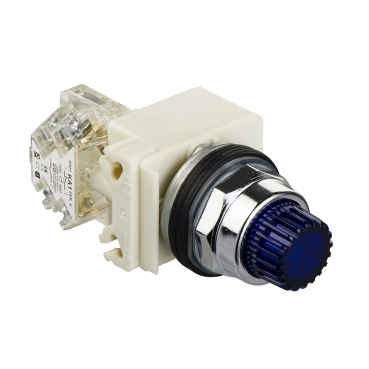

Square D™ 9001K2L38LH13 PUSH BUTTON 600VAC 10A 30MM T-K
Custom_Product_Images_Illustration
Square D™
Square D™ 9001K2L38LH13 PUSH BUTTON 600VAC 10A 30MM T-K
SKUPDW~11651298
MFGR #9001K2L38LH13
Your Cost: $192.76/ea
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,120 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,120 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Action Standard Actuator BLUE PROJECTING, UNMARKED,SPRING RETURN Amperage Rating 0.55 A 125 V, DC-13, A600-Q600 NEMA ARRA Compliant C Buy American Compliant C Catalog Number 9001K2L38LH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Connection Type Cable Connector Contact Mode Standard Contact Rating 10 A 600 VAC Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 Enclosure Type NEMA 1/2/3/3R/4/12/13/IP66 Environmental Conditions -13 to 158 deg F Operation/-40 to 158 deg F Storage/50 gn Shock Resistance EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509035 Height 1.9685 in Indicator BA 9S,INCANDESCENT Insulation 250 V 3)IEC 60947-1 Item Group 21426 Lamp Type Incandescent Length 4.3307 in Operating Temperature -25-70 A°C Returnable N Series 9001K Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-1-UL 508-EN/IEC 60947-5-1-EN/IEC 60947-5-4-JIS C 852-JIS C 4520,IP66 IEC 60529,UL 508-NEMA Sub Brand 9001K Substitute Product Catalog Number 9001KA5 Terminal Type Screw Clamp Type Illuminated push-button UNSPSC 39122216 Voltage Rating 120 VAC//VDC Width 2.3622 in Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1 C/O Contact Type Silver Alloy Operator Type Blue Projecting/Spring Return Size 103 MM,30 MM,42 MM,54 MM WITHOUT GUARD
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | BLUE PROJECTING, UNMARKED,SPRING RETURN |
| Amperage Rating | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 9001K2L38LH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Connection Type | Cable Connector |
| Contact Mode | Standard |
| Contact Rating | 10 A 600 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| Enclosure Type | NEMA 1/2/3/3R/4/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operation/-40 to 158 deg F Storage/50 gn Shock Resistance |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509035 |
| Height | 1.9685 in |
| Indicator | BA 9S,INCANDESCENT |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Lamp Type | Incandescent |
| Length | 4.3307 in |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | 9001K |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-1-UL 508-EN/IEC 60947-5-1-EN/IEC 60947-5-4-JIS C 852-JIS C 4520,IP66 IEC 60529,UL 508-NEMA |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw Clamp |
| Type | Illuminated push-button |
| UNSPSC | 39122216 |
| Voltage Rating | 120 VAC//VDC |
| Width | 2.3622 in |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 C/O |
| Contact Type | Silver Alloy |
| Operator Type | Blue Projecting/Spring Return |
| Size | 103 MM,30 MM,42 MM,54 MM |
| WITHOUT GUARD |
