Square D™
Square D™ 9001K1L7LGGH13 P-BTN 600VAC 10A
Custom_Product_Images_Illustration
Square D™
Square D™ 9001K1L7LGGH13 P-BTN 600VAC 10A
SKUPDW~7522126
MFGR #9001K1L7LGGH13
Your Cost: $242.00/ea
Schneider Electric,P-BTN 600VAC 10A 30MM T-K
Schneider Electric,P-BTN 600VAC 10A 30MM T-K
Action Standard Actuator GREEN FLUSH, UNMARKED,SPRING RETURN Amperage Rating 10 A, AC-15-10 A, DC-13 ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Catalog Number 9001K1L7LGGH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure NEMA 1/2/3/3R/4/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 1.0000 lb Harmonization Tariff Schedule Code 8536509065 Indicator BA 9S Item Group 21426 Lamp Type BA9S LED Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Series 9001K Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,UL LISTED FILE E42259 CCN NKCR-CE-CSA LR 25490 CLASS 3211 03-NEMA Sub Brand 9001K Substitute Product Catalog Number 9001KA2 Terminal Type Screw/Clamp Type Type K Direct Heavy Duty Unmarked UNSPSC 39122216 UPC 11 78590162111 UPC 12 785901621119 Voltage Rating 220...240 V AC 50/60 HZ Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Green Contact Configuration 1CO Contact Type Slow Break Operator Type Full Guard Button/Spring Return Size 30 mm FULL GUARD IN PLASTIC This Schneider electric Harmony™ 9001K modular illuminated flush green pushbutton is supplied with a full guard It has a metal bezel, is supplied with a 240 VAC integral LED and has 1NO-1NC contacts It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | GREEN FLUSH, UNMARKED,SPRING RETURN |
| Amperage Rating | 10 A, AC-15-10 A, DC-13 |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Catalog Number | 9001K1L7LGGH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 1/2/3/3R/4/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.0000 lb |
| Harmonization Tariff Schedule Code | 8536509065 |
| Indicator | BA 9S |
| Item Group | 21426 |
| Lamp Type | BA9S LED |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001K |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,UL LISTED FILE E42259 CCN NKCR-CE-CSA LR 25490 CLASS 3211 03-NEMA |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA2 |
| Terminal Type | Screw/Clamp |
| Type | Type K Direct Heavy Duty Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590162111 |
| UPC 12 | 785901621119 |
| Voltage Rating | 220...240 V AC 50/60 HZ |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Green |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Operator Type | Full Guard Button/Spring Return |
| Size | 30 mm |
| FULL GUARD IN PLASTIC |

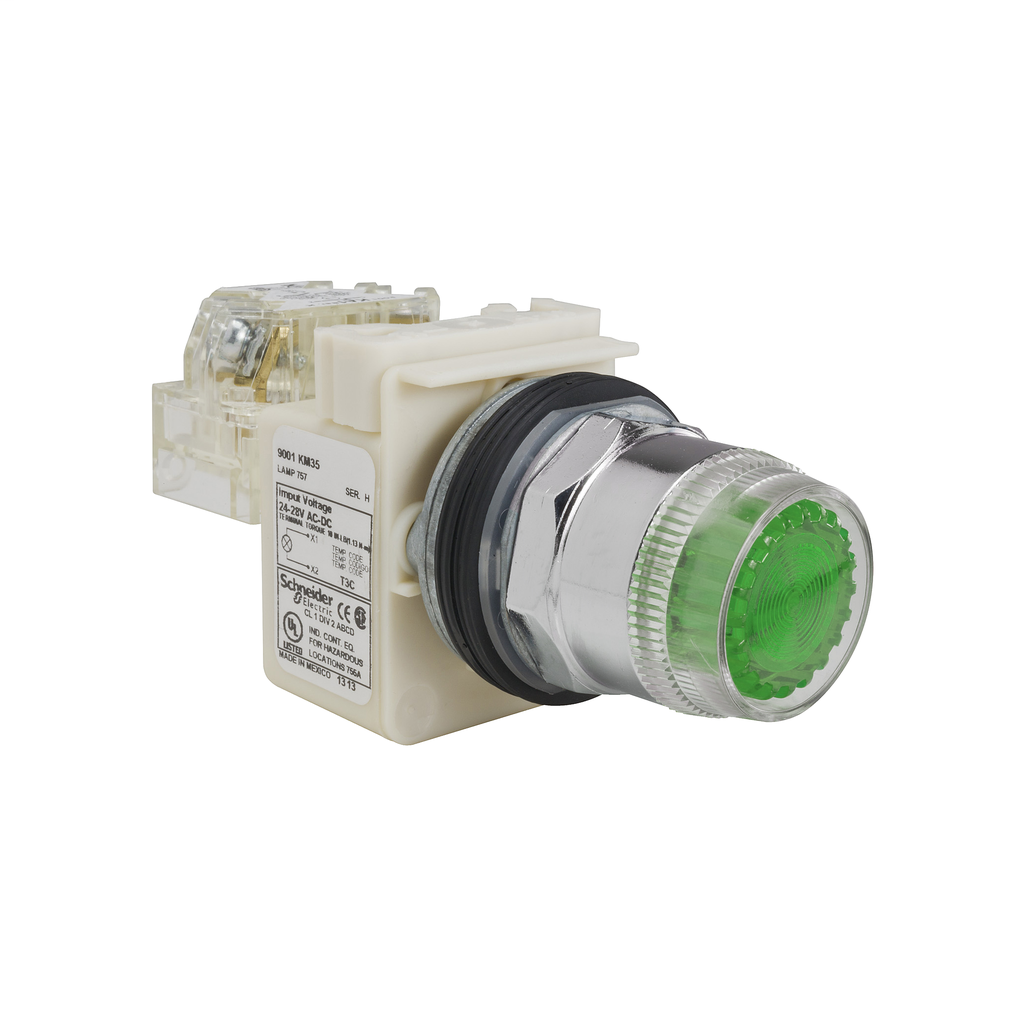

| This Schneider electric Harmony™ 9001K modular illuminated flush green pushbutton is supplied with a full guard |
| It has a metal bezel, is supplied with a 240 VAC integral LED and has 1NO-1NC contacts |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
