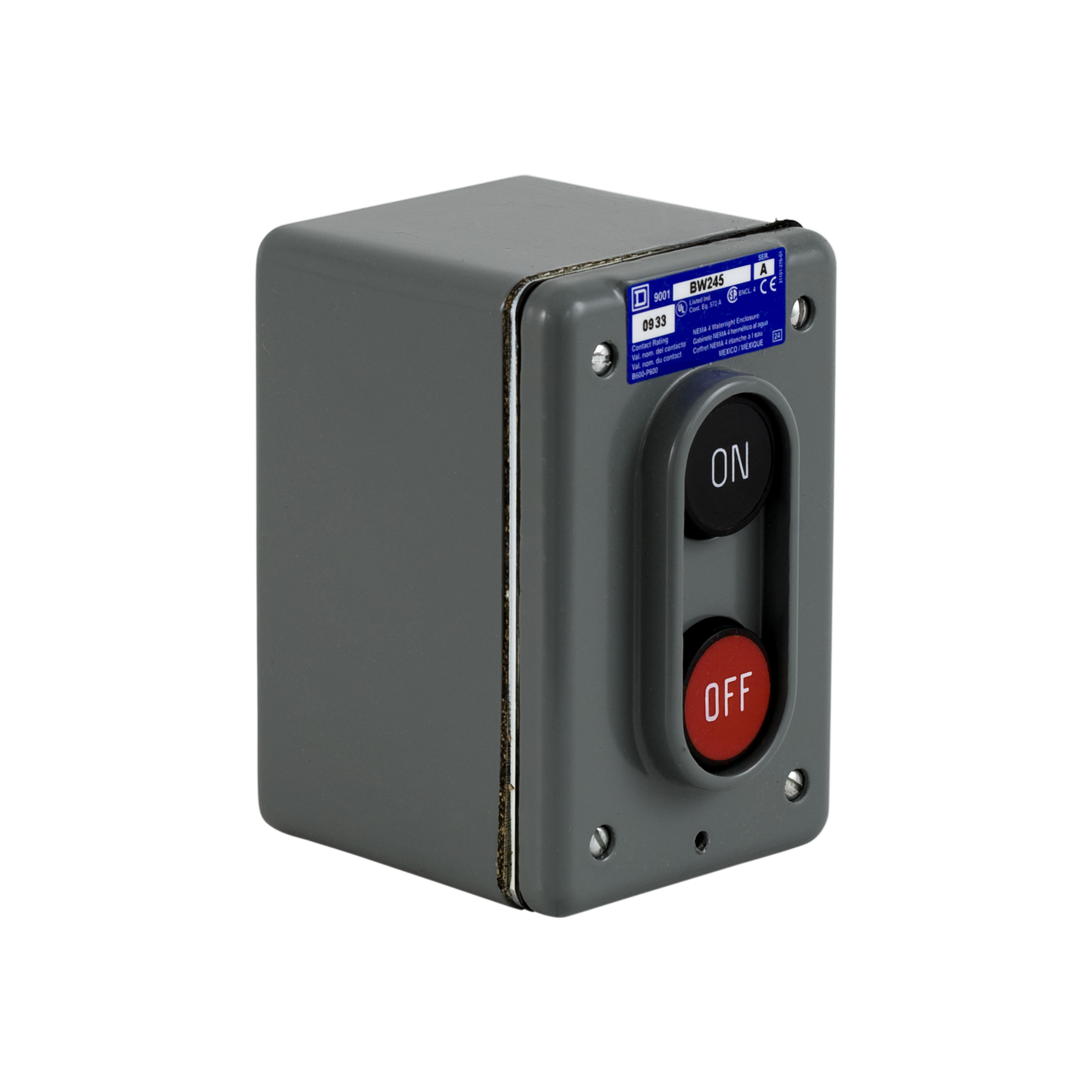

Square D™ 9001BW245 CONTROL STATION 600VA
SKU585141
MFGR #9001BW245
Your Cost: $312.86/ea
Square D 9001BW245 CONTROL STATION 600VAC 5AMP TYPE B,1 NO + 1 NC,1 NO + 1 NC,grey,1 entry for 1/2 - 14 NPT,2 flush push-buttons,momentary,5A,600V,NEMA 4-NEMA 1,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked,Water tight and Dust tight (Indoor/Outdoor),complete control station,surface
Square D 9001BW245 CONTROL STATION 600VAC 5AMP TYPE B,1 NO + 1 NC,1 NO + 1 NC,grey,1 entry for 1/2 - 14 NPT,2 flush push-buttons,momentary,5A,600V,NEMA 4-NEMA 1,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked,Water tight and Dust tight (Indoor/Outdoor),complete control station,surface
Action 1 NO + 1 NC Alternate Catalog Number 9001BW245 Application TWO FUNCTIONS ARRA Compliant N Buy American Compliant N Catalog Number 9001BW245 Color Gray Conduit Connection 1 ENTRY FOR 1/2IN - 14 NPT Connection Screw Clamp Connection Type Screw Clamp Contact Mode Momentary Control Output 1 NO + 1 NC Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 4 Environmental Conditions Indoor/Outdoor EU RoHS Indicator Y Gross Weight Per Pack 1.9700 lb Gross Weight per Pack Metric 893.12 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8537109170 Height 8.8900 in Height [Metric] 8.8900 cm Interface 1 FLUSH PUSH-BUTTON, BLACK, WHITE ON-1 FLUSH PUSH-BUTTON, RED, WHITE OFF Item Group 21421 Legend ON-OFF Legend Color White Length 12.7000 in Length [Metric] 12.7000 cm Material Die Cast Zinc Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460203&lang=en-us Mounting Surface Mounting Type Surface Operating Temperature -13 to 158 °F Operator Type Push Button Returnable Y Series 9001B Standard JIS C 4520-EN/IEC 60947-1-EN/IEC 60947-5-4-EN/IEC 60947-5-1-EN/IEC 60947-5-5-UL 508-CSA C22.2 NO 14,NEMA 1-NEMA 4,UL LISTED-CSA Sub Brand 9001BW Type Type BW UNSPSC 39121565 UPC 11 78590185769 UPC 12 785901857693 Warranty Description Contractual Warranty:18 months Width 7.6200 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 5 A Contact Configuration 1NO-1NC NEMA Rating NEMA 1/4 Number of Operators 1 Voltage Rating 600 VAC Two functions 1 NO + 1 NC,GREY
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | 1 NO + 1 NC |
| Alternate Catalog Number | 9001BW245 |
| Application | TWO FUNCTIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9001BW245 |
| Color | Gray |
| Conduit Connection | 1 ENTRY FOR 1/2IN - 14 NPT |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Contact Mode | Momentary |
| Control Output | 1 NO + 1 NC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 4 |
| Environmental Conditions | Indoor/Outdoor |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.9700 lb |
| Gross Weight per Pack Metric | 893.12 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 8.8900 in |
| Height [Metric] | 8.8900 cm |
| Interface | 1 FLUSH PUSH-BUTTON, BLACK, WHITE ON-1 FLUSH PUSH-BUTTON, RED, WHITE OFF |
| Item Group | 21421 |
| Legend | ON-OFF |
| Legend Color | White |
| Length | 12.7000 in |
| Length [Metric] | 12.7000 cm |
| Material | Die Cast Zinc |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460203&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Operating Temperature | -13 to 158 °F |
| Operator Type | Push Button |
| Returnable | Y |
| Series | 9001B |
| Standard | JIS C 4520-EN/IEC 60947-1-EN/IEC 60947-5-4-EN/IEC 60947-5-1-EN/IEC 60947-5-5-UL 508-CSA C22.2 NO 14,NEMA 1-NEMA 4,UL LISTED-CSA |
| Sub Brand | 9001BW |
| Type | Type BW |
| UNSPSC | 39121565 |
| UPC 11 | 78590185769 |
| UPC 12 | 785901857693 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.6200 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 5 A |
| Contact Configuration | 1NO-1NC |
| NEMA Rating | NEMA 1/4 |
| Number of Operators | 1 |
| Voltage Rating | 600 VAC |
| Two functions |
| 1 NO + 1 NC,GREY |
