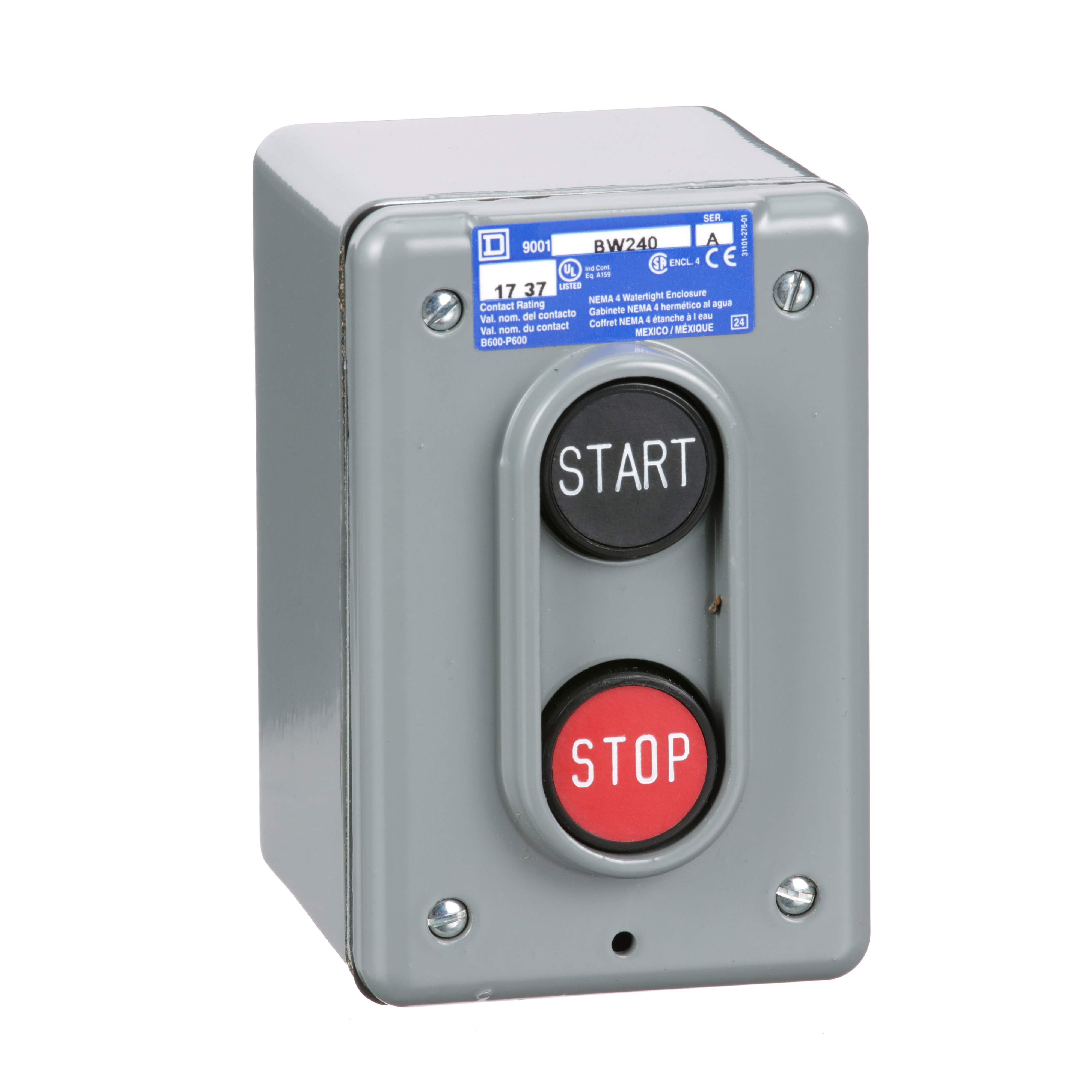

Square D™ 9001BW240 Harmony™ 9001B Type BW Pushbutton Control Station, 600 VAC, 5 A, 1NO, 2 Operators, NEMA 4
Custom_Product_Images_Illustration
Square D™
Square D™ 9001BW240 Harmony™ 9001B Type BW Pushbutton Control Station, 600 VAC, 5 A, 1NO, 2 Operators, NEMA 4
SKU33369
MFGR #9001BW240
Call For Price
List: Square D 9001BW240 CONTROL STATION 600VAC 5A T-B,1 NO/1 NC,2 projecting push-buttons,5A,600V,Control Station,NEMA 4,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked,Water tight and Dust tight (Indoor/Outdoor)
Square D 9001BW240 CONTROL STATION 600VAC 5A T-B,1 NO/1 NC,2 projecting push-buttons,5A,600V,Control Station,NEMA 4,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked,Water tight and Dust tight (Indoor/Outdoor)
Action 1 NO + 1 NC Alternate Catalog Number 9001BW240 Amperage Rating 5 A ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9001BW240 Connection Screw Clamp Terminal Connection Type Screw Clamp Contact Configuration 1NO-1NC Contact Mode Momentary Contact Rating 5 A at 600 VAC Control Output 1 NO + 1 NC Country of Origin MX Currency USD Dimensions 4.25 in H x 2.76 in W x 3.6 in D Enclosure NEMA 4 Environmental Conditions Indoor/Outdoor EU RoHS Indicator Y Gross Volume Per Pack 68.95 Gross Volume per Pack Metric 1129.92 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0107 lb Gross Weight per Pack Metric 1.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509031 Height 7.9000 in Height [Metric] 7.9000 cm Interface 2 PUSH-BUTTONS START-STOP Item Group 21421 Legend START-STOP Length 12.2000 in Length [Metric] 12.2000 cm Manufacturer Schneider Electric Material Die Cast Zinc Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460183&lang=en-us Mounting Surface Mounting Type Surface NEMA Rating NEMA 4 Number of Operators 2 Operator Type Push Button Returnable Y Series 9001B Standard CE-CSA LR25490 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR,NEMA 4 Standards CE Certified, CSA File No. LR25490 Class 3211 03, UL File No. E42259 Stock Status NORMALLY STOCKED Sub Brand 9001BW Type Type BW Complete UNSPSC 39121565 UPC 11 78590145875 UPC 12 785901458753 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 9.7000 in Width [Metric] 9.7000 cm 1 NO + 1 NC Dust and damp proof Indoor/outdoor installation 1/2-14 NPT cable entry
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | 1 NO + 1 NC |
| Alternate Catalog Number | 9001BW240 |
| Amperage Rating | 5 A |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001BW240 |
| Connection | Screw Clamp Terminal |
| Connection Type | Screw Clamp |
| Contact Configuration | 1NO-1NC |
| Contact Mode | Momentary |
| Contact Rating | 5 A at 600 VAC |
| Control Output | 1 NO + 1 NC |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.25 in H x 2.76 in W x 3.6 in D |
| Enclosure | NEMA 4 |
| Environmental Conditions | Indoor/Outdoor |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 68.95 |
| Gross Volume per Pack Metric | 1129.92 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0107 lb |
| Gross Weight per Pack Metric | 1.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509031 |
| Height | 7.9000 in |
| Height [Metric] | 7.9000 cm |
| Interface | 2 PUSH-BUTTONS START-STOP |
| Item Group | 21421 |
| Legend | START-STOP |
| Length | 12.2000 in |
| Length [Metric] | 12.2000 cm |
| Manufacturer | Schneider Electric |
| Material | Die Cast Zinc |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460183&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| NEMA Rating | NEMA 4 |
| Number of Operators | 2 |
| Operator Type | Push Button |
| Returnable | Y |
| Series | 9001B |
| Standard | CE-CSA LR25490 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR,NEMA 4 |
| Standards | CE Certified, CSA File No. LR25490 Class 3211 03, UL File No. E42259 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | 9001BW |
| Type | Type BW Complete |
| UNSPSC | 39121565 |
| UPC 11 | 78590145875 |
| UPC 12 | 785901458753 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.7000 in |
| Width [Metric] | 9.7000 cm |
| 1 NO + 1 NC |
| Dust and damp proof |
| Indoor/outdoor installation |
| 1/2-14 NPT cable entry |
