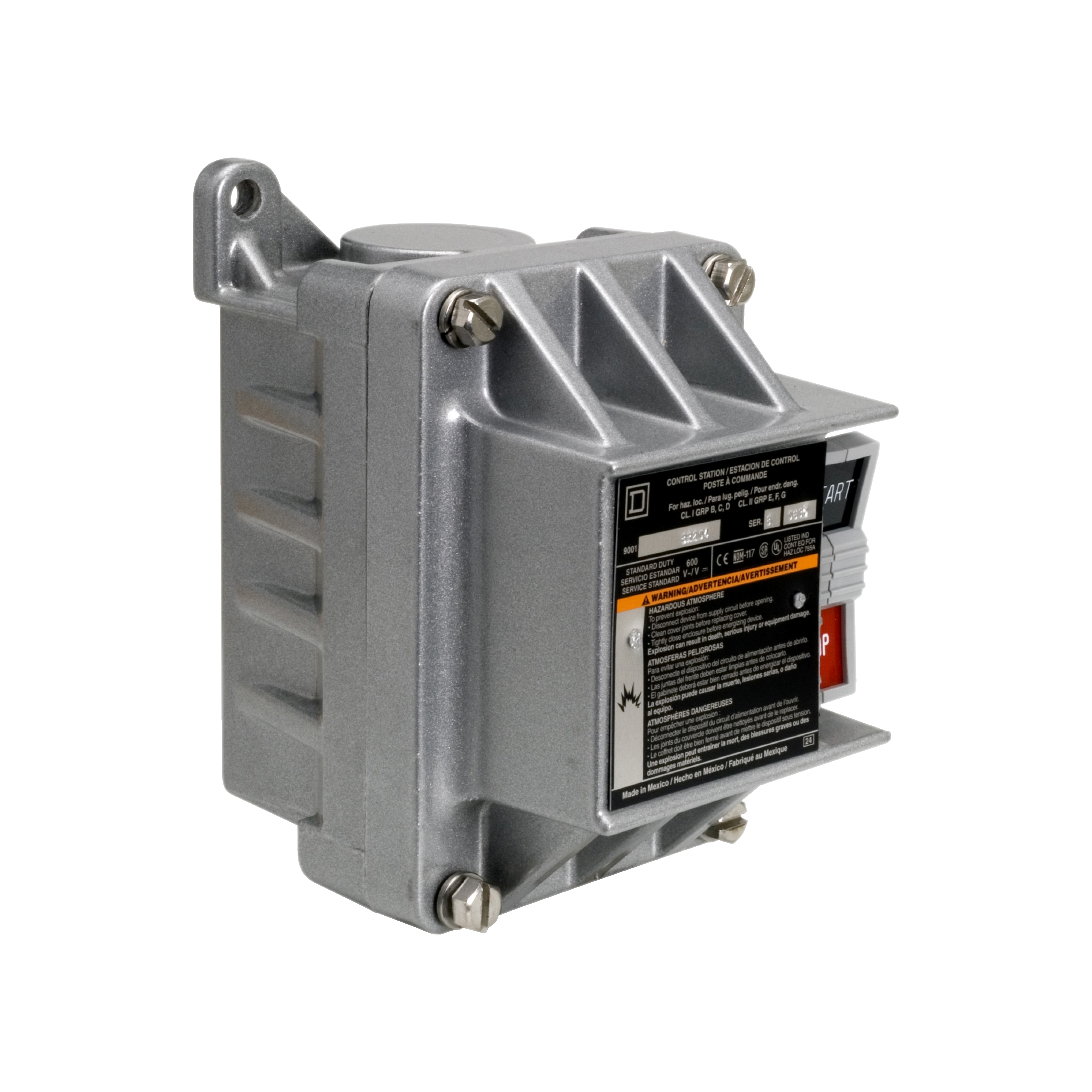

Square D™ 9001BR204 Harmony™ 9001B Type BR Pushbutton Control Station, 600 VAC, 5 A, 1NO-1NC, 2 Operators, NEMA 7/9
Custom_Product_Images_Illustration
Square D™ 9001BR204 Harmony™ 9001B Type BR Pushbutton Control Station, 600 VAC, 5 A, 1NO-1NC, 2 Operators, NEMA 7/9
SKU317355
MFGR #9001BR204
Your Cost: $330.84/ea
List: Square D 9001BR204 CONTROL STATION 600VAC 5A T-B,1 NO/1 NC,2 projecting push-buttons,5A,600V,Control Station,For Hazardous Location Usage - Explosion Proof (Indoor),NEMA 7/9,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked
Square D 9001BR204 CONTROL STATION 600VAC 5A T-B,1 NO/1 NC,2 projecting push-buttons,5A,600V,Control Station,For Hazardous Location Usage - Explosion Proof (Indoor),NEMA 7/9,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked
Action 1 NO + 1 NC Alternate Catalog Number 9001BR204 Amperage Rating 5 A ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9001BR204 Connection Screw Clamp Terminal Connection Type Screw Clamp Contact Configuration 1NO-1NC Contact Mode Momentary Contact Rating 5 A at 600 VAC Control Output 1 NO + 1 NC Country of Origin MX Currency USD Dimensions 6.36 in H x 3.95 in W x 4.35 in D Enclosure NEMA 7/9 Environmental Conditions Indoor EU RoHS Indicator Y Gross Volume Per Pack 402.00 Gross Volume per Pack Metric 6587.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.5100 lb Gross Weight per Pack Metric 1.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509033 Height 17.0180 in Height [Metric] 11.9000 cm Interface 2 PUSH-BUTTONS START-STOP Item Group 21421 Legend Start-Stop Length 20.3200 in Length [Metric] 17.8000 cm Manufacturer Schneider Electric Material Aluminum Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460137&lang=en-us Mounting Surface Mounting Type Surface NEMA Rating NEMA 7/9 Number of Operators 2 Returnable Y Series 9001B Standard CE-CSA LR25490 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR,NEMA 7/9 Standards CSA File No. LR25490 Class 3211 03CE CertifiedUL File No. E42259 Stock Status NONSTOCK Sub Brand 9001BR Type Type BR UNSPSC 39121565 UPC 11 78590160088 UPC 12 785901600886 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 19.0500 in Width [Metric] 14.0000 cm 1 NO + 1 NC Hazardous location Indoor installation 1/2-14 NPT cable entry
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | 1 NO + 1 NC |
| Alternate Catalog Number | 9001BR204 |
| Amperage Rating | 5 A |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001BR204 |
| Connection | Screw Clamp Terminal |
| Connection Type | Screw Clamp |
| Contact Configuration | 1NO-1NC |
| Contact Mode | Momentary |
| Contact Rating | 5 A at 600 VAC |
| Control Output | 1 NO + 1 NC |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.36 in H x 3.95 in W x 4.35 in D |
| Enclosure | NEMA 7/9 |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 402.00 |
| Gross Volume per Pack Metric | 6587.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.5100 lb |
| Gross Weight per Pack Metric | 1.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509033 |
| Height | 17.0180 in |
| Height [Metric] | 11.9000 cm |
| Interface | 2 PUSH-BUTTONS START-STOP |
| Item Group | 21421 |
| Legend | Start-Stop |
| Length | 20.3200 in |
| Length [Metric] | 17.8000 cm |
| Manufacturer | Schneider Electric |
| Material | Aluminum |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460137&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| NEMA Rating | NEMA 7/9 |
| Number of Operators | 2 |
| Returnable | Y |
| Series | 9001B |
| Standard | CE-CSA LR25490 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR,NEMA 7/9 |
| Standards | CSA File No. LR25490 Class 3211 03CE CertifiedUL File No. E42259 |
| Stock Status | NONSTOCK |
| Sub Brand | 9001BR |
| Type | Type BR |
| UNSPSC | 39121565 |
| UPC 11 | 78590160088 |
| UPC 12 | 785901600886 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.0500 in |
| Width [Metric] | 14.0000 cm |
| 1 NO + 1 NC |
| Hazardous location |
| Indoor installation |
| 1/2-14 NPT cable entry |
