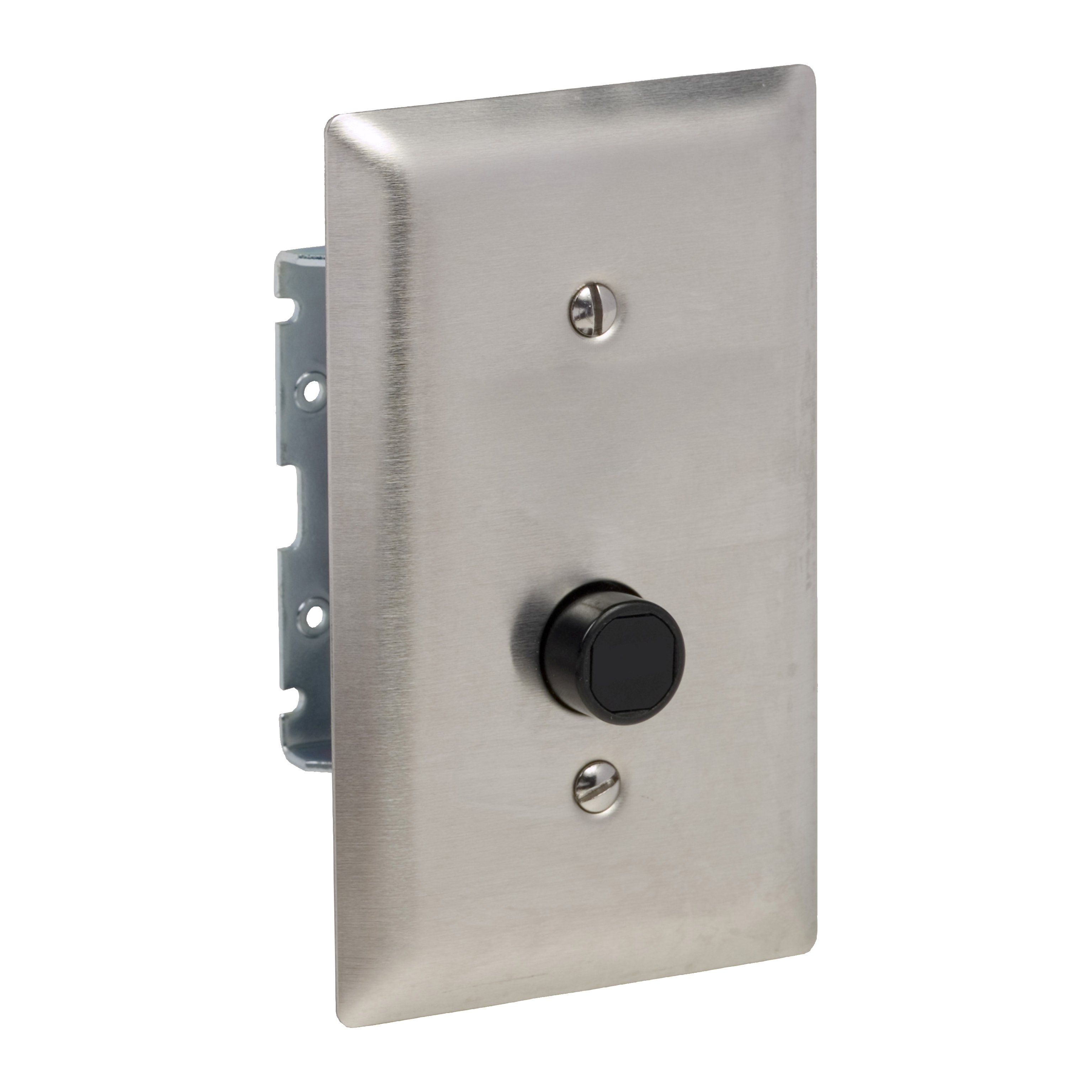

Square D™ 9001BF107 CONTROL STATION 600VA
SKU430348
MFGR #9001BF107
Your Cost: $128.62/ea
Square D 9001BF107 CONTROL STATION 600VAC 5A T-B,1 NO + 1 NC,1 NO + 1 NC,grey,1 projecting push-button,momentary,5A,600V,Flush Plate - General Purpose (Indoor),NEMA 1,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked,complete control station,flush
Square D 9001BF107 CONTROL STATION 600VAC 5A T-B,1 NO + 1 NC,1 NO + 1 NC,grey,1 projecting push-button,momentary,5A,600V,Flush Plate - General Purpose (Indoor),NEMA 1,Screw Clamp,UL Listed File E42259 CCN NKCR - CSA Certified File LR 25490 Class 3211 03 - CE Marked,complete control station,flush
Action 1 NO + 1 NC Alternate Catalog Number 9001BF107 Amperage Rating 5 A 600 V, AC Application Two functions ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9001BF107 Connection Screw Clamp Control Output 1 NO + 1 NC Country of Origin MX Enclosure NEMA 1 Environmental Conditions Indoor EU RoHS Indicator Y Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 453.59 Gross Weight UOM Metric g Height 12.58 in Height [Metric] 32.2580 cm Interface 1 PUSH-BUTTON WITHOUT MARKING Item Group 21421 Length 31.95 in Length [Metric] 81.9350 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459813&lang=en-us Mounting Flush Operating Temperature -25-70 A°C Returnable N Standard NEMA 1,UL LISTED FILE E42259 CCN NKCR-CSA LR25490 CLASS 3211 03 Stock Status NONSTOCK Sub Brand 9001BF Type COMPLETE CONTROL STATION UNSPSC 39121565 UPC 11 78590139041 UPC 12 785901390411 Voltage Rating 600 V Warranty Description Contractual Warranty:18 months Width 4.95 in Width [Metric] 12.7000 cm Two functions 1 NO + 1 NC,GREY
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | 1 NO + 1 NC |
| Alternate Catalog Number | 9001BF107 |
| Amperage Rating | 5 A 600 V, AC |
| Application | Two functions |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001BF107 |
| Connection | Screw Clamp |
| Control Output | 1 NO + 1 NC |
| Country of Origin | MX |
| Enclosure | NEMA 1 |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 453.59 |
| Gross Weight UOM Metric | g |
| Height | 12.58 in |
| Height [Metric] | 32.2580 cm |
| Interface | 1 PUSH-BUTTON WITHOUT MARKING |
| Item Group | 21421 |
| Length | 31.95 in |
| Length [Metric] | 81.9350 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459813&lang=en-us |
| Mounting | Flush |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Standard | NEMA 1,UL LISTED FILE E42259 CCN NKCR-CSA LR25490 CLASS 3211 03 |
| Stock Status | NONSTOCK |
| Sub Brand | 9001BF |
| Type | COMPLETE CONTROL STATION |
| UNSPSC | 39121565 |
| UPC 11 | 78590139041 |
| UPC 12 | 785901390411 |
| Voltage Rating | 600 V |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.95 in |
| Width [Metric] | 12.7000 cm |
| Two functions |
| 1 NO + 1 NC,GREY |
