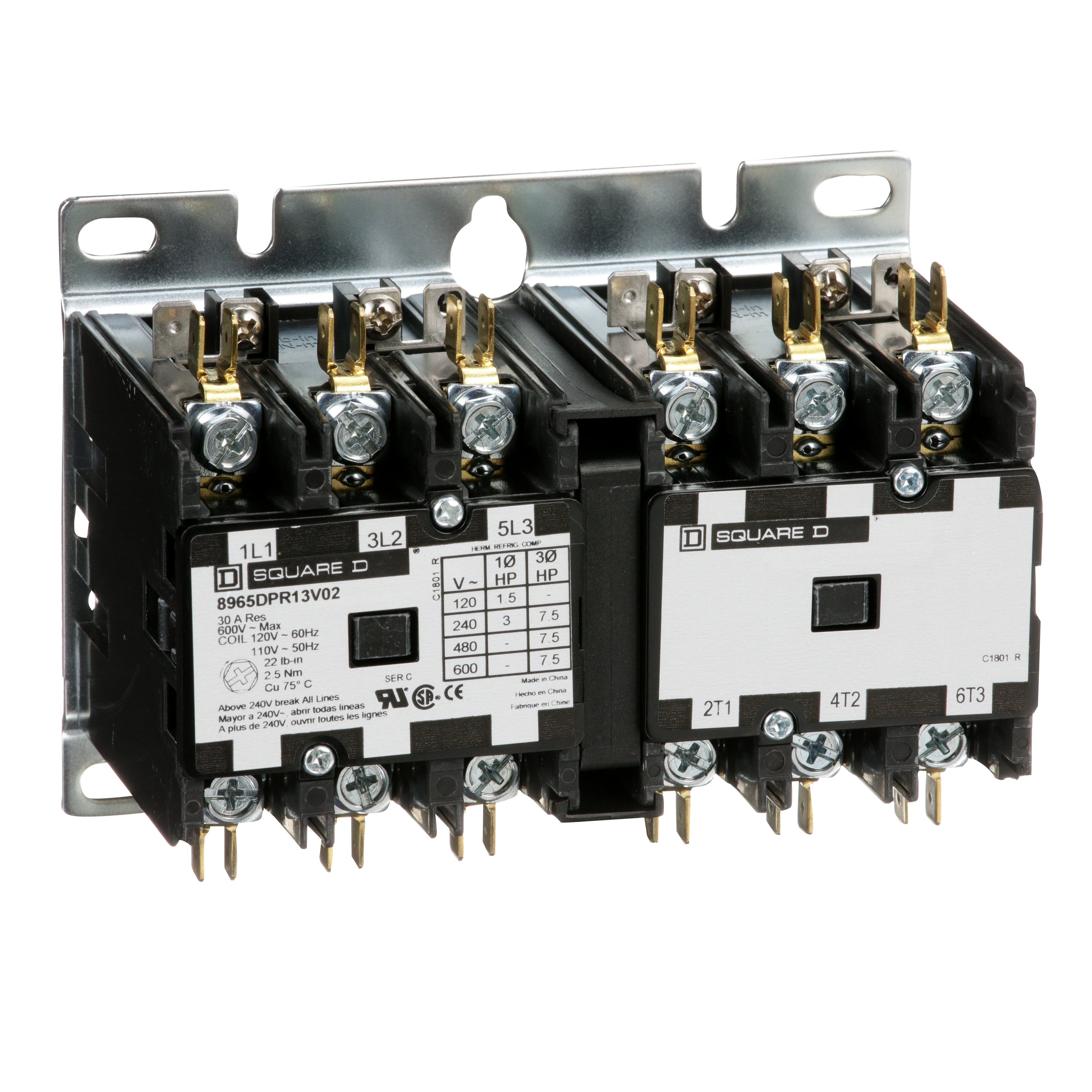

Square D™ 8965DPR13V02 HOIST CONTACTOR 60
SKU32028
MFGR #8965DPR13V02
Your Cost: $1,376.21/ea
Square D 8965DPR13V02 HOIST CONTACTOR 600VAC 20A DPR,120VAC60Hz - 110VAC50Hz,3-Phase,3-Pole,3P,Control of motors in hoists, overhead doors, small elevators, commercial laundry equipment and other related products.,DPR,Reversing Hoist Contactor,UL Component Recognized - CSA Certified
Square D 8965DPR13V02 HOIST CONTACTOR 600VAC 20A DPR,120VAC60Hz - 110VAC50Hz,3-Phase,3-Pole,3P,Control of motors in hoists, overhead doors, small elevators, commercial laundry equipment and other related products.,DPR,Reversing Hoist Contactor,UL Component Recognized - CSA Certified
Alternate Catalog Number 8965DPR13V02 Application CONTROL OF MOTORS IN HOISTS, OVERHEAD DOORS, SMALL ELEVATORS, COMMERCIAL LAUNDRY EQUIPMENT AND OTHER RELATED PRODUCTS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8965DPR13V02 Coil Power Rating 1 hp at 115 VAC 1 ph/2 hp at 230 VAC 1 ph/5 hp at 230 VAC 3 ph/7.5 hp at 460/575 VAC 3 ph Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC Contact Configuration 3NO Contact Rating 20 A Country of Origin CN Dimensions 6.03 in W x 2.98 in D x 3.73 in H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 201.29 Gross Volume per Pack Metric 3298.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.9000 lb Gross Weight per Pack Metric 1.32 Gross Weight UOM Metric kg Height 5.15 in Height [Metric] 13.2080 cm Item Group 21403 Length 7.83 in Length [Metric] 20.0660 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=564531&lang=en-us Maximum Load Current 20 A Number Of Poles 3 Phase 3-Phase Returnable N Series 8965 Size 3P Standard UL COMPONENT RECOGNIZED - CSA CERTIFIED Standards ARRA CompliantBAA CompliantCE CertifiedCSA File LR25490 Class 3211-04ECCN EAR99RoHS CompliantUL File E3190 CCN NLDX2PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Stock Status NONSTOCK Sub Brand DPR Substitute Product Catalog Number 9999DD01 Type Reversing Type DPR UNSPSC 39121529 UPC 11 78590108140 UPC 12 785901081401 Warranty Description Contractual Warranty:18 months Width 4.85 in Width [Metric] 12.4460 cm CONTROL OF MOTORS IN HOISTS, OVERHEAD DOORS, SMALL ELEVATORS, COMMERCIAL LAUNDRY EQUIPMENT AND OTHER RELATED PRODUCTS. 1-1 HP 115 V AC, 1 PHASE-2-2 HP 230 V AC, 1 PHASE-5-5 HP 230 V AC, 3 PHASE-7.5-7.5 HP 460 V AC, 3 PHASE-7.5-7.5 HP 575 V AC, 3 PHASE Designed to operate on line voltages of 85 % to 110 % of rated voltage Designed for applications at 50 or 60 Hz only Coils are easily replaced with external base removed Field-installable auxiliary contacts for flexibility Designed to accept one auxiliary contact module with up to two isolated circuits per side (two modules per device), when auxiliary contacts are ordered separately, two modules are normally used for each device, one for forward, one for reverse 600 VAC system voltage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8965DPR13V02 |
| Application | CONTROL OF MOTORS IN HOISTS, OVERHEAD DOORS, SMALL ELEVATORS, COMMERCIAL LAUNDRY EQUIPMENT AND OTHER RELATED PRODUCTS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8965DPR13V02 |
| Coil Power Rating | 1 hp at 115 VAC 1 ph/2 hp at 230 VAC 1 ph/5 hp at 230 VAC 3 ph/7.5 hp at 460/575 VAC 3 ph |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC |
| Contact Configuration | 3NO |
| Contact Rating | 20 A |
| Country of Origin | CN |
| Dimensions | 6.03 in W x 2.98 in D x 3.73 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 201.29 |
| Gross Volume per Pack Metric | 3298.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.9000 lb |
| Gross Weight per Pack Metric | 1.32 |
| Gross Weight UOM Metric | kg |
| Height | 5.15 in |
| Height [Metric] | 13.2080 cm |
| Item Group | 21403 |
| Length | 7.83 in |
| Length [Metric] | 20.0660 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=564531&lang=en-us |
| Maximum Load Current | 20 A |
| Number Of Poles | 3 |
| Phase | 3-Phase |
| Returnable | N |
| Series | 8965 |
| Size | 3P |
| Standard | UL COMPONENT RECOGNIZED - CSA CERTIFIED |
| Standards | ARRA CompliantBAA CompliantCE CertifiedCSA File LR25490 Class 3211-04ECCN EAR99RoHS CompliantUL File E3190 CCN NLDX2PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | DPR |
| Substitute Product Catalog Number | 9999DD01 |
| Type | Reversing Type DPR |
| UNSPSC | 39121529 |
| UPC 11 | 78590108140 |
| UPC 12 | 785901081401 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.85 in |
| Width [Metric] | 12.4460 cm |
| CONTROL OF MOTORS IN HOISTS, OVERHEAD DOORS, SMALL ELEVATORS, COMMERCIAL LAUNDRY EQUIPMENT AND OTHER RELATED PRODUCTS. |
| 1-1 HP 115 V AC, 1 PHASE-2-2 HP 230 V AC, 1 PHASE-5-5 HP 230 V AC, 3 PHASE-7.5-7.5 HP 460 V AC, 3 PHASE-7.5-7.5 HP 575 V AC, 3 PHASE |
| Designed to operate on line voltages of 85 % to 110 % of rated voltage |
| Designed for applications at 50 or 60 Hz only |
| Coils are easily replaced with external base removed |
| Field-installable auxiliary contacts for flexibility |
| Designed to accept one auxiliary contact module with up to two isolated circuits per side (two modules per device), when auxiliary contacts are ordered separately, two modules are normally used for each device, one for forward, one for reverse |
| 600 VAC system voltage |
