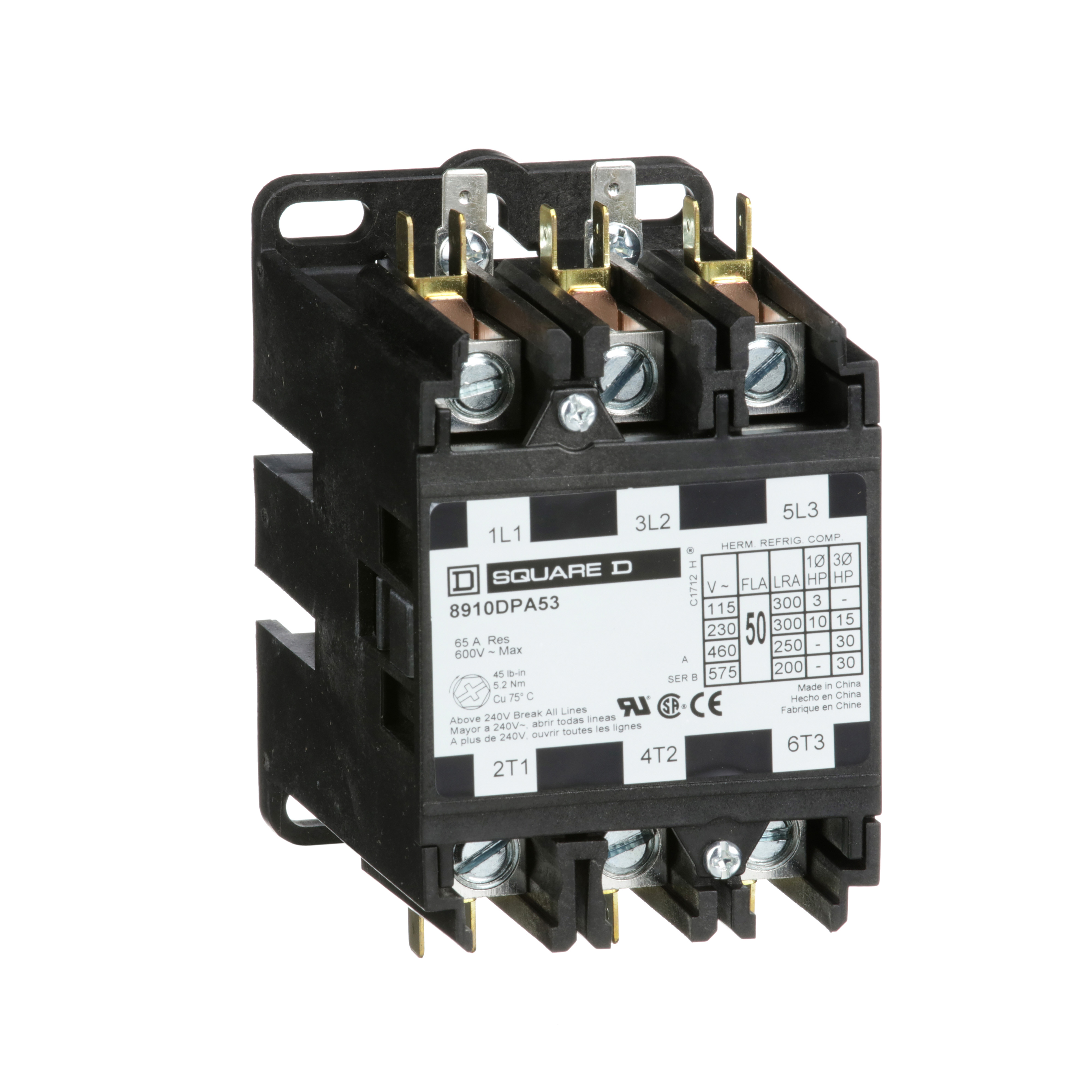

Square D™ 8910DPA53V06 Definite Purpose Contactor, 600 VAC Coil, 50 A Max Load, 3NO, 3 Poles
Definite Purpose Contactors AC
280122
MFG #: 8910DPA53V06
Square D™
224.00000
/ ea
Square D 8910DPA53V06 CONTACTOR 600VAC 50AMP DPA +OPTIONS,3 NO,3-Phase,3P,440 V AC 50 Hz-480 V AC 60 Hz,DPA,Definite Purpose Contactor,Ideal for heating, air conditioning, refrigeration, data processing and food service equipment.,Panel,Quick Connect/Binder Head Screw,UL Recognized - CSA Certified - CE Marked
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8009439360Den&ext=webp(360 Degree View URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Full Eng Drawing URL - Square_D_8910DPA52V02_Technical_Drawing.pdf(Full Eng Drawing URL)
- Install Instructions 1 URL - 11003_NDHKIZGT5CUEQYXA.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Schneider_Electric_8910DPA53V06_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_ST37G068QAH1YUJO.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_5RTS4B9K1EONCJVY.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_ZXLPI8BAEHOY7W1C.dwg(Tech Drawing URL)
- Applications
- Features
| IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. |
| 3-3 HP 115 V AC, 1 PHASE-10-10 HP 230 V AC, 1 PHASE-15-15 HP 230 V AC, 3 PHASE-30-30 HP 460 V AC, 3 PHASE-30-30 HP 575 V AC, 3 PHASE |
| 250 A 460 VAC, 200 A 575 VAC, 300 A 277 VAC locked rotor rated current |
| 3 hp 115 VAC, 10 hp 230 VAC 1-phase, 15 hp 230 VAC, 30 hp 460 VAC, 30 hp 575 VAC 3-phase motor power |
| Quick connect terminals, box lugs electrical connection, 3-phase |
| 3 hp 115 VAC, 10 hp 230 VAC (1-phase), 15 hp 230 VAC, 30 hp 460 VAC, 30 hp 575 VAC (3-phase) motor power |
