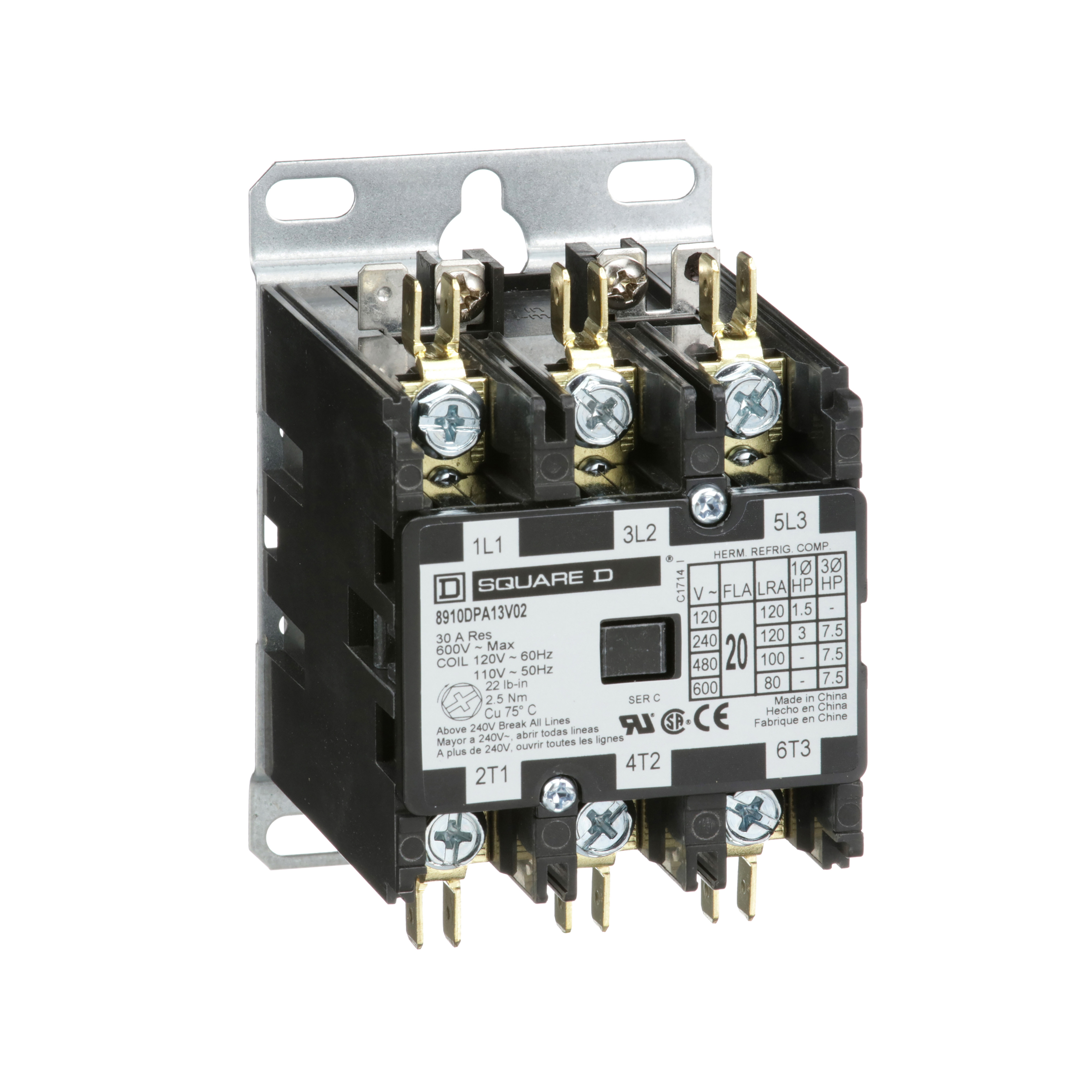

Square D™ 8910DPA13V02 8910DPA Electro-Mechanical Definite Purpose Contactor, 110/120 VAC Coil, 20 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Square D™ 8910DPA13V02 8910DPA Electro-Mechanical Definite Purpose Contactor, 110/120 VAC Coil, 20 A Max Load, 3NO, 3 Poles
SKU31997
MFGR #8910DPA13V02
Your Cost: $96.66/ea
Square D 8910DPA13V02 CONTACTOR 600VAC 20AMP DPA +OPTIONS,110 V AC 50 Hz-120 V AC 60 Hz,3 NO,3-Phase,3P,DPA,Definite Purpose Contactor,Ideal for heating, air conditioning, refrigeration, data processing and food service equipment.,Panel,Quick Connect/Binder Head Screw,UL Recognized - CSA Certified - CE Marked
Square D 8910DPA13V02 CONTACTOR 600VAC 20AMP DPA +OPTIONS,110 V AC 50 Hz-120 V AC 60 Hz,3 NO,3-Phase,3P,DPA,Definite Purpose Contactor,Ideal for heating, air conditioning, refrigeration, data processing and food service equipment.,Panel,Quick Connect/Binder Head Screw,UL Recognized - CSA Certified - CE Marked
Alternate Catalog Number 8910DPA13V02 Application IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8910DPA13V02 Coil Voltage 110/120 VAC Connection QUICK CONNECT TERMINALS-BINDER HEAD Connection Type Quick-Connect/Binding Head Screw Contact Configuration 3NO Contact Rating 20 A Contact Type Non-Reversing Country of Origin CN Depth 2.9 in Dimensions 60.2 mm H x 76 mm W x 82.5 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 34.11 Gross Volume per Pack Metric 559.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.0700 lb Gross Weight per Pack Metric 485.34 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 2.58 in Height [Metric] 6.6040 cm Item Group 21341 Length 4.06 in Length [Metric] 10.4140 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559299&lang=en-us Maximum Load Current 20 A Mounting Panel Mounting Type Panel Number Of Poles 3 Operating Cycles 500000 Cycles Operating Temperature 0 to 65 Phase 3 Returnable N Series 8910DPA Size 3P Standard UL RECOGNIZED-CSA Standards UL E3190CCN NLDX2 ListedCSA LR25490 CertifiedClass 3211 04CE Certified Stock Status NORMALLY STOCKED Sub Brand DPA Terminal Type Binding Head Screw/Quick-Connect Type Electro-Mechanical UNSPSC 39121529 UPC 11 78590108014 UPC 12 785901080145 Warranty Description Contractual Warranty:18 months Width 3.17 in Width [Metric] 8.1280 cm IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. 1.5-1.5 HP 115 V AC, 1 PHASE-3-3 HP 230 V AC, 1 PHASE-7.5-7.5 HP 230 V AC, 3 PHASE-7.5-7.5 HP 460 V AC, 3 PHASE-7.5-7.5 HP 575 V AC, 3 PHASE Quick connect terminals and binder head screws allow for easy wiring An exclusive DIN track mounting option may reduce installation costs Coils can be changed quickly, without a tool, on the type DPA, 50 - 90 A contactors Auxiliary contact modules snap on either side of the type DPA contactors Box lugs are standard on contactors 40 A and larger
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8910DPA13V02 |
| Application | IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8910DPA13V02 |
| Coil Voltage | 110/120 VAC |
| Connection | QUICK CONNECT TERMINALS-BINDER HEAD |
| Connection Type | Quick-Connect/Binding Head Screw |
| Contact Configuration | 3NO |
| Contact Rating | 20 A |
| Contact Type | Non-Reversing |
| Country of Origin | CN |
| Depth | 2.9 in |
| Dimensions | 60.2 mm H x 76 mm W x 82.5 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 34.11 |
| Gross Volume per Pack Metric | 559.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.0700 lb |
| Gross Weight per Pack Metric | 485.34 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 2.58 in |
| Height [Metric] | 6.6040 cm |
| Item Group | 21341 |
| Length | 4.06 in |
| Length [Metric] | 10.4140 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559299&lang=en-us |
| Maximum Load Current | 20 A |
| Mounting | Panel |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Operating Cycles | 500000 Cycles |
| Operating Temperature | 0 to 65 |
| Phase | 3 |
| Returnable | N |
| Series | 8910DPA |
| Size | 3P |
| Standard | UL RECOGNIZED-CSA |
| Standards | UL E3190CCN NLDX2 ListedCSA LR25490 CertifiedClass 3211 04CE Certified |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | DPA |
| Terminal Type | Binding Head Screw/Quick-Connect |
| Type | Electro-Mechanical |
| UNSPSC | 39121529 |
| UPC 11 | 78590108014 |
| UPC 12 | 785901080145 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.17 in |
| Width [Metric] | 8.1280 cm |
| IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. |
| 1.5-1.5 HP 115 V AC, 1 PHASE-3-3 HP 230 V AC, 1 PHASE-7.5-7.5 HP 230 V AC, 3 PHASE-7.5-7.5 HP 460 V AC, 3 PHASE-7.5-7.5 HP 575 V AC, 3 PHASE |
| Quick connect terminals and binder head screws allow for easy wiring |
| An exclusive DIN track mounting option may reduce installation costs |
| Coils can be changed quickly, without a tool, on the type DPA, 50 - 90 A contactors |
| Auxiliary contact modules snap on either side of the type DPA contactors |
| Box lugs are standard on contactors 40 A and larger |
