Square D™

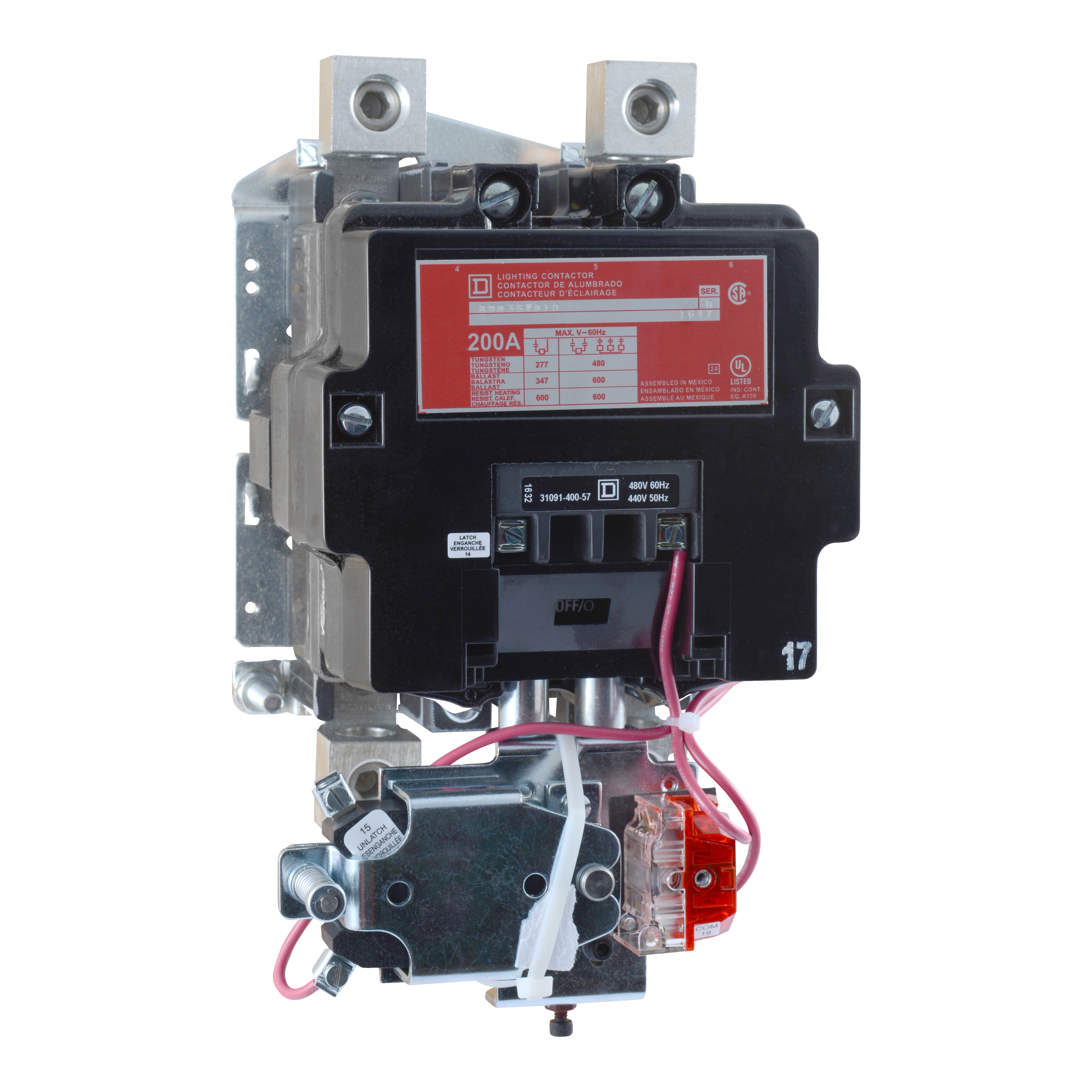

Square D™ 8903SVO11V02 LIGHTING CONTACTOR
Custom_Product_Images_Illustration
Square D™
Square D™ 8903SVO11V02 LIGHTING CONTACTOR
SKU326823
MFGR #8903SVO11V02
Your Cost: $4,570.44/ea
List: Square D 8903SVO11V02 LIGHTING CONTACTOR 600VAC 200A NEMA,120Vac60Hz - 110Vac50Hz,200A,3-Pole,3P,8903S,Box Lug,Lighting Contactor,Mechanically Held Lighting Contactor,UL Listed - CSA Certified,no indicator
Square D 8903SVO11V02 LIGHTING CONTACTOR 600VAC 200A NEMA,120Vac60Hz - 110Vac50Hz,200A,3-Pole,3P,8903S,Box Lug,Lighting Contactor,Mechanically Held Lighting Contactor,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903SVO11V02 Application MECHANICALLY HELD LIGHTING CONTACTOR ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903SVO11V02 Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC Connection Box lug Connection Type Box Lug Contact Configuration 3-POLE Contact Rating 200 A Country of Origin US Currency USD Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 23.3200 lb Gross Weight per Pack Metric 10.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 24.8920 in Height [Metric] 24.6380 cm Indicator No indicator Item Group 21324 Length 45.4660 in Length [Metric] 45.2120 cm Manufacturer Schneider Electric Mounting Type Surface Number Of Poles 3 Operating Cycles 1000 cpm Operating Temperature 0 to 40 Returnable Y Series 8903 Size 3P in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand 8903S Terminal Type Screw/Clamp Type Mechanically Held Type S UNSPSC 39121529 UPC 11 78590110250 UPC 12 785901102502 Warranty Description Contractual Warranty:18 months Wattage 69.2 kW at 200 V/79.6 kW at 230 V/131.6 kW at 380 V/159.3 kW at 460 V/199 kW at 575 V Width 34.7980 in Width [Metric] 34.7980 cm MECHANICALLY HELD LIGHTING CONTACTOR COMMON CONTROL CIRCUIT,NONE Factory wired controls and clearly marked termination points 600 VAC system voltage Lug connection Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903SVO11V02 |
| Application | MECHANICALLY HELD LIGHTING CONTACTOR |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903SVO11V02 |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC |
| Connection | Box lug |
| Connection Type | Box Lug |
| Contact Configuration | 3-POLE |
| Contact Rating | 200 A |
| Country of Origin | US |
| Currency | USD |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 23.3200 lb |
| Gross Weight per Pack Metric | 10.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 24.8920 in |
| Height [Metric] | 24.6380 cm |
| Indicator | No indicator |
| Item Group | 21324 |
| Length | 45.4660 in |
| Length [Metric] | 45.2120 cm |
| Manufacturer | Schneider Electric |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Cycles | 1000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | Y |
| Series | 8903 |
| Size | 3P in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | 8903S |
| Terminal Type | Screw/Clamp |
| Type | Mechanically Held Type S |
| UNSPSC | 39121529 |
| UPC 11 | 78590110250 |
| UPC 12 | 785901102502 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 69.2 kW at 200 V/79.6 kW at 230 V/131.6 kW at 380 V/159.3 kW at 460 V/199 kW at 575 V |
| Width | 34.7980 in |
| Width [Metric] | 34.7980 cm |
| MECHANICALLY HELD LIGHTING CONTACTOR |
| COMMON CONTROL CIRCUIT,NONE |
| Factory wired controls and clearly marked termination points |
| 600 VAC system voltage |
| Lug connection |
| Without indicator |
