Square D™

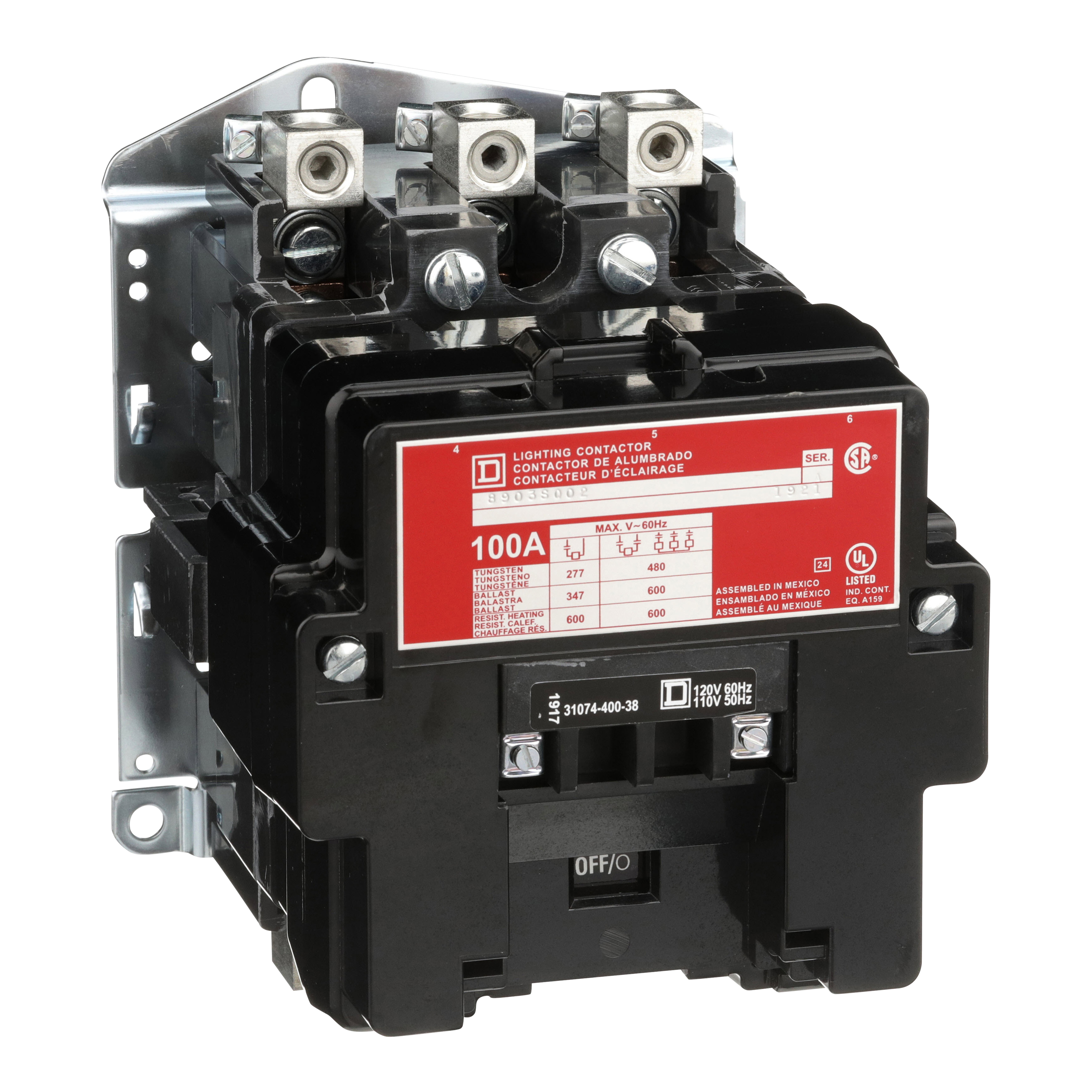

Square D™ 8903SQO2V03 LIGHTING CONTACTOR
Square D™
Square D™ 8903SQO2V03 LIGHTING CONTACTOR
SKU966572
MFGR #8903SQO2V03
Your Cost: $1,703.74/ea
Square D 8903SQO2V03 LIGHTING CONTACTOR 600VAC 100A NEMA,100 A,240Vac60Hz - 220Vac50Hz,3-Pole,3P,8903S,Box Lug,Electrically Held,Lighting Contactor,UL Listed - CSA Certified,no indicator
Square D 8903SQO2V03 LIGHTING CONTACTOR 600VAC 100A NEMA,100 A,240Vac60Hz - 220Vac50Hz,3-Pole,3P,8903S,Box Lug,Electrically Held,Lighting Contactor,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903SQO2V03 Application ELECTRICALLY HELD ARRA Compliant N Buy American Compliant N Catalog Number 8903SQO2V03 Connection Box lug Connection Type Box Lug Contact Rating 100 A Country of Origin MX Currency USD Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 11.9700 lb Gross Weight per Pack Metric 5.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 17.7800 in Height [Metric] 17.7800 cm Indicator No indicator Item Group 21325 Length 35.5600 in Length [Metric] 35.5600 cm Mounting Type Surface Number Of Poles 3 Operating Cycles 3000 cpm Operating Temperature 0 to 40 Returnable N Series 8903 Size 3P in Standard UL LISTED - CSA CERTIFIED Sub Brand 8903S Substitute Product Catalog Number 9999SX6 Terminal Type Screw/Clamp UNSPSC 39121529 UPC 11 78590134148 UPC 12 785901341482 Warranty Description Contractual Warranty:18 months Wattage 34.6 kW at 200 V/39.8 kW at 230 V/65.8 kW at 380 V/79.8 kW at 460 V/99 kW at 575 V Width 21.5900 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 220 VAC at 50 Hz to 240 VAC at 60 Hz V Contact Configuration 3-POLE Type Electrically Held Type S ELECTRICALLY HELD COMMON CONTROL CIRCUIT,NONE Factory wired controls and clearly marked termination points 600 VAC system voltage Lug connection Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903SQO2V03 |
| Application | ELECTRICALLY HELD |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 8903SQO2V03 |
| Connection | Box lug |
| Connection Type | Box Lug |
| Contact Rating | 100 A |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 11.9700 lb |
| Gross Weight per Pack Metric | 5.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 17.7800 in |
| Height [Metric] | 17.7800 cm |
| Indicator | No indicator |
| Item Group | 21325 |
| Length | 35.5600 in |
| Length [Metric] | 35.5600 cm |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Cycles | 3000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 3P in |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | 8903S |
| Substitute Product Catalog Number | 9999SX6 |
| Terminal Type | Screw/Clamp |
| UNSPSC | 39121529 |
| UPC 11 | 78590134148 |
| UPC 12 | 785901341482 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 34.6 kW at 200 V/39.8 kW at 230 V/65.8 kW at 380 V/79.8 kW at 460 V/99 kW at 575 V |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 220 VAC at 50 Hz to 240 VAC at 60 Hz V |
| Contact Configuration | 3-POLE |
| Type | Electrically Held Type S |
| ELECTRICALLY HELD |
| COMMON CONTROL CIRCUIT,NONE |
| Factory wired controls and clearly marked termination points |
| 600 VAC system voltage |
| Lug connection |
| Without indicator |
