Square D™

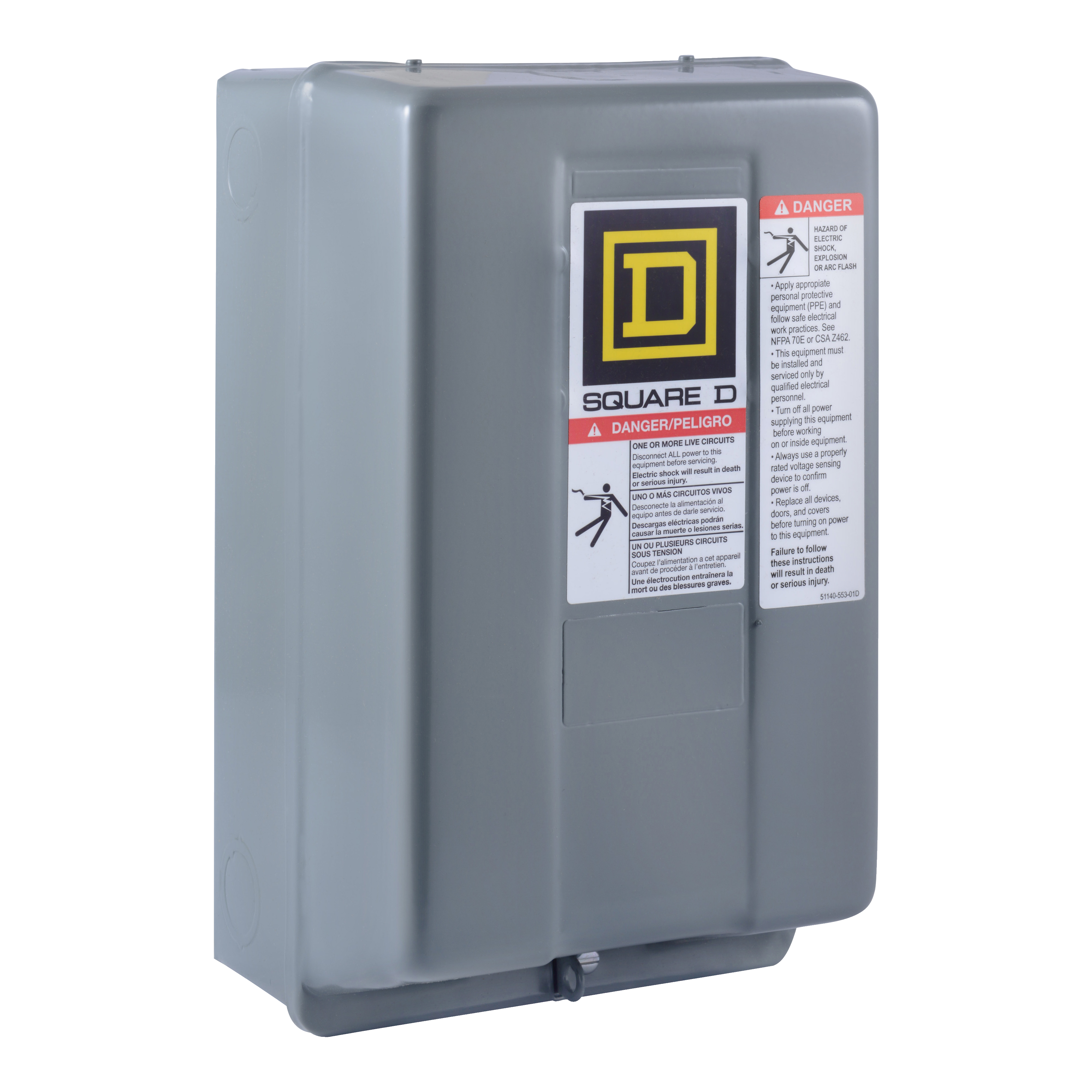

Square D™ 8903SMG3V02 LIGHTING CONTACTOR
Square D™
Square D™ 8903SMG3V02 LIGHTING CONTACTOR
SKU99062
MFGR #8903SMG3V02
Your Cost: $593.21/ea
List: Square D 8903SMG3V02 LIGHTING CONTACTOR 600VAC 30A NEMA,120Vac60Hz - 110Vac50Hz,30 A,4-Pole,4P,8903S,Electrically Held,Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903SMG3V02 LIGHTING CONTACTOR 600VAC 30A NEMA,120Vac60Hz - 110Vac50Hz,30 A,4-Pole,4P,8903S,Electrically Held,Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903SMG3V02 Application ELECTRICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903SMG3V02 Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC Connection Screw Clamp Contact Configuration 4-POLE Contact Rating 30 A Country of Origin MX Currency USD Enclosure Type NEMA 1 EU RoHS Indicator Y Finish Painted Frequency Rating 50/60 Hz Gross Volume Per Pack 767.23 Gross Volume per Pack Metric 12572.63 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.3000 lb Gross Weight per Pack Metric 3.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 15.2400 in Height [Metric] 15.2400 cm Indicator No indicator Item Group 21325 Length 29.4640 in Length [Metric] 29.4640 cm Manufacturer Schneider Electric Material Sheet Steel Mounting Type Surface Number Of Poles 4 Operating Cycles 10000 cpm Operating Temperature 0 to 40 Returnable N Series 8903 Size 4P in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand 8903S Substitute Product Catalog Number 9999SC2 Terminal Type Screw/Clamp Type Electrically Held Type S UNSPSC 39121529 UPC 11 78590161954 UPC 12 785901619543 Warranty Description Contractual Warranty:18 months Wattage 10.3 kW at 200 V/11.9 kW at 230 V/19.7 kW at 380 V/23.9 kW at 460 V/30 kW at 575 V Width 16.2560 in Width [Metric] 16.2560 cm ELECTRICALLY HELD COMMON CONTROL CIRCUIT,NONE Factory wired controls and clearly marked termination points NEMA 1 general purpose enclosure 600 VAC system voltage Lug connection Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903SMG3V02 |
| Application | ELECTRICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903SMG3V02 |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC |
| Connection | Screw Clamp |
| Contact Configuration | 4-POLE |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 767.23 |
| Gross Volume per Pack Metric | 12572.63 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.3000 lb |
| Gross Weight per Pack Metric | 3.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 15.2400 in |
| Height [Metric] | 15.2400 cm |
| Indicator | No indicator |
| Item Group | 21325 |
| Length | 29.4640 in |
| Length [Metric] | 29.4640 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Mounting Type | Surface |
| Number Of Poles | 4 |
| Operating Cycles | 10000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 4P in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | 8903S |
| Substitute Product Catalog Number | 9999SC2 |
| Terminal Type | Screw/Clamp |
| Type | Electrically Held Type S |
| UNSPSC | 39121529 |
| UPC 11 | 78590161954 |
| UPC 12 | 785901619543 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 10.3 kW at 200 V/11.9 kW at 230 V/19.7 kW at 380 V/23.9 kW at 460 V/30 kW at 575 V |
| Width | 16.2560 in |
| Width [Metric] | 16.2560 cm |
| ELECTRICALLY HELD |
| COMMON CONTROL CIRCUIT,NONE |
| Factory wired controls and clearly marked termination points |
| NEMA 1 general purpose enclosure |
| 600 VAC system voltage |
| Lug connection |
| Without indicator |
