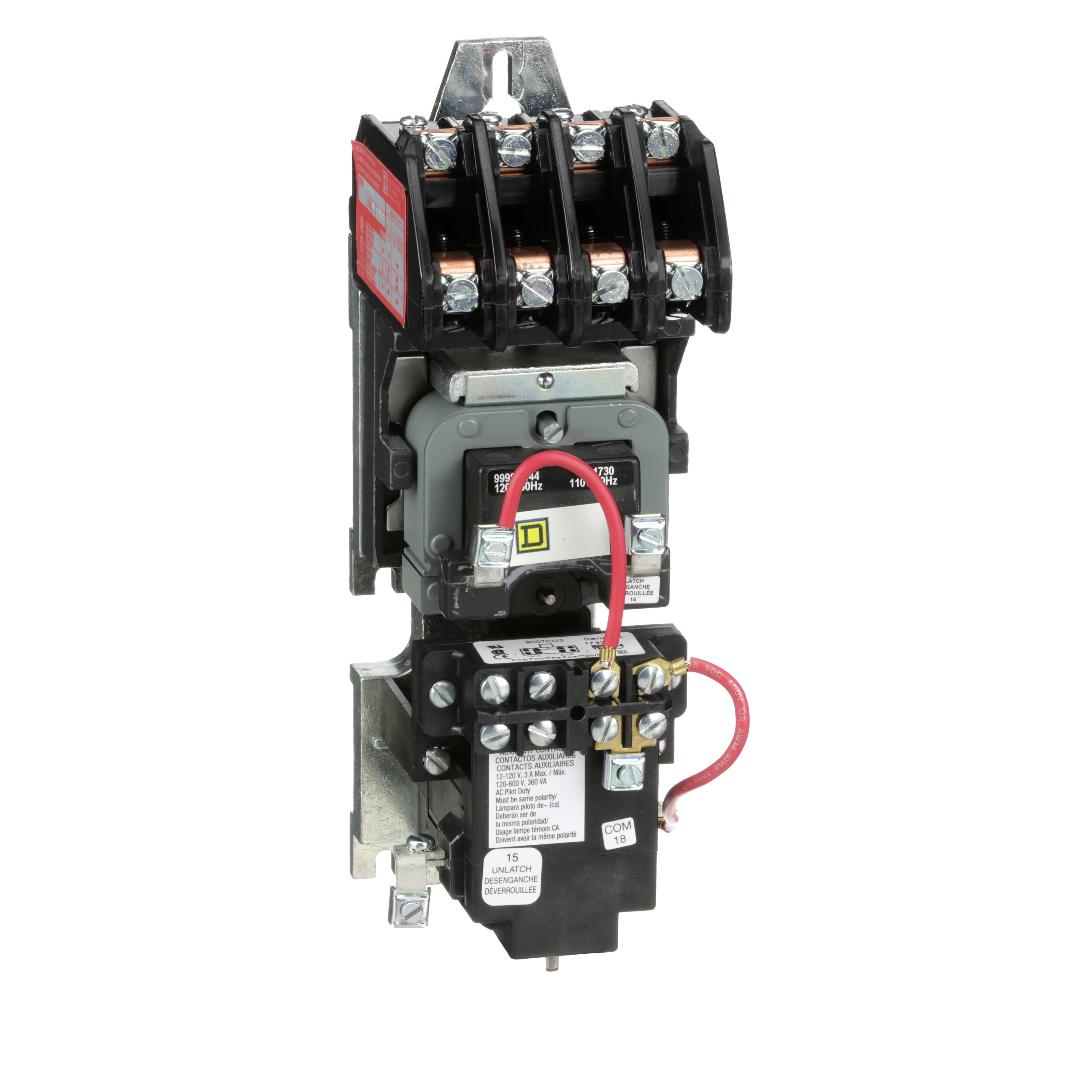

Square D™ 8903LXO40V02 LIGHTING CONTACTOR
Custom_Product_Images_Illustration
Square D™
Square D™ 8903LXO40V02 LIGHTING CONTACTOR
SKU31857
MFGR #8903LXO40V02
Your Cost: $606.33/ea
List: Square D 8903LXO40V02 LIGHTING CONTACTOR 600VAC 30AMP LX,120 V AC 60 Hz-110 V AC 50 Hz,4 NO,8903LX,Mechanically Held,Mechanically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903LXO40V02 LIGHTING CONTACTOR 600VAC 30AMP LX,120 V AC 60 Hz-110 V AC 50 Hz,4 NO,8903LX,Mechanically Held,Mechanically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903LXO40V02 Application MECHANICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903LXO40V02 Coil Power Rating 50 HZ- 60 HZ Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC Connection SCREW-CLAMP TERMINALS Contact Configuration 4NO Contact Rating 30 A Country of Origin MX Currency USD Dimensions 2.87 in W x 3.27 in D x 8.82 in H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 337.26 Gross Volume per Pack Metric 5526.68 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.5400 lb Gross Weight per Pack Metric 2.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 11.4000 in Height [Metric] 11.4000 cm Indicator No indicator Item Group 21322 Length 26.7000 in Length [Metric] 26.7000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552107&lang=en-us Number Of Poles 4 Operating Cycles 1000 cpm Operating Temperature 0 to 40 Returnable Y Series 8903 Size 224 MM,73 MM,83 MM in Standard UL LISTED-CSA Stock Status NONSTOCK Sub Brand 8903LX Substitute Product Catalog Number 8903L1R Terminal Type Screw/Clamp Type Mechanically Held Type LX UNSPSC 39121529 UPC 11 78590105732 UPC 12 785901057321 Warranty Description Contractual Warranty:18 months Wattage 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Width 18.8000 in Width [Metric] 18.8000 cm MECHANICALLY HELD NONE,SEPARATE CONTROL CIRCUIT Multipole Lighting Contactors For 30A Fluorescent or 20A tungsten lighting loads Mechanically held or electrically held 2-12 Pole versions Field-convertible contacts with NO and NC indicators Replaceable coil and contacts UL and CSA approvals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903LXO40V02 |
| Application | MECHANICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903LXO40V02 |
| Coil Power Rating | 50 HZ- 60 HZ |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC |
| Connection | SCREW-CLAMP TERMINALS |
| Contact Configuration | 4NO |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in W x 3.27 in D x 8.82 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 337.26 |
| Gross Volume per Pack Metric | 5526.68 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.5400 lb |
| Gross Weight per Pack Metric | 2.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 11.4000 in |
| Height [Metric] | 11.4000 cm |
| Indicator | No indicator |
| Item Group | 21322 |
| Length | 26.7000 in |
| Length [Metric] | 26.7000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552107&lang=en-us |
| Number Of Poles | 4 |
| Operating Cycles | 1000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | Y |
| Series | 8903 |
| Size | 224 MM,73 MM,83 MM in |
| Standard | UL LISTED-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | 8903LX |
| Substitute Product Catalog Number | 8903L1R |
| Terminal Type | Screw/Clamp |
| Type | Mechanically Held Type LX |
| UNSPSC | 39121529 |
| UPC 11 | 78590105732 |
| UPC 12 | 785901057321 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
| Width | 18.8000 in |
| Width [Metric] | 18.8000 cm |
| MECHANICALLY HELD |
| NONE,SEPARATE CONTROL CIRCUIT |
| Multipole Lighting Contactors |
| For 30A Fluorescent or 20A tungsten lighting loads |
| Mechanically held or electrically held |
| 2-12 Pole versions |
| Field-convertible contacts with NO and NC indicators |
| Replaceable coil and contacts |
| UL and CSA approvals |
