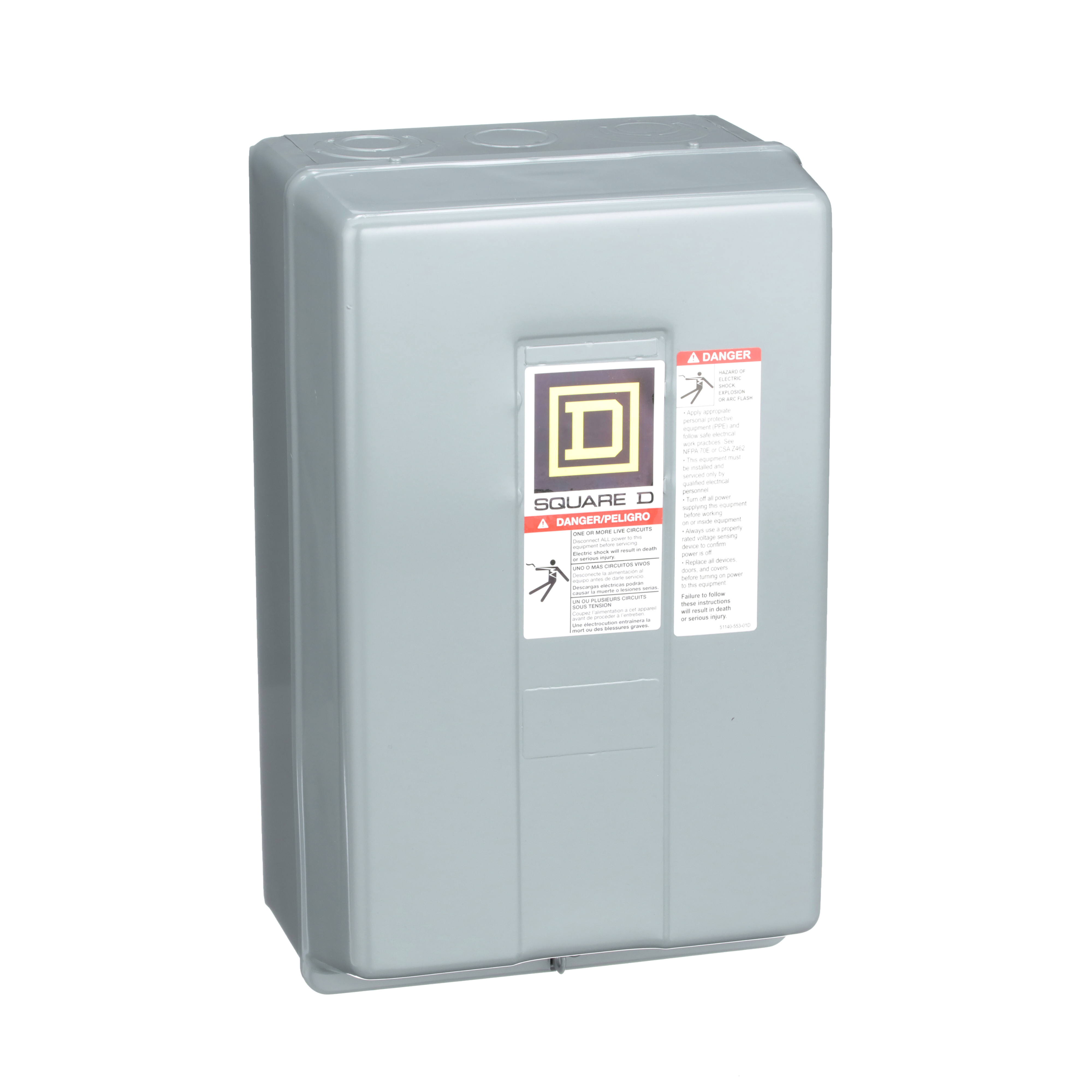

Square D™ 8903LXG40V04 LIGHTING CONTACTOR
SKU165347
MFGR #8903LXG40V04
Your Cost: $713.17/ea
List: Square D 8903LXG40V04 LIGHTING CONTACTOR 600VAC 30A LX,277Vac60Hz,30 A,4 NO,4P,8903LX,Mechanically Held,Multipole Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903LXG40V04 LIGHTING CONTACTOR 600VAC 30A LX,277Vac60Hz,30 A,4 NO,4P,8903LX,Mechanically Held,Multipole Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903LXG40V04 Application MECHANICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903LXG40V04 Coil Power Rating 60 HZ Coil Voltage 277 VAC at 60 Hz V Connection Screw Clamp Connection Type Screw Clamp Contact Configuration 4NO Contact Rating 30 A Country of Origin MX Currency USD Dimensions 7.8 in W x 6.02 in D x 12.68 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Finish Painted Frequency Rating 50/60 Hz Gross Volume Per Pack 788.84 Gross Volume per Pack Metric 12926.72 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 10.7600 lb Gross Weight per Pack Metric 4.88 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 18.7960 in Height [Metric] 18.7960 cm Indicator No indicator Item Group 21322 Length 33.2740 in Length [Metric] 33.2740 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=551161&lang=en-us Mounting Type Surface Number Of Poles 4 Operating Cycles 1000 cpm Operating Temperature 0 to 40 Returnable Y Series 8903 Size 4P in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand 8903LX Terminal Type Screw/Clamp Type Mechanically Held Type LX UNSPSC 39121529 UPC 11 78590105735 UPC 12 785901057352 Warranty Description Contractual Warranty:18 months Wattage 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Width 21.0820 in Width [Metric] 21.0820 cm MECHANICALLY HELD NONE,SEPARATE CONTROL CIRCUIT 30 A ballast lighting rating, 20 A tungsten lighting rating Silver-cadmium-oxide double break contacts NEMA 1 general purpose enclosure 600 VAC system voltage Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903LXG40V04 |
| Application | MECHANICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903LXG40V04 |
| Coil Power Rating | 60 HZ |
| Coil Voltage | 277 VAC at 60 Hz V |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Contact Configuration | 4NO |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.8 in W x 6.02 in D x 12.68 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 788.84 |
| Gross Volume per Pack Metric | 12926.72 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 10.7600 lb |
| Gross Weight per Pack Metric | 4.88 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 18.7960 in |
| Height [Metric] | 18.7960 cm |
| Indicator | No indicator |
| Item Group | 21322 |
| Length | 33.2740 in |
| Length [Metric] | 33.2740 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=551161&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 4 |
| Operating Cycles | 1000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | Y |
| Series | 8903 |
| Size | 4P in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | 8903LX |
| Terminal Type | Screw/Clamp |
| Type | Mechanically Held Type LX |
| UNSPSC | 39121529 |
| UPC 11 | 78590105735 |
| UPC 12 | 785901057352 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
| Width | 21.0820 in |
| Width [Metric] | 21.0820 cm |
| MECHANICALLY HELD |
| NONE,SEPARATE CONTROL CIRCUIT |
| 30 A ballast lighting rating, 20 A tungsten lighting rating |
| Silver-cadmium-oxide double break contacts |
| NEMA 1 general purpose enclosure |
| 600 VAC system voltage |
| Without indicator |
