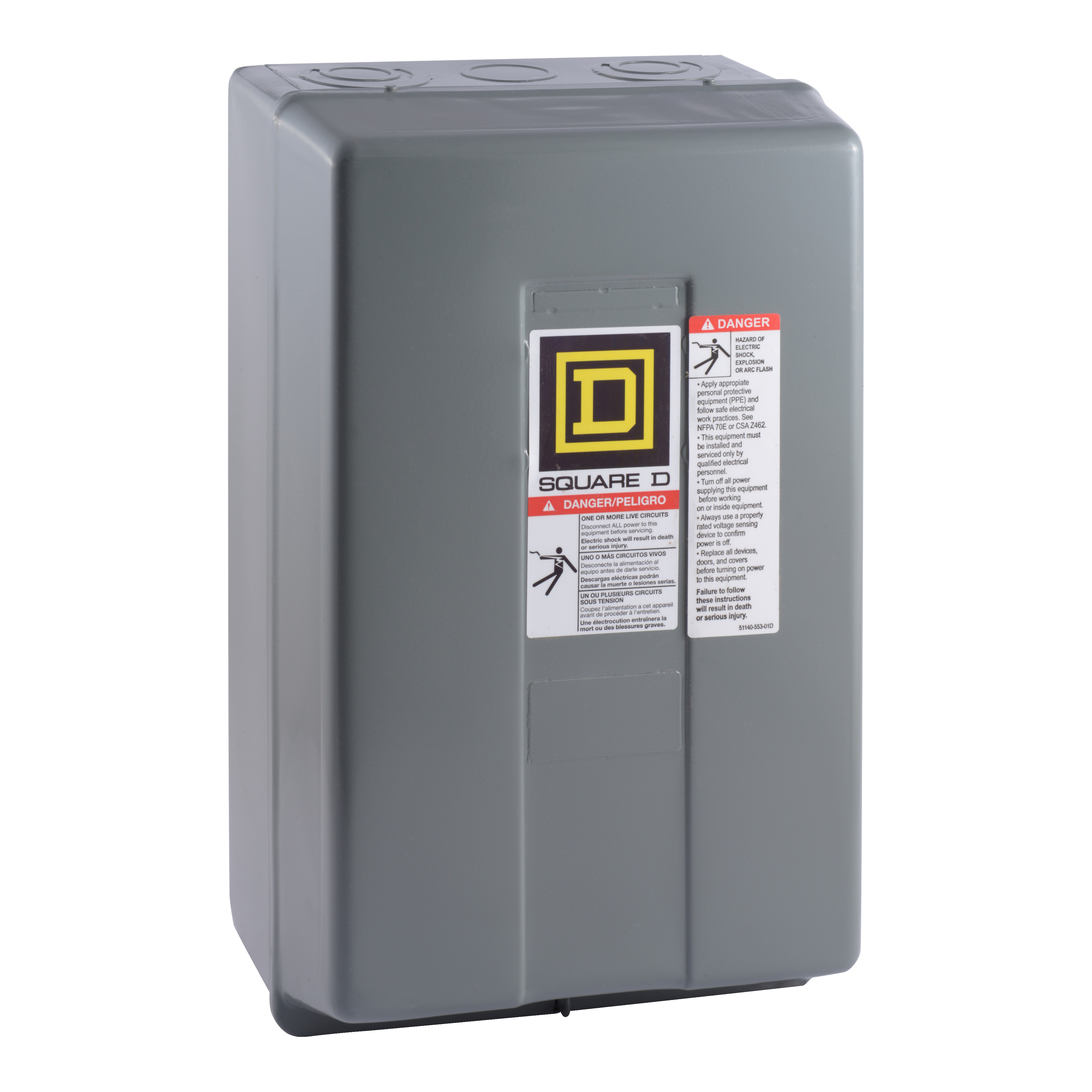

Square D™ 8903LG80V04 Lighting Contactor, 277 VAC Coil, 30 A Max Load, 8NO, 8 Poles
Custom_Product_Images_Illustration
Square D™ 8903LG80V04 Lighting Contactor, 277 VAC Coil, 30 A Max Load, 8NO, 8 Poles
SKU98459
MFGR #8903LG80V04
Your Cost: $1,087.09/ea
List: Square D 8903LG80V04 LIGHTING CONTACTOR 600VAC 30A L,277 V AC 60 Hz,8 NO,8903L,Electrically Held,Electrically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903LG80V04 LIGHTING CONTACTOR 600VAC 30A L,277 V AC 60 Hz,8 NO,8903L,Electrically Held,Electrically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903LG80V04 Application ELECTRICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903LG80V04 Coil Power Rating 35-35 VA 60 HZ Coil Voltage 277 VAC Connection SCREW-CLAMP TERMINALS Connection Type Screw Clamp Contact Configuration 8NO Contact Rating 600 VAC Country of Origin MX Currency USD Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 60 Hz Gross Volume Per Pack 810.16 Gross Volume per Pack Metric 13276.09 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 10.3200 lb Gross Weight per Pack Metric 4.68 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 19.3040 in Height [Metric] 19.3040 cm Indicator No indicator Item Group 21321 Length 33.0200 in Length [Metric] 33.0200 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=548611&lang=en-us Maximum Load Current 30 A Mounting Type Surface Number Of Poles 8 Returnable N Series 8903L Size 153 MM,198 MM,322 MM Standard UL LISTED-CSA Standards UL Listed, CSA Certified, RoHS Compliant Stock Status NONSTOCK Sub Brand 8903L Substitute Product Catalog Number 9999SP28R Type Electrically Held UNSPSC 39121529 UPC 11 78590145922 UPC 12 785901459224 Warranty Description Contractual Warranty:18 months Width 20.8280 in Width [Metric] 20.8280 cm ELECTRICALLY HELD SEPARATE CONTROL CIRCUIT Electrically held operational mode 20 A tungsten, 30 A fluorescent current rating Separate control circuit No control units NEMA 1 painted sheet steel surface 600 VAC voltage rating No indicator local signaling
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903LG80V04 |
| Application | ELECTRICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903LG80V04 |
| Coil Power Rating | 35-35 VA 60 HZ |
| Coil Voltage | 277 VAC |
| Connection | SCREW-CLAMP TERMINALS |
| Connection Type | Screw Clamp |
| Contact Configuration | 8NO |
| Contact Rating | 600 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 810.16 |
| Gross Volume per Pack Metric | 13276.09 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 10.3200 lb |
| Gross Weight per Pack Metric | 4.68 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 19.3040 in |
| Height [Metric] | 19.3040 cm |
| Indicator | No indicator |
| Item Group | 21321 |
| Length | 33.0200 in |
| Length [Metric] | 33.0200 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=548611&lang=en-us |
| Maximum Load Current | 30 A |
| Mounting Type | Surface |
| Number Of Poles | 8 |
| Returnable | N |
| Series | 8903L |
| Size | 153 MM,198 MM,322 MM |
| Standard | UL LISTED-CSA |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | 8903L |
| Substitute Product Catalog Number | 9999SP28R |
| Type | Electrically Held |
| UNSPSC | 39121529 |
| UPC 11 | 78590145922 |
| UPC 12 | 785901459224 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.8280 in |
| Width [Metric] | 20.8280 cm |
| ELECTRICALLY HELD |
| SEPARATE CONTROL CIRCUIT |
| Electrically held operational mode |
| 20 A tungsten, 30 A fluorescent current rating |
| Separate control circuit |
| No control units |
| NEMA 1 painted sheet steel surface |
| 600 VAC voltage rating |
| No indicator local signaling |
